What are Ceramic PCB Boards?

By Prototype PCB Assembly · Updated March 24, 2025

Table of Contents

1. Introduction to Ceramic PCBs
2. Composition of Ceramic PCBs
3. Manufacturing Process of Ceramic PCBs
4. Advantages of Ceramic PCBs
5. Applications of Ceramic PCBs
6. Comparing Ceramic PCBs with Traditional FR-4 PCBs
7. Challenges and Limitations of Ceramic PCBs
8. Future Trends in Ceramic PCB Technology
9. Frequently Asked Questions (FAQ)
10. Conclusion

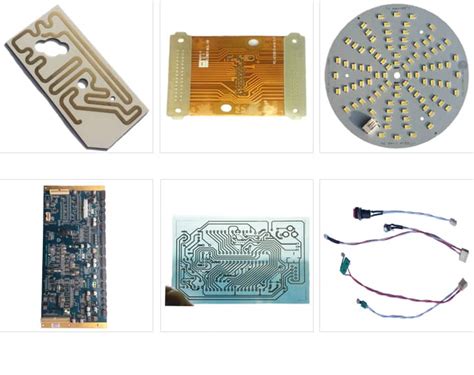

1. Introduction to Ceramic PCBs

Ceramic PCBs are a type of printed circuit board that uses ceramic materials as the base substrate. Unlike traditional PCBs that use FR-4 fiberglass, ceramic PCBs offer unique properties that make them suitable for applications requiring high performance, reliability, and durability. The use of ceramic materials allows these boards to operate in extreme conditions, such as high temperatures, high frequencies, and harsh environments.

1.1 Brief History of Ceramic PCBs

The development of ceramic PCBs can be traced back to the 1960s when the need for high-performance circuit boards arose in the aerospace and military industries. Initially, ceramic substrates were used in hybrid circuits, where they served as a base for thick-film and thin-film technologies. As the electronics industry evolved, the demand for more advanced and reliable PCBs grew, leading to the development of full-fledged ceramic PCBs.

1.2 The Importance of Ceramic PCBs in Modern Electronics

In today’s world, where electronics are becoming increasingly sophisticated and compact, ceramic PCBs play a crucial role in enabling the development of high-performance devices. Their ability to withstand extreme conditions and offer superior electrical properties makes them indispensable in various industries, such as:

• Aerospace and military: Ceramic PCBs are used in avionics, radar systems, and satellite communications, where reliability and performance are paramount.
• Automotive: With the growing trend of vehicle electrification, ceramic PCBs are used in power electronics, engine control units, and sensors, where they must endure high temperatures and vibrations.
• Telecommunications: Ceramic PCBs are essential in high-frequency applications, such as 5G networks, microwave devices, and satellite communications, due to their low dielectric loss and high thermal conductivity.

As technology continues to advance, the importance of ceramic PCBs is expected to grow, driving innovation and enabling the development of next-generation electronic devices.

2. Composition of Ceramic PCBs

Ceramic PCBs are composed of a ceramic substrate, conductive traces, and various components, such as resistors, capacitors, and integrated circuits. The choice of ceramic material and the arrangement of conductive traces determine the board’s electrical, thermal, and mechanical properties.

2.1 Ceramic Substrates

The most common ceramic materials used in PCBs are:

• Alumina (Al2O3): Known for its high thermal conductivity, excellent electrical insulation, and good mechanical strength, alumina is widely used in high-temperature and high-frequency applications.
• Aluminum Nitride (AlN): With a thermal conductivity close to that of metal, AlN is an ideal choice for high-power applications that require efficient heat dissipation.
• Beryllium Oxide (BeO): Despite its toxicity during manufacturing, BeO offers the highest thermal conductivity among ceramic substrates, making it suitable for extreme high-power applications.

2.2 Conductive Traces

Conductive traces on ceramic PCBs are typically made of high-purity metals, such as gold, silver, or copper. These metals are chosen for their excellent electrical conductivity and resistance to oxidation. The conductive traces are applied to the ceramic substrate using thick-film or thin-film techniques, depending on the desired feature size and performance requirements.

2.3 Additional Components

Ceramic PCBs can accommodate various components, including:

• Resistors: Thick-film resistors are screen-printed onto the ceramic substrate using resistive paste, while thin-film resistors are deposited using sputtering or evaporation techniques.
• Capacitors: Ceramic PCBs can incorporate surface-mounted ceramic capacitors or embedded capacitors within the substrate layers.
• Integrated Circuits: Both surface-mounted and wire-bonded ICs can be used on ceramic PCBs, depending on the packaging and interconnect requirements.

The combination of ceramic substrates, conductive traces, and additional components enables ceramic PCBs to offer superior performance and reliability compared to traditional FR-4 PCBs.

3. Manufacturing Process of Ceramic PCBs

The manufacturing process of ceramic PCBs differs from that of traditional FR-4 PCBs due to the unique properties of ceramic materials. The process involves several key steps, including substrate preparation, metallization, patterning, component assembly, and testing.

3.1 Substrate Preparation

The first step in manufacturing ceramic PCBs is preparing the ceramic substrate. The raw ceramic material, in the form of powder, is mixed with binders and solvents to create a slurry. The slurry is then cast into thin sheets using a tape casting process or pressed into a desired shape using a dry pressing method. The green ceramic sheets or pressed parts are then sintered at high temperatures (1,400-1,700°C) to densify the ceramic and give it its final mechanical and electrical properties.

3.2 Metallization

After the ceramic substrate is prepared, conductive traces are applied to its surface. There are two primary metallization techniques used in ceramic PCBs:

• Thick-film Metallization: In this process, a metal paste (usually containing silver, gold, or copper) is screen-printed onto the ceramic substrate. The paste is then fired at high temperatures (600-900°C) to sinter the metal particles and create a strong bond with the ceramic surface.
• Thin-film Metallization: This process involves depositing a thin layer of metal (typically gold, copper, or aluminum) onto the ceramic substrate using physical vapor deposition (PVD) techniques such as sputtering or evaporation. Thin-film metallization offers higher resolution and better control over the trace thickness compared to thick-film techniques.

3.3 Patterning

Once the metal layer is applied, it needs to be patterned into the desired circuit layout. This is typically done using photolithography, which involves the following steps:

1. The metallized ceramic substrate is coated with a photoresist material.
2. The photoresist is exposed to UV light through a photomask containing the circuit pattern.
3. The exposed photoresist is developed, revealing the desired pattern.
4. The exposed metal is etched away using chemical or plasma etching techniques.
5. The remaining photoresist is stripped off, leaving the patterned metal traces on the ceramic substrate.

3.4 Component Assembly

After the circuit pattern is formed, components such as resistors, capacitors, and integrated circuits are attached to the ceramic PCB. This can be done using various techniques, including:

• Surface Mounting: Components are placed on the surface of the ceramic PCB and attached using solder paste and reflow soldering.
• Wire Bonding: Integrated circuits are connected to the ceramic PCB using thin metal wires, which are bonded to the bond pads on the IC and the PCB using thermocompression or ultrasonic bonding.
• Flip Chip Bonding: In this technique, the IC is flipped upside down and connected directly to the PCB using conductive bumps, eliminating the need for wire bonding.

3.5 Testing and Inspection

Once the components are assembled, the ceramic PCB undergoes rigorous testing and inspection to ensure its functionality and reliability. This includes:

• Electrical Testing: The PCB is tested for continuity, insulation resistance, and other electrical parameters to ensure that the circuits are functioning as intended.
• Visual Inspection: The PCB is inspected under a microscope or using automated optical inspection (AOI) systems to check for defects such as short circuits, open circuits, or misaligned components.
• Environmental Testing: The PCB is subjected to various environmental stresses, such as high temperature, humidity, and vibration, to ensure that it can withstand the intended operating conditions.

The manufacturing process of ceramic PCBs requires specialized equipment and expertise due to the unique properties of ceramic materials and the high temperatures involved in the process. However, the resulting ceramic PCBs offer superior performance and reliability, making them ideal for demanding applications in harsh environments.

4. Advantages of Ceramic PCBs

Ceramic PCBs offer several advantages over traditional FR-4 PCBs, making them the preferred choice for high-performance applications. Some of the key advantages of ceramic PCBs include:

4.1 High-Temperature Resistance

One of the most significant advantages of ceramic PCBs is their ability to withstand high temperatures. Ceramic materials, such as alumina and aluminum nitride, have melting points well above 2,000°C, allowing them to maintain their structural integrity and electrical properties at temperatures that would cause traditional FR-4 PCBs to fail. This makes ceramic PCBs ideal for applications in high-temperature environments, such as:

• Automotive engine control units
• Aerospace and military electronics
• Industrial process control systems
• Power electronics

4.2 Excellent Electrical Insulation

Ceramic materials used in PCBs have excellent electrical insulation properties, with dielectric constants ranging from 6 to 10 and breakdown voltages exceeding 20 kV/mm. This enables ceramic PCBs to handle high voltages and currents without the risk of electrical breakdown or leakage. The high insulation resistance also helps to minimize signal loss and crosstalk, making ceramic PCBs suitable for high-frequency and high-speed applications.

4.3 Low Dielectric Loss

In high-frequency applications, dielectric loss can be a significant problem, leading to signal attenuation and reduced performance. Ceramic materials have very low dielectric loss, with loss tangents in the range of 0.0001 to 0.001 at frequencies up to 10 GHz. This makes ceramic PCBs ideal for high-frequency applications, such as:

• 5G telecommunications
• Radar systems
• Satellite communications
• Microwave devices

4.4 High Thermal Conductivity

Efficient heat dissipation is crucial in high-power electronics to prevent component failure and ensure reliable operation. Ceramic materials, particularly aluminum nitride and beryllium oxide, have high thermal conductivity, allowing them to effectively transfer heat away from components and into heat sinks or other cooling systems. This thermal management capability enables ceramic PCBs to handle higher power densities compared to traditional FR-4 PCBs.

4.5 Dimensional Stability

Ceramic materials have a low coefficient of thermal expansion (CTE), typically in the range of 4-8 ppm/°C, which is much lower than that of FR-4 (14-17 ppm/°C). This dimensional stability is crucial in applications where precise component alignment is required, such as:

• Optoelectronics
• High-density interconnects
• Flip-chip packaging

The low CTE of ceramic PCBs also helps to reduce thermal stress and fatigue, improving the long-term reliability of the electronic assembly.

4.6 Corrosion Resistance

Ceramic materials are inherently resistant to corrosion and chemical attack, making ceramic PCBs suitable for use in harsh environments where exposure to moisture, chemicals, or other corrosive agents is a concern. This corrosion resistance helps to extend the service life of the electronic assembly and reduce maintenance requirements.

The combination of high-temperature resistance, excellent electrical insulation, low dielectric loss, high thermal conductivity, dimensional stability, and corrosion resistance makes ceramic PCBs an ideal choice for demanding applications where performance and reliability are critical. While ceramic PCBs may have a higher initial cost compared to traditional FR-4 PCBs, their superior properties and long-term reliability often justify the investment in high-performance applications.

5. Applications of Ceramic PCBs

Ceramic PCBs find extensive use in various industries and applications where high performance, reliability, and durability are essential. Some of the key application areas for ceramic PCBs include:

5.1 Aerospace and Military

In the aerospace and military sectors, electronic systems are subjected to extreme conditions, such as high temperatures, high altitudes, and exposure to radiation. Ceramic PCBs are widely used in these applications due to their ability to withstand harsh environments and maintain reliable operation. Examples of aerospace and military applications for ceramic PCBs include:

• Avionics systems
• Radar and surveillance equipment
• Satellite communications
• Missile guidance systems
• Space exploration vehicles

5.2 Automotive

The automotive industry is increasingly adopting ceramic PCBs to meet the demands of high-performance and high-reliability electronic systems. With the growing trend of vehicle electrification and the development of advanced driver assistance systems (ADAS), ceramic PCBs are becoming essential in applications such as:

• Engine control units (ECUs)
• Power electronics for electric and hybrid vehicles
• Sensors and actuators
• Infotainment systems
• Autonomous driving systems

5.3 Telecommunications

In the telecommunications industry, ceramic PCBs are used in high-frequency and high-speed applications, where low dielectric loss and high signal integrity are critical. Some examples of telecommunications applications for ceramic PCBs include:

• 5G base stations and antennas
• Microwave and millimeter-wave devices
• Satellite communications equipment
• Optical networking components
• High-speed data transmission systems

5.4 Industrial Electronics

Ceramic PCBs are also used in various industrial electronics applications, where they must operate reliably in harsh environments and under high temperatures. Examples of industrial applications for ceramic PCBs include:

• Power generation and distribution systems
• Process control and automation equipment
• Oil and gas exploration and production electronics
• Mining and heavy machinery control systems
• Renewable energy systems, such as solar and wind power

5.5 Medical Devices

In the medical device industry, ceramic PCBs are used in applications that require high reliability, biocompatibility, and resistance to sterilization processes. Some examples of medical applications for ceramic PCBs include:

• Implantable devices, such as pacemakers and neurostimulators
• Diagnostic imaging equipment, such as MRI and CT scanners
• Surgical instruments and robots
• Patient monitoring systems
• Laboratory automation equipment

The use of ceramic PCBs in these applications ensures the reliable operation of critical electronic systems, even in demanding conditions. As technology continues to advance and the requirements for high-performance electronics become more stringent, the adoption of ceramic PCBs is expected to grow across various industries.

6. Comparing Ceramic PCBs with Traditional FR-4 PCBs

While ceramic PCBs offer numerous advantages over traditional FR-4 PCBs, it is essential to understand the differences between the two types of boards to make an informed decision when selecting the appropriate material for a given application. In this section, we will compare ceramic PCBs with FR-4 PCBs in terms of their properties, performance, and cost.
