Introduction to PCB Prototyping

Printed Circuit Board (PCB) prototyping is an essential step in the electronics design process. It allows engineers and makers to test and validate their designs before committing to full-scale production. PCB prototyping involves creating a small batch of boards to verify the functionality, performance, and reliability of the circuit design.

In this article, we will explore the various aspects of PCB prototyping, including the benefits, process, techniques, and tools involved. We will also discuss the importance of quick turn and fast PCB prototyping for engineers and makers.

Benefits of PCB Prototyping

PCB prototyping offers several benefits to engineers and makers:

1. Design Validation: PCB Prototypes allow designers to test and validate their circuit designs in real-world conditions. This helps identify any design flaws, performance issues, or compatibility problems early in the development cycle.

2. Cost Savings: By identifying and fixing design issues during the prototyping phase, engineers can avoid costly mistakes and rework in the later stages of production. PCB prototyping helps minimize the risk of manufacturing defects and reduces overall development costs.

3. Faster Time-to-Market: Quick turn and fast PCB prototyping services enable engineers to iterate and refine their designs rapidly. This accelerates the development process and helps bring products to market faster.

4. Improved Quality: PCB prototypes allow designers to test and optimize various aspects of their designs, such as component placement, signal integrity, and thermal management. This leads to higher-quality final products with improved reliability and performance.

PCB Prototyping Process

The PCB prototyping process typically involves the following steps:

1. Schematic Design: The first step is to create a schematic diagram of the circuit using electronic design automation (EDA) software. The schematic captures the electrical connections and components of the circuit.

2. PCB Layout: Once the schematic is finalized, the next step is to create the PCB layout. This involves arranging the components on the board, routing the traces, and defining the board dimensions and layer stackup.

3. Design Rule Check (DRC): Before manufacturing the PCB prototype, it’s essential to perform a design rule check (DRC). DRC ensures that the PCB layout adheres to the manufacturing guidelines and constraints, such as minimum trace width, clearance, and hole size.

4. Gerber File Generation: After passing the DRC, the PCB layout is exported as Gerber files. Gerber is the standard file format used by PCB manufacturers to fabricate the boards.

5. PCB Fabrication: The Gerber files are sent to a PCB manufacturing service, which fabricates the physical PCB prototypes. The fabrication process involves printing the circuit pattern on copper-clad laminate, etching away the unwanted copper, drilling holes, and applying solder mask and silkscreen.

6. PCB Assembly: Once the PCB prototypes are fabricated, the next step is to assemble the components onto the board. This can be done manually or using automated assembly techniques, such as surface mount technology (SMT) or through-hole technology (THT).

7. Testing and Debugging: After assembling the PCB prototypes, they are tested and debugged to verify their functionality and performance. This may involve visual inspection, electrical testing, and functional testing using test equipment and software tools.

PCB Prototyping Techniques

There are several techniques used for PCB prototyping, depending on the complexity, quantity, and turnaround time requirements of the project. Here are some common PCB prototyping techniques:

1. Breadboarding

Breadboarding is a quick and easy way to prototype simple circuits. It involves using a solderless breadboard to temporarily connect components and wires. Breadboarding allows designers to quickly test and modify their circuits without the need for soldering.

2. Perfboard

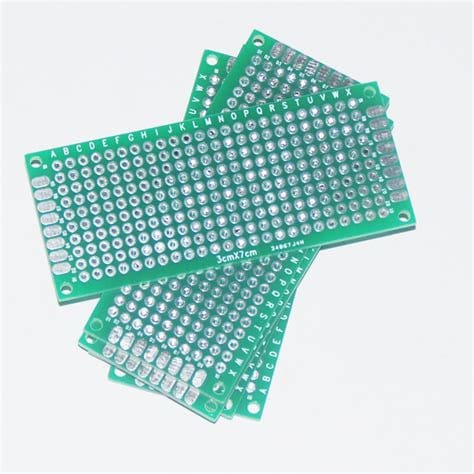

Perfboard, also known as protoboard or dot board, is a type of PCB with pre-drilled holes arranged in a grid pattern. Designers can use perfboard to hand-solder components and create simple circuits. Perfboard is suitable for low-complexity prototypes and one-off projects.

3. Milling

PCB milling is a subtractive manufacturing process that uses a computer-controlled milling machine to remove copper from a blank PCB. The milling machine routes the traces and cuts out the board outline based on the PCB design files. Milling is suitable for quick turnaround prototypes and low-volume production.

4. Laser Etching

Laser etching is another subtractive PCB prototyping technique. It uses a laser to selectively remove the copper from a pre-sensitized PCB laminate. Laser etching is faster and more precise than milling, making it suitable for high-resolution prototypes and fine-pitch components.

5. 3D Printing

3D printing is an additive manufacturing technique that can be used for PCB prototyping. Conductive 3D printing filaments, such as graphene or silver-based materials, can be used to print circuit traces and pads onto a substrate. 3D printing is suitable for rapid prototyping and custom form factors.

PCB Prototyping Tools

There are various tools and software used in PCB prototyping. Here are some essential tools for engineers and makers:

1. EDA Software

Electronic Design Automation (EDA) software is used for schematic capture, PCB layout, and simulation. Popular EDA tools include:

• KiCad
• Eagle
• Altium Designer
• OrCAD
• Autodesk Fusion 360

2. CAM Software

Computer-Aided Manufacturing (CAM) software is used to generate the manufacturing files, such as Gerber and drill files, from the PCB layout. Some EDA tools have built-in CAM functionality, while others require separate CAM software.

3. PCB Milling Machine

PCB milling machines are used for in-house PCB prototyping. They range from desktop CNC machines to larger industrial-grade machines. Some popular PCB milling machines include:

• Bantam Tools Desktop PCB Milling Machine
• Othermill Pro
• LPKF ProtoMat

4. Soldering Equipment

Soldering equipment is essential for assembling PCB prototypes. This includes:

• Soldering iron
• Solder wire
• Solder paste
• Hot air rework station
• Solder fume extractor

5. Testing and Debugging Tools

Testing and debugging tools are used to verify the functionality and performance of PCB prototypes. These include:

• Multimeter
• Oscilloscope
• Logic analyzer
• Power supply
• Debugging probes and analyzers

Quick Turn and Fast PCB Prototyping Services

For engineers and makers who don’t have access to in-house PCB prototyping equipment, there are many online PCB prototyping services that offer quick turn and fast turnaround times. These services provide end-to-end PCB prototyping solutions, from PCB fabrication to assembly and testing.

Here are some popular quick turn and fast PCB prototyping services:

These services offer competitive pricing, high-quality manufacturing, and fast turnaround times, making them suitable for rapid prototyping and low-volume production.

Conclusion

PCB prototyping is a crucial step in the electronics design process. It allows engineers and makers to test and validate their designs, optimize performance, and reduce development costs and time-to-market.

Quick turn and fast PCB prototyping services have made it easier than ever for engineers and makers to bring their ideas to life. By leveraging online PCB prototyping services and rapid prototyping techniques, designers can iterate and refine their designs quickly and efficiently.

Whether you’re a professional engineer working on a complex project or a hobbyist maker exploring new ideas, PCB prototyping is an essential skill to master. By understanding the process, techniques, and tools involved, you can create high-quality PCB prototypes that meet your design requirements and exceed your expectations.

FAQ

1. What is the typical turnaround time for PCB prototyping?

The turnaround time for PCB prototyping depends on the complexity of the design, the manufacturing process, and the service provider. Typical turnaround times range from 24 hours to several weeks. Many online PCB prototyping services offer quick turn options with turnaround times as fast as 24-48 hours.

2. How much does PCB prototyping cost?

The cost of PCB prototyping varies depending on factors such as the PCB size, layer count, quantity, and manufacturing process. Online PCB prototyping services often provide instant quotes based on your design specifications. Prices can range from a few dollars for simple 2-layer boards to hundreds of dollars for complex multi-layer boards with specialized finishes and assembly requirements.

3. What file formats are required for PCB prototyping?

The most common file format for PCB prototyping is Gerber RS-274X. Gerber files contain the information needed to manufacture the PCB, including the copper layers, solder mask, silkscreen, and drill data. Other file formats used in PCB prototyping include ODB++, IPC-2581, and 3D CAD files for mechanical integration.

4. Can I get assembled PCB prototypes?

Yes, many PCB prototyping services offer PCB assembly in addition to fabrication. This means they can source the components, solder them onto the PCB, and test the assembled board for functionality. Assembled PCB prototypes are useful for complete system integration and testing.

5. What are the advantages of using online PCB prototyping services compared to in-house prototyping?

Online PCB prototyping services offer several advantages over in-house prototyping:

• Access to advanced manufacturing capabilities and materials
• Faster turnaround times and on-demand production
• Lower setup costs and no need for capital equipment investment
• Scalability from prototype to low-volume production
• Expert support and design review services

However, in-house prototyping allows for more control over the process, faster iteration cycles, and the ability to prototype sensitive or confidential designs.
