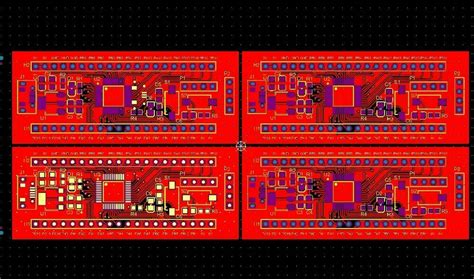

Introduction to PCB Files
A PCB (Printed Circuit Board) file is a digital representation of the design data necessary for the manufacturing of a printed circuit board. These files contain all the essential information required by PCB manufacturers to produce the physical board, including the layout, components, and connections. Understanding the various types of PCB files and their purposes is crucial for anyone involved in PCB design and manufacturing.
In this comprehensive article, we will explore the different aspects of PCB files, their formats, and their roles in the PCB design and manufacturing process.
Types of PCB Files
There are several types of PCB files, each serving a specific purpose in the design and manufacturing process. Here are the most common types of PCB files:
1. Gerber Files
Gerber files are the industry standard for PCB manufacturing. They contain the necessary information for each layer of the PCB, including copper traces, solder mask, silkscreen, and drill holes. Gerber files are generated from the PCB design software and are used by manufacturers to create the physical PCB.
2. Drill Files
Drill files, also known as NC drill files or Excellon files, contain information about the location, size, and type of drill holes required for the PCB. These files are used in conjunction with Gerber files to provide a complete set of manufacturing data.
3. BOM (Bill of Materials) Files
BOM files contain a list of all the components required to assemble the PCB. They include information such as the component reference designator, manufacturer part number, and quantity. BOM files are essential for procurement and assembly purposes.
4. Pick and Place Files
Pick and place files, also known as centroid files or XY files, contain the coordinates and orientation of each component on the PCB. These files are used by automated assembly machines to accurately place components on the board during the manufacturing process.
5. Schematic Files
Schematic files contain the logical representation of the PCB design, showing the interconnections between components. They are used for documentation and troubleshooting purposes and are not directly used in the manufacturing process.
6. PCB Design Files
PCB design files are the native files created by PCB design software. They contain all the design data, including the schematic, layout, and component information. These files are used to generate the various manufacturing files mentioned above.
PCB File Formats
PCB files can be saved in various formats, depending on the software and requirements. Here are some of the most common PCB file formats:
1. Gerber RS-274X
Gerber RS-274X is the most widely used format for Gerber files. It is an ASCII-based format that represents each layer of the PCB as a separate file. The RS-274X format supports aperture definitions, which allows for more precise and compact data representation.
2. ODB++ (Open Database++)
ODB++ is a comprehensive PCB data exchange format that includes all the necessary manufacturing information in a single file. It is designed to streamline the communication between PCB designers and manufacturers by providing a standardized format for data exchange.
3. IPC-2581
IPC-2581 is an XML-based PCB data transfer format that aims to provide a single, unified format for exchanging PCB design data. It includes all the necessary information for manufacturing, assembly, and testing, reducing the need for multiple file formats.
4. Eagle XML
Eagle XML is a proprietary format used by Autodesk Eagle PCB design software. It contains all the design data, including the schematic and layout information, in a single XML file.
5. KiCad PCB
KiCad PCB is the native file format used by the open-source KiCad PCB design software. It stores the PCB layout information in a human-readable ASCII format.
![](https://prototypepcbassembly.com/wp-content/uploads/2024/03/rayming-pcb-manufacturing-and-asssembly.jpg)
PCB File Generation
PCB files are typically generated using PCB design software. The process involves designing the schematic, creating the PCB layout, and then exporting the necessary manufacturing files. Here’s a general overview of the PCB file generation process:
-
Schematic Design: The first step is to create a schematic diagram that represents the electrical connections between components. This is done using a schematic capture tool within the PCB design software.
-
PCB Layout: Once the schematic is complete, the next step is to create the PCB layout. This involves placing components on the board, routing traces to connect them, and defining the board outline and drill holes.
-
Design Rule Check (DRC): Before generating the manufacturing files, it is essential to run a design rule check to ensure that the PCB layout meets the manufacturing requirements and constraints. DRC helps identify issues such as trace width violations, clearance problems, and drill size inconsistencies.
-
File Generation: After the DRC is complete and any issues are resolved, the final step is to generate the necessary manufacturing files. This typically involves exporting Gerber files for each layer of the PCB, drill files, and other required files such as the BOM and pick and place files.
Best Practices for PCB File Management
Proper management of PCB files is crucial for ensuring a smooth and efficient PCB design and manufacturing process. Here are some best practices to follow:
-
Use a consistent naming convention: Establish a clear and consistent naming convention for your PCB files to avoid confusion and ensure easy identification.
-
Organize files in a structured manner: Create a well-organized folder structure to store your PCB files, separating different versions, projects, and file types.
-
Use version control: Implement a version control system to track changes and revisions to your PCB files. This helps collaborate with team members and maintains a history of modifications.
-
Ensure file compatibility: Verify that the PCB files you generate are compatible with the manufacturing processes and equipment used by your chosen PCB manufacturer.
-
Communicate clearly with manufacturers: Provide clear instructions and specifications to your PCB manufacturer, including any special requirements or considerations for your PCB design.
Conclusion
PCB files are the backbone of the PCB design and manufacturing process. Understanding the different types of PCB files, their formats, and their roles is essential for anyone involved in PCB Development. By following best practices for PCB file management and communication with manufacturers, you can streamline the process and ensure the successful production of high-quality PCBs.
Frequently Asked Questions (FAQ)
- What is the most common format for PCB manufacturing files?
-
The most common format for PCB manufacturing files is Gerber RS-274X. It is widely accepted by PCB manufacturers and provides a reliable way to convey the necessary information for PCB production.
-
Can I use the same PCB files for different manufacturers?
-
In most cases, yes. However, it is essential to communicate with your chosen PCB manufacturer to ensure that they can work with the file formats you provide and that your files meet their specific requirements.
-
What should I do if my PCB manufacturer reports issues with my files?
-
If your PCB manufacturer reports issues with your files, the first step is to communicate with them to understand the specific problems they are facing. You may need to review your design, make necessary adjustments, and regenerate the files to address the issues.
-
How do I ensure my PCB files are compatible with the manufacturing process?
-
To ensure compatibility, it is essential to follow the design guidelines and specifications provided by your PCB manufacturer. This includes adhering to their minimum trace width, clearance, and drill size requirements, as well as any other specific guidelines they may have.
-
What is the difference between Gerber files and ODB++ files?
- Gerber files represent each layer of the PCB as a separate file, while ODB++ is a comprehensive format that includes all the necessary manufacturing information in a single file. ODB++ is designed to streamline data exchange between PCB designers and manufacturers, while Gerber files are the most widely used format for PCB production.
File Type | Purpose |
---|---|
Gerber Files | Contains information for each layer of the PCB, including copper traces, solder mask, silkscreen, and drill holes |
Drill Files | Contains information about the location, size, and type of drill holes required for the PCB |
BOM Files | Contains a list of all the components required to assemble the PCB |
Pick and Place Files | Contains the coordinates and orientation of each component on the PCB |
Schematic Files | Contains the logical representation of the PCB design, showing the interconnections between components |
PCB Design Files | Contains all the design data, including the schematic, layout, and component information |
PCB File Format | Description |
---|---|
Gerber RS-274X | The most widely used format for Gerber files, representing each layer of the PCB as a separate ASCII-based file |
ODB++ | A comprehensive PCB data exchange format that includes all the necessary manufacturing information in a single file |
IPC-2581 | An XML-based PCB data transfer format that provides a single, unified format for exchanging PCB design data |
Eagle XML | A proprietary format used by Autodesk Eagle PCB design software, containing all the design data in a single XML file |
KiCad PCB | The native file format used by the open-source KiCad PCB design software, storing the PCB layout information in a human-readable ASCII format |
