Making Solder Paste Stencils

Introduction to Solder Stencils

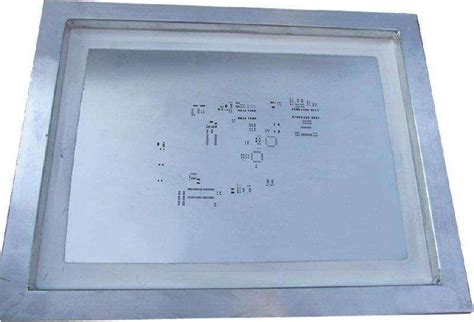

Solder stencils are an essential tool in the process of surface mount technology (SMT) assembly. They are thin metal sheets with laser-cut openings that correspond to the pads on a printed circuit board (PCB). These openings allow for precise application of solder paste onto the PCB, ensuring accurate and consistent placement of components during the Reflow Soldering process.

What are Solder Stencils Made Of?

Solder stencils are typically made from one of three materials:

1. Stainless Steel
2. Most common material
3. Durable and long-lasting
4. Suitable for high-volume production
5. Nickel
6. Softer than stainless steel
7. Less prone to wear and tear
8. Ideal for smaller production runs
9. Polyimide
10. Polymer-based material
11. Flexible and lightweight
12. Used for specialized applications

Importance of Solder Stencils in SMT Assembly

Solder stencils play a crucial role in the SMT assembly process by:

1. Ensuring precise solder paste application
2. Reducing solder bridging and other defects
3. Improving production efficiency and consistency
4. Enabling the use of fine-pitch components

Designing Solder Stencils

Factors to Consider When Designing Solder Stencils

1. PCB layout and pad sizes
2. Component pitch and package types
3. Solder paste properties
4. Stencil thickness
5. Aperture design and orientation

Stencil Thickness Selection

The thickness of a solder stencil is determined by several factors, including:

1. Solder paste type and particle size
2. Component package types and sizes
3. PCB pad geometry and pitch

Typical stencil thicknesses range from 0.1 mm to 0.2 mm (4 to 8 mils). The following table provides a general guide for selecting stencil thickness based on component pitch:

Aperture Design and Orientation

Aperture design and orientation are critical factors in ensuring proper solder paste release from the stencil. Some key considerations include:

1. Aperture size and shape
2. Should match PCB pad size and shape
3. Typically 1:1 ratio with pad size
4. Aperture wall angle
5. 5° to 7° taper is common
6. Ensures good paste release
7. Aperture orientation
8. Should be aligned with component placement direction
9. Minimizes solder bridging and other defects

Manufacturing Solder Stencils

Laser Cutting Process

Solder stencils are typically manufactured using a laser cutting process. The process involves the following steps:

1. Creating a digital stencil design file (usually in Gerber format)
2. Loading the stencil material into the laser cutting machine
3. Aligning the material and setting up the laser parameters
4. Laser cutting the stencil apertures according to the design file
5. Cleaning and inspecting the finished stencil

Quality Control and Inspection

Quality control and inspection are essential to ensuring the accuracy and consistency of solder stencils. Some common inspection methods include:

1. Visual inspection
2. Checking for any obvious defects or irregularities
3. Verifying aperture sizes and positions
4. Microscopic inspection
5. Using a microscope to examine aperture walls and edges
6. Checking for any signs of laser burning or contamination
7. Automated optical inspection (AOI)
8. Using specialized equipment to scan and analyze the stencil
9. Comparing the stencil to the original design file
10. Identifying any deviations or defects

Using Solder Stencils in SMT Assembly

Solder Paste Application

Solder paste application using a stencil involves the following steps:

1. Aligning the stencil with the PCB
2. Using Fiducial Marks or alignment pins
3. Ensuring proper registration between stencil and PCB
4. Applying solder paste
5. Using a manual or automated squeegee
6. Dragging the squeegee across the stencil to fill apertures with paste
7. Removing the stencil
8. Carefully lifting the stencil to avoid disturbing the deposited paste
9. Inspecting the PCB for any defects or inconsistencies

Stencil Cleaning and Maintenance

Regular cleaning and maintenance of solder stencils are essential for ensuring consistent performance and long service life. Some key practices include:

1. Cleaning the stencil after each use
2. Using isopropyl alcohol or specialized cleaning solutions
3. Removing any residual solder paste or contamination
4. Storing the stencil properly
5. Keeping the stencil in a protective container or cover
6. Avoiding exposure to moisture, dust, or other contaminants
7. Inspecting the stencil regularly
8. Checking for any signs of wear, damage, or contamination
9. Replacing the stencil when necessary

Troubleshooting Common Solder Stencil Issues

Solder Bridging

Solder bridging occurs when excess solder paste connects adjacent pads or components. Some common causes and solutions include:

Insufficient Solder Paste Deposition

Insufficient solder paste deposition can lead to weak solder joints or open connections. Some common causes and solutions include:

Frequently Asked Questions (FAQ)

1. What is the difference between a solder paste stencil and a solder mask?

2. A solder paste stencil is a thin metal sheet with apertures that allow for the precise application of solder paste onto PCB Pads. A solder mask, on the other hand, is a layer applied to the PCB that protects against solder bridging and provides insulation between conductive traces.

3. Can solder stencils be reused?

4. Yes, solder stencils can be reused multiple times with proper cleaning and maintenance. However, the stencil should be regularly inspected for any signs of wear or damage and replaced when necessary to ensure consistent performance.

5. How do I choose the right solder paste for my stencil?

6. When selecting a solder paste, consider factors such as the particle size, alloy composition, and viscosity. The paste should be compatible with the stencil thickness and aperture sizes, as well as the specific requirements of your SMT assembly process. Consult with your solder paste supplier or manufacturer for guidance.

7. What is the recommended storage method for solder stencils?

8. Solder stencils should be stored in a clean, dry environment to prevent contamination and damage. Keep the stencil in a protective container or cover when not in use, and avoid exposing it to moisture, dust, or extreme temperatures. Proper storage can help extend the service life of the stencil.

9. How often should I clean my solder stencil?

10. It is recommended to clean the solder stencil after each use to remove any residual solder paste or contamination. Regular cleaning helps maintain the accuracy and consistency of solder paste deposition and prevents defects in the assembly process. Use isopropyl alcohol or specialized cleaning solutions and follow the manufacturer’s guidelines for cleaning frequency and methods.

Conclusion

Solder stencils are a critical component in the SMT assembly process, enabling precise and consistent solder paste application for high-quality PCB production. By understanding the design, manufacturing, and use of solder stencils, engineers and technicians can optimize their SMT assembly processes and minimize defects.

Proper selection of stencil materials, thicknesses, and aperture designs, combined with regular cleaning and maintenance, can help ensure reliable and efficient PCB Assembly. As electronics continue to miniaturize and become more complex, the importance of solder stencils in achieving high-quality, cost-effective SMT assembly will only continue to grow.
