Why You Should Use The 8 Layer PCB?

Introduction to 8-Layer PCB

An 8-layer PCB, or printed circuit board, is a complex and highly advanced type of circuit board that consists of eight conductive layers sandwiched between insulating layers. These boards are designed to handle high-speed signals, provide excellent signal integrity, and offer superior performance in demanding applications.

Benefits of Using 8-Layer PCBs

1. Increased routing density
2. Improved signal integrity
3. Better power distribution
4. Enhanced thermal management
5. Reduced electromagnetic interference (EMI)

Applications of 8-Layer PCBs

High-Speed Digital Systems

8-layer PCBs are extensively used in high-speed digital systems, such as:

1. Computer motherboards
2. Network switches and routers
3. Telecommunications equipment
4. Data storage devices

The multiple layers allow for efficient routing of high-speed signals, minimizing crosstalk and signal distortion.

Aerospace and Defense

In the aerospace and defense industries, 8-layer PCBs are employed in:

1. Avionics systems
2. Radar and sonar equipment
3. Satellite communication devices
4. Military-grade computers

The robust construction and superior performance of 8-layer PCBs make them suitable for harsh environments and mission-critical applications.

Medical Devices

8-layer PCBs find applications in advanced medical devices, including:

1. Diagnostic imaging equipment (e.g., MRI, CT scanners)
2. Patient monitoring systems
3. Surgical robots
4. Implantable devices

The high signal integrity and reliability of 8-layer PCBs ensure the accurate functioning of these life-saving devices.

Designing 8-Layer PCBs

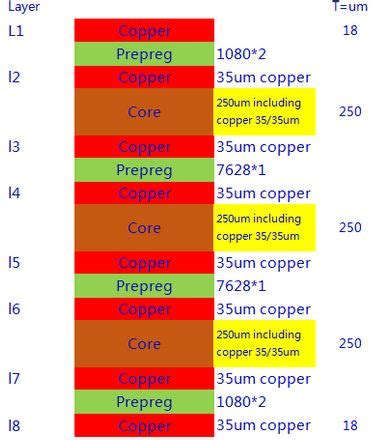

Layer Stack-up

A typical 8-layer PCB Stack-up consists of the following layers:

Signal Integrity Considerations

To ensure optimal signal integrity in 8-layer PCBs, designers must consider:

1. Controlled impedance routing
2. Proper termination techniques
3. Minimizing crosstalk and EMI
4. Maintaining consistent trace widths and spacing

Power Distribution Network (PDN)

An effective power distribution network is crucial for 8-layer PCBs. Key aspects include:

1. Proper placement of power and ground planes
2. Adequate decoupling capacitors
3. Minimizing voltage drop and power noise
4. Optimizing via placement and sizing

Manufacturing 8-Layer PCBs

Material Selection

Common materials used for 8-layer PCBs include:

1. FR-4: A glass-reinforced epoxy laminate, suitable for most applications
2. High-Tg FR-4: Offers better thermal stability and performance
3. Polyimide: Provides excellent thermal and mechanical properties for demanding environments
4. PTFE (Teflon): Used for high-frequency applications due to its low dielectric constant

Fabrication Process

The manufacturing process for 8-layer PCBs involves several steps:

1. Inner layer fabrication: Etching and lamination of individual layers
2. Drilling: Creating vias and through-holes
3. Plating: Copper plating of vias and through-holes
4. Outer layer fabrication: Etching and lamination of top and bottom layers
5. Solder mask application: Protecting the board from oxidation and short circuits
6. Silkscreen printing: Adding component designators and logos
7. Surface finish application: Improving solderability and protecting exposed copper

Quality Control

Stringent quality control measures are essential for 8-layer PCBs, including:

1. Automated optical inspection (AOI)
2. Electrical testing
3. Cross-sectional analysis
4. Thermal cycling and stress testing

Cost Considerations

Factors Affecting Cost

The cost of 8-layer PCBs is influenced by several factors:

1. Board size and thickness
2. Material selection
3. Number of vias and through-holes
4. Surface finish type
5. Quantity ordered

Cost Optimization Strategies

To minimize the cost of 8-layer PCBs, consider:

1. Optimizing board size and layout
2. Minimizing the number of unique hole sizes
3. Choosing cost-effective materials
4. Ordering in larger quantities
5. Working closely with your PCB manufacturer

Frequently Asked Questions (FAQ)

1. What are the advantages of using 8-layer PCBs over fewer layers?

8-layer PCBs offer several advantages over boards with fewer layers, including increased routing density, improved signal integrity, better power distribution, and enhanced thermal management. The additional layers allow for more complex designs and higher performance in demanding applications.

2. Can 8-layer PCBs be used for high-frequency applications?

Yes, 8-layer PCBs are well-suited for high-frequency applications. By using materials with low dielectric constants, such as PTFE (Teflon), and employing proper design techniques, 8-layer PCBs can effectively handle high-frequency signals while minimizing signal loss and distortion.

3. How do I ensure proper signal integrity in 8-layer PCBs?

To ensure proper signal integrity in 8-layer PCBs, designers must consider several factors, such as controlled impedance routing, proper termination techniques, minimizing crosstalk and EMI, and maintaining consistent trace widths and spacing. Simulation tools and adherence to best design practices can help optimize signal integrity.

4. What is the typical turnaround time for manufacturing 8-layer PCBs?

The turnaround time for manufacturing 8-layer PCBs varies depending on the complexity of the design, the chosen materials, and the manufacturing capabilities of the PCB supplier. Typically, the fabrication process can take anywhere from 1 to 3 weeks, with additional time required for shipping and customs clearance, if applicable.

5. How can I reduce the cost of 8-layer PCBs without compromising quality?

To reduce the cost of 8-layer PCBs without compromising quality, consider optimizing the board size and layout, minimizing the number of unique hole sizes, choosing cost-effective materials, and ordering in larger quantities. Collaborating closely with your PCB manufacturer can also help identify cost-saving opportunities while maintaining the required performance and reliability standards.

Conclusion

8-layer PCBs are a powerful and versatile solution for a wide range of demanding applications, offering increased routing density, improved signal integrity, better power distribution, and enhanced thermal management. By understanding the design considerations, manufacturing processes, and cost optimization strategies associated with 8-layer PCBs, engineers and product developers can unlock the full potential of these advanced circuit boards, enabling them to create high-performance, reliable, and cost-effective electronic products.
