PCB design of DFM some matters needing attention

Introduction to DFM-PCB

Design for Manufacturability (DFM) is a crucial aspect of printed circuit board (PCB) design that ensures the designed board can be efficiently and reliably manufactured. DFM-PCB considers various factors, such as component placement, routing, and manufacturing processes, to minimize potential issues during production and improve overall quality. By adhering to DFM principles, designers can reduce manufacturing costs, improve yield rates, and accelerate time-to-market.

Key Considerations in DFM-PCB Design

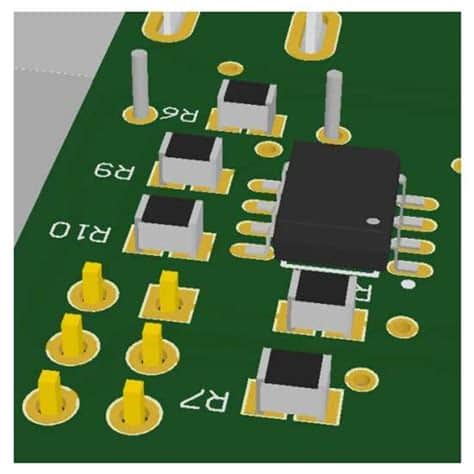

Component Placement

Proper component placement is essential for a successful DFM-PCB design. Consider the following guidelines:

1. Group related components together to minimize routing complexity and improve signal integrity.
2. Place components on a single side of the board whenever possible to reduce manufacturing costs.
3. Ensure adequate spacing between components to facilitate soldering and inspection.
4. Orient components in the same direction to streamline the assembly process.

Routing and Trace Width

Proper routing and trace width selection are critical for signal integrity and manufacturability. Keep these points in mind:

1. Use appropriate trace widths based on the current carrying requirements and signal frequency.
2. Maintain consistent trace widths throughout the design to avoid impedance mismatches.
3. Avoid sharp angles in traces to prevent signal reflections and manufacturing issues.
4. Provide sufficient clearance between traces and components to prevent short circuits.

Vias and Through-Hole Technology

Vias and through-hole technology are essential for connecting layers in a multi-layer PCB. Consider these guidelines:

1. Minimize the number of vias to reduce manufacturing complexity and improve reliability.
2. Use appropriate via sizes based on the current carrying requirements and layer count.
3. Avoid placing vias under components to prevent soldering issues.
4. Use plated through-holes for component mounting and unplated holes for mechanical purposes.

Solder Mask and Silkscreen

Solder mask and silkscreen are essential for protecting the PCB and providing useful information for assembly and debugging. Keep these points in mind:

1. Ensure adequate solder mask clearance around pads to prevent Solder Bridging.
2. Provide clear and concise silkscreen labels for components and test points.
3. Avoid placing silkscreen over pads or exposed copper areas.
4. Use contrasting colors for silkscreen and solder mask to improve readability.

Manufacturing Process Considerations

Panelization

Panelization is the process of arranging multiple PCBs on a single panel for efficient manufacturing. Consider these guidelines:

1. Use a standard panel size that is compatible with the manufacturing equipment.
2. Provide adequate spacing between individual PCBs to allow for clean separation.
3. Include Fiducial Markers and tooling holes for accurate alignment during assembly.
4. Use tab routing or v-scoring for easy depanelization.

Surface Finish

The surface finish of a PCB affects its solderability, durability, and shelf life. Common surface finishes include:

1. Hot Air Solder Leveling (HASL): Cost-effective and widely used, but may result in uneven surfaces.
2. Electroless Nickel Immersion Gold (ENIG): Provides excellent solderability and flatness, but is more expensive.
3. Immersion Silver (IAg): A cost-effective alternative to ENIG, but may tarnish over time.
4. Immersion Tin (ISn): Provides good solderability, but may be prone to tin whiskers.

Testability and Inspection

Designing for testability and inspection is crucial for ensuring the quality and reliability of the manufactured PCBs. Consider these guidelines:

1. Provide test points for critical signals and power supplies.
2. Include fiducial markers for automated optical inspection (AOI) systems.
3. Ensure adequate access for testing probes and inspection cameras.
4. Consider using boundary scan testing for complex designs.

Common DFM-PCB Issues and Solutions

Solder Bridging

Solder bridging occurs when solder inadvertently connects adjacent pads or traces. To prevent solder bridging:

1. Increase the spacing between pads and traces.
2. Use a solder mask to cover exposed copper areas.
3. Optimize the Solder Paste stencil design.

Tombstoning

Tombstoning is a phenomenon where a surface mount component stands up on one end during the soldering process. To minimize tombstoning:

1. Ensure proper pad design and symmetry.
2. Control the solder paste volume and reflow profile.
3. Use a slower ramp rate during the preheat stage.

Thermal Management

Proper thermal management is essential for ensuring the reliability and longevity of the PCB. Consider these guidelines:

1. Use thermal vias to dissipate heat from high-power components.
2. Provide adequate copper pours for heat spreading.
3. Consider using thermal interface materials (TIMs) for critical components.

PCB Design Software and Tools

Several PCB design software and tools are available to streamline the DFM-PCB process. Some popular options include:

1. Altium Designer
2. Cadence OrCAD
3. KiCad
4. Mentor Graphics PADS
5. Zuken CR-8000

These tools offer features such as design rule checking (DRC), 3D visualization, and automated routing to help designers create manufacturable PCBs.

Collaborating with Manufacturers

Effective communication and collaboration with PCB Manufacturers are essential for successful DFM-PCB implementation. Consider these points:

1. Provide clear and comprehensive design files, including Gerber files, drill files, and assembly drawings.
2. Discuss any special requirements or constraints with the manufacturer early in the design process.
3. Request a design for manufacturability (DFM) review from the manufacturer to identify potential issues.
4. Establish a feedback loop with the manufacturer to continuously improve the design and manufacturing process.

FAQ

What is the importance of DFM in PCB design?

DFM is crucial in PCB design as it ensures that the designed board can be efficiently and reliably manufactured. By considering factors such as component placement, routing, and manufacturing processes, designers can minimize potential issues during production, reduce manufacturing costs, improve yield rates, and accelerate time-to-market.

What are some common DFM issues in PCB design?

Common DFM issues in PCB design include solder bridging, tombstoning, and thermal management problems. Solder bridging occurs when solder inadvertently connects adjacent pads or traces, while tombstoning is a phenomenon where a surface mount component stands up on one end during the soldering process. Inadequate thermal management can lead to reliability and longevity issues in the PCB.

How can I prevent solder bridging in my PCB design?

To prevent solder bridging, you can increase the spacing between pads and traces, use a solder mask to cover exposed copper areas, and optimize the solder paste stencil design. These measures help to minimize the risk of solder inadvertently connecting adjacent elements on the PCB.

What is the importance of collaborating with PCB manufacturers during the design process?

Collaborating with PCB manufacturers during the design process is essential for successful DFM-PCB implementation. By providing clear and comprehensive design files, discussing special requirements or constraints early on, requesting DFM reviews, and establishing a feedback loop, designers can work closely with manufacturers to identify and resolve potential issues, continuously improving the design and manufacturing process.

What are some popular PCB design software tools that support DFM?

Several PCB design software tools support DFM, including Altium Designer, Cadence OrCAD, KiCad, Mentor Graphics PADS, and Zuken CR-8000. These tools offer features such as design rule checking (DRC), 3D visualization, and automated routing to help designers create manufacturable PCBs while adhering to DFM principles.

Conclusion

Designing PCBs with DFM in mind is essential for ensuring efficient, reliable, and cost-effective manufacturing. By considering factors such as component placement, routing, vias, solder mask, and silkscreen, designers can create boards that are optimized for the manufacturing process. Additionally, understanding the manufacturing process, common DFM issues, and collaborating closely with PCB manufacturers can help to minimize potential problems and improve the overall quality of the final product.
