How To Determine the Number of Layers of Multilayer PCB?

Understanding PCB Layers

Before delving into the factors that influence the number of layers, let’s briefly discuss the concept of PCB layers. A PCB layer is a thin, conductive sheet of copper that is laminated onto a non-conductive substrate material, such as FR-4. The copper layers are etched to create the desired circuit patterns, and multiple layers are stacked and bonded together to form a Multilayer PCB.

The most common types of PCB layers include:

• Signal layers: These layers contain the actual circuit traces that carry electrical signals between components.
• Power layers: Dedicated layers that distribute power throughout the PCB, providing a stable and low-impedance power supply to the components.
• Ground layers: Layers that serve as a reference plane for the signal layers, helping to reduce EMI and improve signal integrity.

Factors Influencing the Number of Layers

When determining the number of layers for a multilayer PCB, several factors must be considered. These factors include:

1. Circuit complexity: The complexity of your circuit design is a primary factor in determining the number of layers required. As the number of components and interconnections increases, so does the need for additional layers to accommodate the routing.

2. Signal integrity: High-speed and sensitive signals require careful routing to maintain signal integrity. Additional layers may be necessary to provide adequate spacing between signals and to implement techniques such as guard rings or shielding.

3. Power distribution: The power requirements of your circuit play a significant role in determining the number of layers. Dedicated power and ground layers help to distribute power evenly across the PCB and reduce voltage drop.

4. EMI and noise reduction: Multilayer PCBs offer better EMI shielding compared to single-layer boards. Additional layers can be used to create ground planes and implement noise reduction techniques.

5. Manufacturing constraints: The manufacturing capabilities of your PCB fabricator may impose limitations on the maximum number of layers that can be produced reliably and cost-effectively.

Determining the Number of Layers

Now that we understand the factors influencing the number of layers let’s explore the process of determining the appropriate layer count for your multilayer PCB.

Step 1: Assess Circuit Complexity

Begin by analyzing the complexity of your circuit design. Consider the following aspects:

• Number of components: Count the total number of components in your design, including integrated circuits (ICs), resistors, capacitors, and other discrete components.
• Pin count: Determine the total number of pins or pads that need to be connected. High pin count devices, such as ball grid array (BGA) packages, may require additional layers for routing.
• Interconnections: Identify the number of interconnections between components. Complex designs with a large number of interconnections may necessitate more layers.

Based on the assessment of circuit complexity, you can make an initial estimate of the required number of layers. As a general rule of thumb, consider the following guidelines:

Please note that these are rough estimates, and the actual number of layers required may vary based on other factors.

Step 2: Evaluate Signal Integrity Requirements

Next, consider the signal integrity requirements of your design. High-speed signals, such as those found in digital circuits operating at frequencies above 100 MHz, require special attention to maintain signal quality. The following factors should be considered:

• Signal speed: Higher signal speeds necessitate shorter trace lengths and may require additional layers to provide more routing options.
• Impedance control: Controlled impedance traces, such as those used for high-speed interfaces like USB or PCIe, may require dedicated signal layers with specific dielectric thicknesses.
• Crosstalk: To minimize crosstalk between signals, additional layers may be needed to provide adequate spacing and shielding.

If your design includes high-speed signals or sensitive analog circuits, it is recommended to allocate dedicated signal layers and consider techniques such as stripline or microstrip routing.

Step 3: Analyze Power Distribution Needs

The power distribution requirements of your PCB play a crucial role in determining the number of layers. Consider the following aspects:

• Power consumption: Estimate the total power consumption of your circuit based on the components and their operating conditions.
• Voltage rails: Identify the number of distinct voltage rails required by your components. Each voltage rail may require a dedicated power layer.
• Current demand: Calculate the maximum current demand for each voltage rail. Higher current demands may necessitate thicker copper layers or multiple power layers connected in parallel.

As a general guideline, allocate at least one power layer and one ground layer for each voltage rail in your design. For high-current designs, consider using thicker copper layers (e.g., 2 oz or 4 oz copper) to minimize voltage drop and improve heat dissipation.

Step 4: Consider EMI and Noise Reduction

Multilayer PCBs offer inherent advantages in terms of EMI shielding and noise reduction. However, the number of layers allocated for these purposes depends on the specific requirements of your application. Consider the following factors:

• EMI susceptibility: If your PCB will be operating in an environment with high levels of electromagnetic interference, additional layers may be necessary for shielding.
• Noise-sensitive circuits: Analog circuits, such as audio or measurement systems, may require dedicated layers for noise isolation and ground planes.
• Regulatory compliance: Certain industries, such as automotive or medical, have strict EMC (electromagnetic compatibility) requirements. Additional layers may be necessary to meet these standards.

As a general rule, allocate at least one solid ground layer for every two signal layers to provide effective shielding and noise reduction. In noise-sensitive designs, consider using techniques such as guard rings or isolated ground planes.

Step 5: Review Manufacturing Constraints

Finally, consult with your PCB fabricator to understand their manufacturing capabilities and constraints. Some key factors to consider include:

• Maximum number of layers: PCB Fabricators have limits on the maximum number of layers they can reliably produce. Ensure that your design falls within their capabilities.
• Minimum layer thickness: The minimum thickness of each layer may vary depending on the fabricator’s processes. Thinner layers may have implications for signal integrity and power handling.
• Cost considerations: Increasing the number of layers typically increases the manufacturing cost of the PCB. Evaluate the cost-benefit tradeoff and optimize the layer count accordingly.

By taking into account the manufacturing constraints, you can ensure that your multilayer PCB design is feasible and cost-effective to produce.

Examples of Layer Stackups

To provide a clearer understanding of how the number of layers affects PCB design, let’s examine a few common layer stackups:

4-Layer Stackup

A typical 4-layer stackup consists of the following layers:

This stackup is suitable for moderately complex designs with a single voltage rail and moderate EMI requirements.

6-Layer Stackup

A 6-layer stackup offers more flexibility and better signal integrity compared to a 4-layer board. A common 6-layer stackup is as follows:

This stackup provides additional signal layers for routing and separates the power and ground planes for better noise isolation.

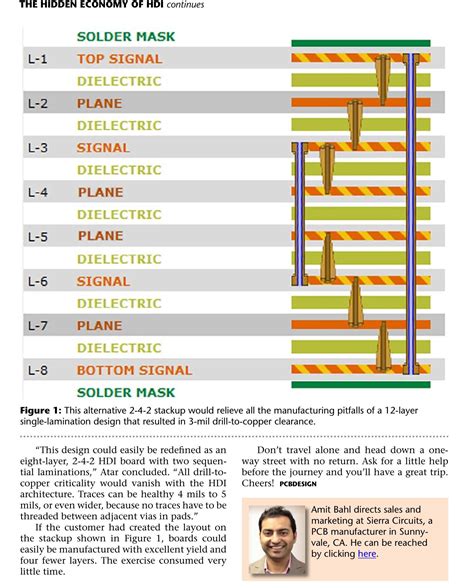

8-Layer Stackup

For complex designs with multiple voltage rails and stringent EMI requirements, an 8-layer stackup may be necessary. A typical 8-layer stackup is as follows:

This stackup provides dedicated power layers for multiple voltage rails, additional signal layers for routing, and ground planes for shielding and noise reduction.

Frequently Asked Questions (FAQ)

1. Q: Can I use a 2-layer PCB for a complex design?
   A: While a 2-layer PCB may be sufficient for simple designs with a low component count, it is generally not recommended for complex designs. Complex designs often require more routing layers, dedicated power and ground planes, and better signal integrity, which are more easily achieved with multilayer PCBs.

2. Q: How does the number of layers affect the cost of PCB manufacturing?
   A: Increasing the number of layers in a PCB typically increases the manufacturing cost. Each additional layer requires more materials, processing steps, and time to fabricate. However, the cost increase is not linear and may vary depending on the PCB fabricator and the specific manufacturing processes used.

3. Q: Can I mix different layer thicknesses in a multilayer PCB?
   A: Yes, it is possible to have different layer thicknesses within a multilayer PCB Stackup. This technique is known as a hybrid stackup and is often used to optimize signal integrity or power handling capabilities. However, not all PCB fabricators support hybrid stackups, and it may increase the manufacturing complexity and cost.

4. Q: How do I determine the optimal layer thickness for my PCB?
   A: The optimal layer thickness depends on several factors, including the signal speed, impedance requirements, and power handling needs. Thinner layers are typically used for high-speed signals to minimize dielectric losses, while thicker layers are used for power planes to handle higher currents. Consulting with your PCB fabricator and using simulation tools can help determine the appropriate layer thicknesses for your specific design.

5. Q: Can I change the number of layers during the PCB design process?
   A: Yes, it is possible to modify the number of layers during the PCB design process. However, changing the layer count may require significant design revisions, such as rerouting traces, updating component placement, and modifying the layer stackup. It is advisable to establish the required number of layers early in the design process to minimize the impact of changes.

Conclusion

Determining the appropriate number of layers for a multilayer PCB is a critical decision that impacts the performance, reliability, and cost of your electronic product. By considering factors such as circuit complexity, signal integrity, power distribution, EMI, and manufacturing constraints, you can make an informed decision on the optimal layer count for your specific design.

Remember to approach the layer determination process systematically, starting with an assessment of circuit complexity and progressing through the evaluation of signal integrity, power distribution, and noise reduction requirements. Consulting with your PCB fabricator and leveraging simulation tools can further refine your decision and ensure the success of your multilayer PCB design.

By following the guidelines and best practices outlined in this article, you can navigate the process of determining the number of layers for your multilayer PCB with confidence, ultimately achieving a design that meets your performance, reliability, and cost objectives.
