Gerber files for PCB: How are they important in manufacturing your printed circuit boards?

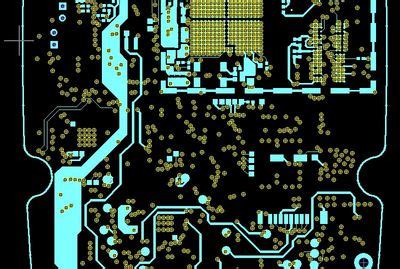

Introduction to PCB Gerber files

In the world of printed circuit board (PCB) design and manufacturing, Gerber files play a crucial role in ensuring the accurate and efficient production of PCBs. Named after the Gerber Systems Corporation, which developed the format in the 1960s, Gerber files have become the industry standard for exchanging PCB design information between designers and manufacturers.

What are Gerber Files?

Gerber files are a set of ASCII text files that contain the necessary information for manufacturing a PCB. These files describe the various layers of a PCB, including the copper traces, solder mask, silkscreen, and drill holes. Each Gerber file represents a specific layer of the PCB, and together they provide a complete picture of the board’s design.

The Gerber format has evolved over the years, with the most recent version being the Extended Gerber or X2 format. This format includes additional features such as embedded aperture definitions and attributes, which help streamline the manufacturing process and reduce the possibility of errors.

The Importance of Gerber Files in PCB Manufacturing

1. Communication between Designers and Manufacturers

One of the primary reasons Gerber files are essential in PCB manufacturing is that they serve as a common language between PCB designers and manufacturers. By using a standardized format, designers can ensure that their designs are accurately conveyed to the manufacturing team, regardless of the software tools used in the design process.

2. Precision and Accuracy

Gerber files contain precise information about the dimensions, locations, and sizes of various PCB features. This level of detail is crucial for manufacturing high-quality PCBs that meet the required specifications. Without accurate Gerber files, manufacturers may struggle to produce boards that function as intended, leading to costly rework or even total failure.

3. Automated Manufacturing Processes

Modern PCB manufacturing heavily relies on automated processes to achieve high throughput and consistent quality. Gerber files play a vital role in enabling these automated processes, as they can be directly input into computer-aided manufacturing (CAM) software. The CAM software uses the Gerber data to generate machine-readable instructions for the various manufacturing steps, such as drilling, plating, and etching.

4. Error Reduction and Troubleshooting

By using a standardized format like Gerber, the risk of errors during the manufacturing process is significantly reduced. Gerber files provide a clear and unambiguous representation of the PCB design, minimizing the chances of misinterpretation or miscommunication between the design and manufacturing teams.

In the event of issues during manufacturing, Gerber files can also be used for troubleshooting purposes. Manufacturers can review the Gerber data to identify potential design issues or discrepancies that may be causing problems on the production line.

Understanding the Different Types of Gerber Files

A complete set of Gerber files for a PCB typically includes several different file types, each representing a specific layer or aspect of the board. Here are some of the most common types of Gerber files:

1. Copper Layer Files

Copper layer files, also known as conductor layer files, represent the actual copper traces on the PCB. There will be one Gerber file for each copper layer in the board, such as the top and bottom layers, as well as any inner layers for multi-layer PCBs.

2. Solder Mask Files

Solder mask files define the areas on the PCB that will be covered by the solder mask – a protective coating that prevents solder from adhering to unintended areas during the soldering process. There are typically two solder mask files, one for the top side and one for the bottom side of the board.

3. Silkscreen Files

Silkscreen files, also known as legend or overlay files, contain the information for the text, logos, and other markings that will be printed on the PCB’s surface. Like solder mask files, there are usually two silkscreen files – one for each side of the board.

4. Drill Files

Drill files, sometimes referred to as NC drill files or Excellon files (named after the Excellon format), contain information about the location, size, and type of holes to be drilled in the PCB. This includes both through-holes for components and vias for interconnecting different layers.

5. Outline Files

Outline files, also called board outline or profile files, define the physical shape and dimensions of the PCB. They are used by the manufacturer to determine where to cut or route the board from the larger panel it is fabricated on.

Creating and Verifying Gerber Files

Generating Gerber Files from PCB Design Software

Most PCB design software packages, such as Altium Designer, Eagle, or KiCad, have built-in tools for generating Gerber files from the board design. When generating Gerber files, it is essential to ensure that the correct settings are used, including the file format (e.g., RS-274X or X2), the units (metric or imperial), and the aperture definitions.

It is also crucial to generate a complete set of Gerber files that includes all the necessary layers for manufacturing. Some software tools may have options to output additional files, such as pick-and-place files for automated assembly or 3D model files for visualization purposes.

Verifying Gerber Files

Before sending Gerber files to a manufacturer, it is good practice to verify them for accuracy and completeness. There are several software tools available for reviewing and analyzing Gerber files, such as GerbView (included with KiCad), ViewMate, or CAM350.

When verifying Gerber files, some key things to check include:

• Ensure that all necessary layers are present and correctly named
• Check for any missing or incorrect aperture definitions
• Verify that the board outline and drill holes are properly defined
• Look for any obvious errors, such as traces that are too close together or missing connections

By thoroughly verifying the Gerber files before submitting them for manufacturing, designers can catch potential issues early and avoid costly delays or rework.

Best Practices for Working with Gerber Files

To ensure smooth communication with manufacturers and minimize the risk of problems during PCB production, follow these best practices when working with Gerber files:

1. Use a Standard Naming Convention

Adopt a clear and consistent naming convention for your Gerber files to avoid confusion and ensure that the manufacturer can easily identify each layer. One common naming convention is to use a prefix that identifies the layer type, followed by the board name or version. For example:

• TOP_BoardName.gbr for the top copper layer
• BOT_BoardName.gbr for the bottom copper layer
• TSM_BoardName.gbr for the top solder mask
• DRL_BoardName.txt for the drill file

2. Include all Necessary Files

Always generate and provide a complete set of Gerber files that includes all the layers required for manufacturing. This typically includes copper layers, solder mask layers, silkscreen layers, drill files, and outline files. If unsure, consult with your manufacturer to determine their specific requirements.

3. Use the Latest Gerber Format

Whenever possible, use the latest version of the Gerber format, such as the Extended Gerber or X2 format. These newer formats offer improved features and can help streamline the manufacturing process. However, be sure to check with your manufacturer to ensure they support the format you plan to use.

4. Provide Clear Instructions and Documentation

In addition to the Gerber files themselves, provide your manufacturer with clear instructions and any necessary documentation. This may include a readme file that lists the included Gerber files, any special requirements or considerations for the design, and your contact information in case of questions or issues.

5. Communicate with Your Manufacturer

Establishing good communication with your PCB manufacturer is essential for ensuring successful production. If you have any questions or concerns about generating or submitting Gerber files, don’t hesitate to reach out to your manufacturer for guidance. They can provide valuable insights and help you navigate any challenges that may arise.

FAQ

1. Can I use different PCB design software to generate Gerber files?

Yes, most PCB design software packages are capable of generating Gerber files. However, the specific steps and settings for generating the files may vary between different software tools.

2. Are Gerber files the only way to send PCB design data to a manufacturer?

While Gerber files are the most common and widely-accepted format for PCB design data, some manufacturers may also accept other formats, such as ODB++ or IPC-2581. It’s best to check with your specific manufacturer to determine their preferred format.

3. What should I do if my manufacturer reports issues with my Gerber files?

If your manufacturer encounters problems with your Gerber files, the first step is to communicate with them to understand the specific issue. They may provide feedback or request changes to the files. Review their feedback carefully, make any necessary adjustments to your design or Gerber generation settings, and resubmit the updated files.

4. Can I include additional information in my Gerber files, such as component placement data?

Gerber files are primarily used to convey the PCB layout and fabrication data, but they do not typically include component placement information. For assembly purposes, you would generally provide a separate set of files, such as pick-and-place files or assembly drawings.

5. How can I ensure my Gerber files are compatible with my manufacturer’s equipment and processes?

To ensure compatibility, it’s important to communicate with your manufacturer and follow their specific guidelines for generating and submitting Gerber files. They may have requirements for file formats, naming conventions, or other aspects of the Gerber data. By working closely with your manufacturer and adhering to their standards, you can help ensure a smooth and successful production process.

Conclusion

Gerber files are an essential tool in the world of PCB design and manufacturing, serving as the bridge between the design phase and the physical realization of the board. By understanding the different types of Gerber files, how to create and verify them, and following best practices for working with them, PCB designers can ensure that their designs are accurately and efficiently translated into high-quality, functional circuit boards.

As PCB technology continues to evolve, the Gerber format remains a trusted and widely-used standard for exchanging design data. By mastering the use of Gerber files and collaborating effectively with manufacturers, designers can bring their innovative ideas to life and contribute to the ever-expanding world of electronic devices and systems.
