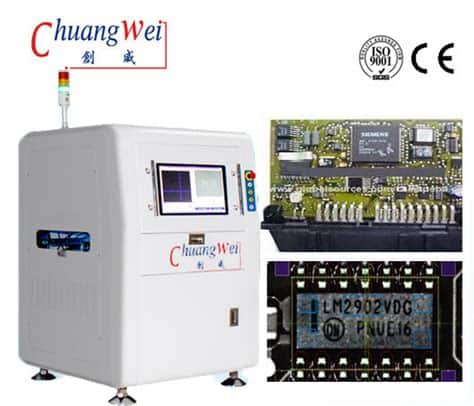

What is Automated Optical Inspection (AOI)?

Automated Optical Inspection is a technology that uses high-resolution cameras and advanced image processing software to inspect PCBs for defects, such as:

  • Solder bridging
  • Missing components
  • Incorrect component placement
  • Solder joint defects
  • Insufficient or excessive solder
  • Damaged or misaligned components

AOI systems capture images of the PCB at various stages of the assembly process and compare them to a pre-defined set of parameters. If any defects are detected, the system alerts the operator, allowing for quick correction and minimizing the risk of faulty products reaching the end user.

Benefits of AOI PCB Inspection

There are several key benefits to implementing AOI technology in PCB Assembly:

  1. Increased Efficiency: AOI systems can inspect PCBs much faster than manual inspection, allowing for higher throughput and reduced production time.
  2. Improved Accuracy: AOI technology is not subject to human error or fatigue, ensuring consistent and accurate inspection results.
  3. Early Defect Detection: By inspecting PCBs at various stages of the assembly process, AOI systems can catch defects early on, reducing the cost and time associated with rework and repair.
  4. Reduced Labor Costs: Automating the inspection process reduces the need for manual labor, leading to cost savings for the company.
  5. Enhanced Customer Satisfaction: By delivering high-quality, defect-free products, companies can improve customer satisfaction and build a strong reputation in the industry.

Types of AOI Systems

There are three main types of AOI systems used in PCB assembly:

  1. 2D AOI Systems: These systems use a single camera to capture 2D images of the PCB. They are best suited for inspecting flat components and solder joints.
  2. 3D AOI Systems: These systems use multiple cameras or laser scanners to create a 3D image of the PCB, allowing for more accurate inspection of component height and solder joint quality.
  3. Combination AOI Systems: Some AOI systems combine both 2D and 3D inspection technologies to provide a comprehensive analysis of the PCB.

The choice of AOI system depends on the specific needs of the company, the complexity of the PCBs being produced, and the budget available for investment in inspection technology.

Top AOI PCB Assembly Companies

Several PCB assembly companies have made significant investments in AOI technology to improve their manufacturing processes. Here are some of the top companies known for their AOI PCB inspection capabilities:

  1. Foxconn: As one of the world’s largest electronics manufacturers, Foxconn has implemented AOI systems in its PCB assembly lines to ensure the highest quality products for its clients.
  2. Jabil: Jabil is a global manufacturing services company that uses advanced AOI technology to inspect PCBs for defects and ensure consistency across its production facilities.
  3. Flextronics: Flextronics is another major player in the electronics manufacturing industry, utilizing AOI systems to maintain strict quality control standards in its PCB assembly processes.
  4. Celestica: Celestica is a multinational electronics manufacturing services company that has invested in state-of-the-art AOI technology to provide its customers with high-quality, reliable PCBs.
  5. Sanmina: Sanmina is a leading integrated manufacturing solutions provider that employs AOI systems to inspect PCBs for defects and ensure the highest level of quality for its clients.

These companies, among others, have recognized the value of AOI technology in improving the efficiency, accuracy, and cost-effectiveness of their PCB assembly processes.

Implementing AOI in PCB Assembly

For companies considering implementing AOI technology in their PCB assembly lines, there are several factors to consider:

  1. Defining Inspection Requirements: Companies must first determine the specific inspection needs for their PCBs, taking into account factors such as component types, solder joint complexity, and overall board density.
  2. Selecting an AOI System: Based on the inspection requirements, companies can evaluate different AOI systems and select one that best meets their needs in terms of accuracy, speed, and cost.
  3. Integration with Existing Processes: AOI systems must be seamlessly integrated into the existing PCB assembly line, ensuring minimal disruption to production and maximum benefit from the technology.
  4. Training and Support: Proper training for operators and maintenance staff is essential to ensure the effective use of AOI systems. Companies should also consider the level of support provided by the AOI system vendor, including software updates, technical assistance, and repair services.
  5. Continuous Improvement: Implementing AOI technology is not a one-time event. Companies should continuously monitor the performance of their AOI systems, analyze defect data, and make necessary adjustments to optimize the inspection process and improve overall product quality.

By carefully considering these factors, PCB assembly companies can successfully implement AOI technology and reap the benefits of improved efficiency, accuracy, and customer satisfaction.

Future of AOI in PCB Assembly

As the electronics industry continues to evolve, so does the technology used in PCB assembly. AOI systems are expected to become even more advanced in the coming years, with improvements in areas such as:

  1. Artificial Intelligence (AI) and Machine Learning (ML): AI and ML algorithms can be used to enhance the defect detection capabilities of AOI systems, allowing them to learn from past inspections and adapt to new PCB designs and components.
  2. High-Resolution Imaging: Advancements in camera technology will enable AOI systems to capture even more detailed images of PCBs, improving the accuracy of defect detection.
  3. Faster Inspection Speeds: As AOI systems become more powerful, they will be able to inspect PCBs at even faster rates, further increasing production throughput.
  4. Integration with Other Technologies: AOI systems may be integrated with other technologies, such as X-ray inspection or in-circuit testing, to provide a more comprehensive quality control solution.

As these advancements are realized, AOI technology will become an even more essential tool for PCB assembly companies looking to maintain a competitive edge in the industry.

Conclusion

Automated Optical Inspection has revolutionized the PCB assembly industry, providing companies with a powerful tool for ensuring the highest quality products and customer satisfaction. By investing in AOI technology, PCB assembly companies can improve efficiency, accuracy, and cost-effectiveness, while reducing the risk of defects and rework.

As the technology continues to evolve, it is clear that AOI will play an increasingly important role in the future of electronics manufacturing. Companies that embrace this technology and integrate it effectively into their processes will be well-positioned to succeed in an increasingly competitive industry.

Frequently Asked Questions (FAQ)

  1. What are the main benefits of using AOI in PCB assembly?
    The main benefits of using AOI in PCB assembly include increased efficiency, improved accuracy, early defect detection, reduced labor costs, and enhanced customer satisfaction.

  2. How does AOI technology detect defects in PCBs?
    AOI technology uses high-resolution cameras and advanced image processing software to capture images of the PCB at various stages of the assembly process. These images are then compared to a pre-defined set of parameters to identify any defects or anomalies.

  3. What types of defects can AOI systems detect?
    AOI systems can detect a wide range of defects, including solder bridging, missing components, incorrect component placement, solder joint defects, insufficient or excessive solder, and damaged or misaligned components.

  4. What factors should companies consider when implementing AOI technology?
    When implementing AOI technology, companies should consider factors such as defining inspection requirements, selecting an appropriate AOI system, integrating the system with existing processes, providing proper training and support, and continuously improving the inspection process based on data analysis.

  5. How is AOI technology expected to evolve in the future?
    In the future, AOI technology is expected to incorporate advancements in artificial intelligence and machine learning, high-resolution imaging, faster inspection speeds, and integration with other quality control technologies to provide even more comprehensive and efficient PCB inspection solutions.

Category Benefit
Efficiency AOI systems can inspect PCBs much faster than manual inspection, allowing for higher throughput and reduced production time.
Accuracy AOI technology is not subject to human error or fatigue, ensuring consistent and accurate inspection results.
Early Defect Detection By inspecting PCBs at various stages of the assembly process, AOI systems can catch defects early on, reducing the cost and time associated with rework and repair.
Cost Savings Automating the inspection process reduces the need for manual labor, leading to cost savings for the company.
Customer Satisfaction By delivering high-quality, defect-free products, companies can improve customer satisfaction and build a strong reputation in the industry.
