556 Circuits: Ultimate Guide for its Operation

Introduction to 556 Circuits

The 556 timer IC is a dual version of the popular 555 timer integrated circuit. It combines two 555 timers into a single 14-pin package, allowing for more complex timing and control applications. The 556 timer is widely used in various electronic projects, from simple LED flashing circuits to more advanced control systems.

Key Features of 556 Circuits

• Dual 555 timers in a single package
• Wide supply voltage range (4.5V to 18V)
• Adjustable duty cycle
• Can be configured as astable or monostable multivibrator
• Capable of producing long time delays
• High output current drive capability

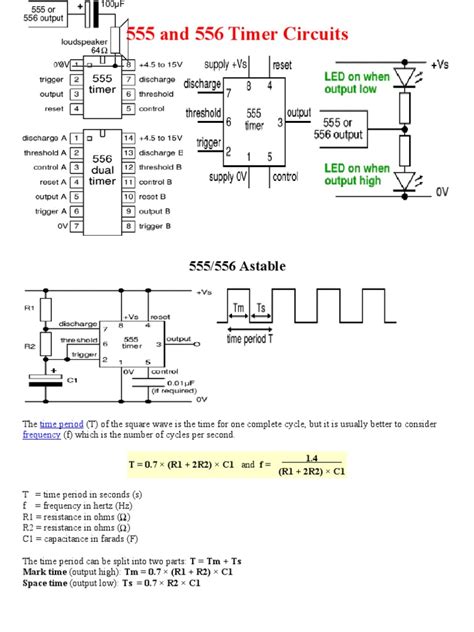

556 Circuit Pinout and Schematic

To understand how to use the 556 timer effectively, it’s essential to know its pinout and internal schematic.

556 Timer Pinout

556 Timer Internal Schematic

The internal schematic of the 556 timer consists of two identical 555 Timer Circuits. Each 555 timer has a comparator, a flip-flop, and an output stage. The comparator monitors the voltage at the threshold and trigger inputs, while the flip-flop controls the state of the output. The output stage provides a high current drive capability.

Operating Modes of 556 Circuits

The 556 timer can be configured to operate in two primary modes: astable and monostable.

Astable Mode (Free-running Oscillator)

In astable mode, the 556 timer generates a continuous stream of rectangular pulses. The duration of the high and low states of the output can be independently controlled by two resistors and a capacitor.

Astable Mode Configuration

To configure the 556 timer in astable mode:
1. Connect a capacitor between the DISCH and THRES pins.
2. Connect a resistor between VCC and DISCH pin.
3. Connect another resistor between DISCH and THRES pins.
4. Connect the TRIG pin to the THRES pin.

The output frequency and duty cycle can be calculated using the following formulas:

f = 1.44 / ((R1 + 2 * R2) * C)
Duty Cycle = (R1 + R2) / (R1 + 2 * R2)

Where:
– f is the output frequency in Hz
– R1 is the resistance between VCC and DISCH
– R2 is the resistance between DISCH and THRES
– C is the capacitance between DISCH and THRES

Astable Mode Applications

• LED flashing circuits
• Pulse generation
• PWM control
• Tone Generators

Monostable Mode (One-shot Pulse Generator)

In monostable mode, the 556 timer generates a single output pulse of a predetermined duration when triggered by an input signal. The pulse duration is controlled by a resistor and a capacitor.

Monostable Mode Configuration

To configure the 556 timer in monostable mode:
1. Connect a capacitor between the DISCH and GND pins.
2. Connect a resistor between VCC and DISCH pin.
3. Apply a trigger signal to the TRIG pin.

The output pulse duration can be calculated using the following formula:

t = 1.1 * R * C

Where:
– t is the output pulse duration in seconds
– R is the resistance between VCC and DISCH
– C is the capacitance between DISCH and GND

Monostable Mode Applications

• Debouncing switches
• Generating time delays
• Pulse stretching
• One-shot control circuits

Advanced 556 Circuit Configurations

By combining the two 555 timers within the 556 package, more complex timing and control applications can be achieved.

Cascaded 556 Timers

Cascading two 556 timers allows for the generation of longer time delays or more complex pulse patterns. To cascade the timers, connect the output of the first timer to the trigger input of the second timer.

Cascaded 556 Timer Applications

• Long duration time delays
• Sequential control systems
• Complex pulse patterns

Frequency Divider

The 556 timer can be configured as a frequency divider by connecting the output of one timer to the trigger input of the other timer. By selecting appropriate resistor and capacitor values, the output frequency can be divided by a specific factor.

Frequency Divider Configuration

To configure the 556 timer as a frequency divider:
1. Configure one timer in astable mode to generate the input frequency.
2. Configure the other timer in monostable mode with a pulse duration equal to the desired output frequency period.
3. Connect the output of the astable timer to the trigger input of the monostable timer.

The output frequency will be a divided version of the input frequency.

Frequency Divider Applications

• Frequency synthesis
• Clock signal generation
• Motor speed control

556 Circuit Design Considerations

When designing 556 timer circuits, several factors should be considered to ensure optimal performance and reliability.

Component Selection

Proper selection of resistors and capacitors is crucial for achieving the desired timing characteristics. Use high-quality components with tight tolerances to minimize variations in the output.

Power Supply Decoupling

To reduce noise and ensure stable operation, it’s essential to decouple the power supply using ceramic capacitors placed close to the VCC and GND pins of the 556 timer.

Output Loading

The 556 timer has a high output current drive capability, but it’s important to consider the load connected to the output. Ensure that the load does not exceed the maximum rated current to prevent damage to the timer.

PCB Layout

Proper PCB layout techniques should be followed to minimize noise and cross-talk between the two timers. Keep the traces short and use ground planes to provide a low-impedance return path.

Troubleshooting 556 Circuits

If your 556 timer circuit is not functioning as expected, here are some common issues and troubleshooting tips:

Incorrect Timing

If the output frequency or pulse duration is not as expected, double-check the resistor and capacitor values. Ensure that the components are connected to the correct pins and that the formulas are used correctly.

Unstable Output

An unstable output can be caused by noise or improper power supply decoupling. Ensure that the power supply is clean and that Decoupling capacitors are placed close to the 556 timer. Also, check for any loose connections or damaged components.

No Output

If there is no output from the 556 timer, check the power supply and ensure that the timer is receiving the correct voltage. Verify that the trigger signal is applied correctly and that the reset pin is not inadvertently pulled low.

Frequently Asked Questions (FAQ)

1. What is the difference between a 555 and 556 timer?
   A 556 timer is essentially two 555 timers combined in a single package. It has two independent timers that can be configured separately, allowing for more complex timing and control applications.

2. Can a 556 timer be used in place of a 555 timer?
   Yes, a 556 timer can be used in place of a 555 timer in most cases. However, keep in mind that the pinout is different, and you’ll only be using one of the two available timers in the 556 package.

3. What is the maximum supply voltage for a 556 timer?
   The maximum supply voltage for a 556 timer is typically 18V. However, it’s essential to consult the specific datasheet for the exact maximum rating of the timer you are using.

4. How do I calculate the output frequency in astable mode?
   The output frequency in astable mode can be calculated using the formula: f = 1.44 / ((R1 + 2 * R2) * C), where R1 is the resistance between VCC and DISCH, R2 is the resistance between DISCH and THRES, and C is the capacitance between DISCH and THRES.

5. What is the purpose of the control voltage input (CONT) pin?
   The control voltage input (CONT) pin allows for voltage control of the threshold and trigger levels. By applying a voltage to the CONT pin, you can modulate the output frequency or pulse duration without changing the resistor and capacitor values.

Conclusion

The 556 timer is a versatile and widely used integrated circuit that combines two 555 timers in a single package. It can be configured in astable or monostable modes and can be used in a variety of timing and control applications. By understanding the pinout, internal schematic, and operating modes of the 556 timer, you can design reliable and efficient circuits for your projects.

When working with 556 timers, it’s essential to consider factors such as component selection, power supply decoupling, output loading, and PCB layout to ensure optimal performance. If you encounter any issues, troubleshoot the circuit by checking connections, component values, and power supply.

By following the guidelines and examples provided in this ultimate guide, you’ll be well-equipped to harness the power of 556 circuits in your electronic projects.
