Why Do We Need To Use Vapor Phase Reflow Technology

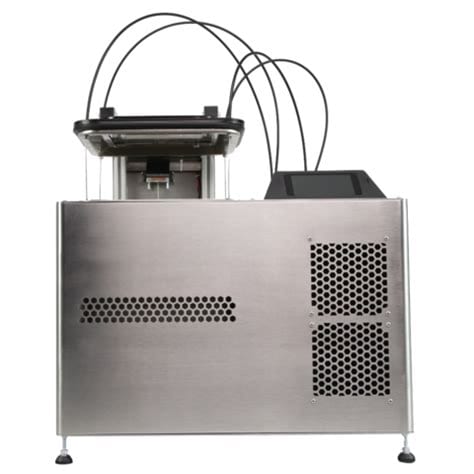

What is Vapor Phase Reflow?

Vapor phase reflow is an advanced soldering technique that utilizes the condensation of a heated vapor to transfer heat to the PCB and components, enabling the solder to melt and form reliable connections. The process takes place in a specialized oven, where a perfluoropolyether (PFPE) fluid is heated to its boiling point, creating a dense vapor that envelops the PCB.

Key Components of a Vapor Phase Reflow System

1. Oven chamber
2. PFPE fluid reservoir
3. Heating elements
4. Cooling system
5. Control unit

Advantages of Vapor Phase Reflow

1. Uniform Heat Distribution

One of the primary reasons for using vapor phase reflow is its ability to provide uniform heat distribution across the entire PCB. Unlike conventional reflow methods, such as convection or infrared, where heat is applied from the top or bottom of the board, vapor phase reflow surrounds the PCB with a saturated vapor at a constant temperature. This ensures that all components, regardless of their size or location, receive the same amount of heat, minimizing thermal stresses and reducing the risk of component damage.

2. Precise Temperature Control

Vapor phase reflow offers precise temperature control, as the boiling point of the PFPE fluid determines the maximum temperature that the PCB and components will experience. This eliminates the possibility of overheating, which can cause component damage or PCB Warpage. Additionally, the stable temperature profile ensures consistent solder joint formation, improving the overall quality and reliability of the Electronic Assembly.

3. Reduced Thermal Stresses

The uniform heat distribution and precise temperature control in vapor phase reflow significantly reduce thermal stresses on the PCB and components. This is particularly beneficial for assemblies with a mix of large and small components, as well as those with temperature-sensitive devices. By minimizing thermal gradients and preventing localized hotspots, vapor phase reflow helps maintain the integrity of the components and the PCB, reducing the risk of defects and failures.

4. Improved Solder Joint Quality

Vapor phase reflow promotes the formation of high-quality solder joints by providing an oxygen-free environment during the soldering process. The dense vapor displaces air, creating an inert atmosphere that prevents oxidation and contamination of the solder. This results in shinier, more uniform solder joints with better mechanical strength and electrical conductivity, enhancing the overall reliability of the electronic assembly.

5. Compatibility with Diverse Components

Vapor phase reflow is compatible with a wide range of electronic components, including surface mount devices (SMDs), through-hole components, and even temperature-sensitive parts like electrolytic capacitors and connectors. The uniform heat distribution and precise temperature control ensure that all components are soldered efficiently without exceeding their maximum temperature ratings, making vapor phase reflow suitable for a variety of applications and industries.

Applications of Vapor Phase Reflow

Vapor phase reflow technology finds applications in various industries and product categories, such as:

1. Consumer electronics
2. Automotive electronics
3. Aerospace and defense
4. Medical devices
5. Industrial automation and control systems
6. Telecommunications equipment
7. Internet of Things (IoT) devices

Implementing Vapor Phase Reflow

To successfully implement vapor phase reflow in an electronics manufacturing process, consider the following steps:

1. Select the appropriate PFPE fluid based on the required boiling point and the temperature sensitivity of the components.
2. Optimize the reflow profile to ensure proper solder melting and wetting while minimizing exposure to high temperatures.
3. Train operators on the proper use and maintenance of the vapor phase reflow system.
4. Establish quality control measures to monitor the process and ensure consistent results.
5. Regularly maintain the system, including cleaning the oven chamber and replacing the PFPE fluid as needed.

Frequently Asked Questions (FAQ)

1. Is vapor phase reflow suitable for lead-free soldering?

Yes, vapor phase reflow is compatible with lead-free soldering processes. The precise temperature control and uniform heat distribution ensure that lead-free solder alloys melt and wet properly, forming reliable connections.

2. Can vapor phase reflow be used for double-sided PCB assemblies?

Yes, vapor phase reflow can be used for double-sided PCB assemblies. The uniform heating from all directions ensures that both sides of the board are soldered evenly, reducing the risk of warpage and ensuring proper component alignment.

3. Is vapor phase reflow more energy-efficient than other reflow methods?

Vapor phase reflow can be more energy-efficient than convection or infrared reflow methods, as the heat transfer is more direct and uniform. This results in shorter cycle times and reduced energy consumption, especially for high-volume production.

4. How does vapor phase reflow handle moisture-sensitive devices (MSDs)?

Vapor phase reflow is well-suited for handling moisture-sensitive devices, as the rapid and uniform heating minimizes the exposure time to high temperatures. This reduces the risk of moisture-induced damage, such as popcorning or delamination, ensuring the reliability of the assembled components.

5. What maintenance is required for a vapor phase reflow system?

Regular maintenance of a vapor phase reflow system includes cleaning the oven chamber to remove flux residues, monitoring the PFPE fluid level and quality, and replacing the fluid when necessary. Proper maintenance ensures optimal performance, extends the system’s lifespan, and maintains the quality of the soldered assemblies.

Conclusion

Vapor phase reflow technology offers numerous advantages over traditional soldering methods, making it an attractive choice for electronics manufacturers seeking to improve the quality, reliability, and consistency of their assemblies. With its uniform heat distribution, precise temperature control, and compatibility with diverse components, vapor phase reflow addresses the challenges faced in modern electronics manufacturing.

By understanding the principles behind vapor phase reflow and implementing it effectively in the production process, manufacturers can unlock the benefits of this advanced soldering technique. As electronic devices continue to become more complex and demand higher performance, vapor phase reflow technology will play an increasingly critical role in ensuring the success and longevity of these products.
