How Flying Probe Testing Works

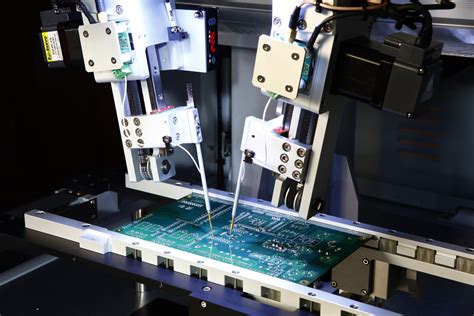

Flying probe testing utilizes a set of precisely controlled probes that move independently across the surface of a PCB. These probes are designed to make contact with specific test points on the board, allowing for comprehensive testing of the PCB’s functionality and connectivity.

The Flying Probe Testing Process

  1. Board Positioning: The PCB is securely placed on the testing platform, ensuring accurate and stable positioning throughout the testing process.

  2. Probe Alignment: The flying probes are automatically aligned with the test points on the PCB using advanced computer-aided design (CAD) data and machine vision technology.

  3. Contact and Measurement: The probes make contact with the test points, and electrical measurements are taken to verify the connectivity and functionality of the PCB.

  4. Defect Detection: Any defects or anomalies detected during the testing process are recorded and reported for further analysis and correction.

Advantages of Flying Probe Testing

Flying probe testing offers several key advantages over traditional PCB Testing methods:

  1. Flexibility: Flying probe testers can accommodate a wide variety of PCB designs and layouts without the need for custom test fixtures.

  2. Quick Setup: The setup time for flying probe testing is significantly shorter than that of traditional testing methods, as no custom fixtures need to be designed and manufactured.

  3. Cost-Effectiveness: By eliminating the need for custom test fixtures, flying probe testing can reduce overall testing costs, particularly for low-volume production runs or prototype testing.

  4. Improved Coverage: Flying probe testers can access test points that may be difficult or impossible to reach with traditional test fixtures, resulting in more comprehensive testing coverage.

Applications of Flying Probe Testing

Flying probe testing is suitable for a wide range of PCB testing applications, including:

  1. Prototype Testing: Flying probe testing is ideal for verifying the functionality and connectivity of prototype PCBs before moving into full-scale production.

  2. Low-Volume Production: For small production runs, flying probe testing can provide a cost-effective alternative to traditional testing methods that require custom fixtures.

  3. High-Mix Manufacturing: In situations where a variety of PCB designs are being manufactured, flying probe testing can quickly adapt to different board layouts without the need for multiple test fixtures.

  4. Repair and Rework: Flying probe testers can be used to isolate and diagnose faults in PCBs, facilitating targeted repair and rework efforts.

Comparing Flying Probe Testing to Other Methods

While flying probe testing offers numerous advantages, it is essential to understand how it compares to other PCB testing methods.

Flying Probe Testing vs. In-Circuit Testing (ICT)

In-circuit testing (ICT) is a traditional PCB testing method that utilizes a custom-made test fixture, known as a bed of nails, to make contact with test points on the board. While ICT can provide fast and reliable testing for high-volume production, it has some limitations when compared to flying probe testing:

Feature Flying Probe Testing In-Circuit Testing
Setup Time Short Long (custom fixture required)
Flexibility High Low (limited by fixture design)
Cost-Effectiveness High for low-volume or prototype testing High for high-volume production
Test Coverage Comprehensive Limited by fixture design

Flying Probe Testing vs. Boundary Scan Testing

Boundary scan testing, also known as JTAG testing, is a method that uses built-in test circuitry to verify the connectivity and functionality of digital components on a PCB. While boundary scan testing can provide efficient testing for complex digital circuits, it has some limitations when compared to flying probe testing:

Feature Flying Probe Testing Boundary Scan Testing
Analog Component Testing Supported Not Supported
Test Coverage Comprehensive Limited to digital components
Setup Time Short Short (no custom fixture required)
Cost-Effectiveness High for low-volume or prototype testing High for digital-heavy designs

Implementing Flying Probe Testing in Your Manufacturing Process

To successfully implement flying probe testing in your PCB manufacturing process, consider the following steps:

  1. Evaluate Your Testing Needs: Determine whether flying probe testing is suitable for your specific PCB designs, production volumes, and testing requirements.

  2. Select a Flying Probe Tester: Research and compare different flying probe testing systems to find one that meets your needs in terms of speed, accuracy, and features.

  3. Prepare Test Data: Ensure that your PCB design files are compatible with the flying probe tester’s software and that all necessary test points and parameters are clearly defined.

  4. Train Your Staff: Provide comprehensive training to your staff on the operation, maintenance, and troubleshooting of the flying probe testing system.

  5. Integrate with Your Manufacturing Workflow: Seamlessly integrate flying probe testing into your overall PCB manufacturing workflow to ensure efficient and effective testing at the appropriate stages of production.

Frequently Asked Questions (FAQ)

  1. Q: How long does it take to set up a flying probe test?
    A: The setup time for a flying probe test is generally much shorter than that of traditional testing methods, as no custom fixtures need to be designed and manufactured. Typically, setup can be completed in a matter of hours, depending on the complexity of the PCB design.

  2. Q: Can flying probe testers detect all types of PCB defects?
    A: Flying probe testers are capable of detecting a wide range of PCB defects, including open circuits, short circuits, and component failures. However, some defects, such as those related to mechanical stress or thermal issues, may require additional testing methods.

  3. Q: Are flying probe testers suitable for high-volume production?
    A: While flying probe testers offer many advantages for low-volume production and prototype testing, they may not be the most efficient choice for high-volume production. In these cases, traditional testing methods like in-circuit testing (ICT) may be more suitable.

  4. Q: Can flying probe testing be used for both analog and digital components?
    A: Yes, flying probe testing can be used to test both analog and digital components on a PCB. This versatility is one of the key advantages of flying probe testing over other methods, such as boundary scan testing, which is limited to digital components.

  5. Q: How much does a flying probe tester cost?
    A: The cost of a flying probe tester can vary widely depending on factors such as the system’s capabilities, accuracy, and speed. Generally, flying probe testers are a significant investment, with prices ranging from tens of thousands to hundreds of thousands of dollars. However, the long-term cost savings and benefits of flying probe testing can justify the initial investment for many PCB manufacturers.

In conclusion, flying probe testing is a powerful and versatile method for testing PCBs that offers numerous advantages over traditional testing methods. By understanding the capabilities, applications, and implementation of flying probe testing, PCB manufacturers can make informed decisions about incorporating this technology into their manufacturing processes to improve efficiency, reduce costs, and ensure the highest quality of their products.
