What is DRC in Printed Circuit Boards?

Understanding Design Rule Check (DRC) in PCB Design

Introduction to DRC

Design Rule Check (DRC) is an essential step in the printed circuit board (PCB) design process. It is an automated verification tool that ensures the designed PCB layout adheres to a set of predefined design rules and constraints. These rules are established to guarantee the manufacturability, reliability, and functionality of the PCB. By running DRC, potential design issues and errors can be identified and rectified before the PCB is sent for fabrication, saving time and costs associated with redesigns and production delays.

Importance of DRC in PCB Design

DRC plays a crucial role in the PCB design workflow for several reasons:

1. Manufacturability: DRC ensures that the PCB layout complies with the manufacturing capabilities and limitations of the chosen fabrication facility. It checks for minimum trace widths, clearances, drill sizes, and other parameters that affect the PCB’s manufacturability.

2. Reliability: By verifying the PCB layout against established design rules, DRC helps to minimize potential issues that could compromise the reliability of the final product. It checks for proper spacing between components, traces, and vias to prevent short circuits, signal integrity problems, and thermal issues.

3. Functionality: DRC helps to ensure that the PCB will function as intended by checking for correct connections, proper signal routing, and adherence to electrical constraints. It verifies that the design meets the specified requirements for impedance matching, signal integrity, and power delivery.

4. Cost Savings: Running DRC early in the design process can identify and resolve issues before the PCB is sent for manufacturing. This reduces the likelihood of costly redesigns, production delays, and scrap due to manufacturing defects.

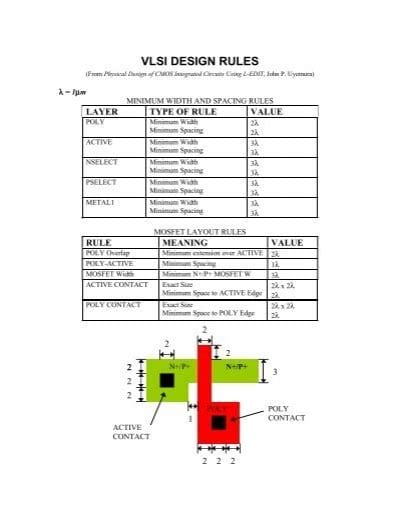

Types of Design Rules Checked by DRC

DRC checks a wide range of design rules to ensure the quality and manufacturability of the PCB. Some of the common types of design rules checked by DRC include:

1. Clearance Rules: These rules specify the minimum spacing required between different objects on the PCB, such as traces, pads, vias, and components. Adequate clearances are necessary to prevent short circuits and ensure proper insulation.

2. Width Rules: Width rules define the minimum and maximum widths allowed for traces, pads, and other copper features on the PCB. These rules ensure that the traces can carry the required current and are compatible with the manufacturing capabilities of the fabrication facility.

3. Hole Size Rules: These rules specify the minimum and maximum sizes for drilled holes on the PCB, such as those used for through-hole components and vias. Hole size rules ensure that the holes are properly sized for the intended components and can be reliably drilled during manufacturing.

4. Solder Mask Rules: Solder mask rules define the minimum spacing and coverage requirements for the solder mask layer on the PCB. These rules help to prevent solder bridging and ensure proper insulation between exposed copper areas.

5. Silk Screen Rules: Silk screen rules specify the minimum size, spacing, and placement requirements for the silk screen layer, which includes component labels, reference designators, and other text on the PCB.

6. Electrical Rules: Electrical rules check for proper connections, signal integrity, and power delivery on the PCB. These rules verify that the design meets the specified requirements for impedance matching, crosstalk prevention, and voltage drop.

Running DRC in PCB Design Software

Most modern PCB design software packages include built-in DRC functionality. The specific steps to run DRC may vary depending on the software being used, but the general process is as follows:

1. Define Design Rules: Before running DRC, the design rules and constraints must be defined in the PCB design software. These rules are usually based on the manufacturing capabilities of the chosen fabrication facility and the specific requirements of the PCB design.

2. Set Up DRC Parameters: The DRC parameters, such as the clearance values, trace widths, and hole sizes, are configured in the software based on the defined design rules. These parameters can be customized to meet the specific needs of the PCB design.

3. Run DRC: Once the design rules and DRC parameters are set up, the DRC process can be initiated within the PCB design software. The software will analyze the PCB layout and compare it against the defined design rules.

4. Review DRC Results: After the DRC process is complete, the software will generate a report that lists any violations or errors found in the PCB layout. The report typically includes the location, type, and severity of each violation.

5. Resolve Violations: The PCB designer must review the DRC results and resolve any violations or errors identified. This may involve adjusting the PCB layout, modifying the design rules, or seeking clarification from the fabrication facility.

6. Iterate and Rerun DRC: After making the necessary changes to the PCB layout, the DRC process should be rerun to ensure that all violations have been resolved and that no new issues have been introduced.

Best Practices for Using DRC in PCB Design

To effectively utilize DRC in the PCB design process, consider the following best practices:

1. Collaborate with the Fabrication Facility: Work closely with the chosen fabrication facility to understand their manufacturing capabilities and design rule requirements. This collaboration helps to ensure that the PCB design is compatible with their processes and minimizes the risk of manufacturing issues.

2. Start DRC Early: Run DRC early and often throughout the PCB design process. Identifying and resolving issues in the early stages of design is more efficient and cost-effective than discovering problems later in the process.

3. Customize Design Rules: Tailor the design rules to the specific requirements of the PCB design. Consider factors such as the intended application, operating environment, and performance requirements when defining the design rules.

4. Document Design Decisions: Maintain clear documentation of the design rules, constraints, and any deviations or exceptions made during the PCB design process. This documentation helps to ensure consistency and facilitates communication among team members.

5. Continuously Update Design Rules: Keep the design rules up to date with the latest manufacturing capabilities and industry standards. Regularly review and update the design rules to incorporate new technologies, materials, and processes.

DRC Verification Methods

Manual Verification

Manual verification involves visually inspecting the PCB layout to identify potential design rule violations. This method relies on the expertise and attention to detail of the PCB designer. While manual verification can be effective for catching certain types of issues, it is time-consuming and prone to human error, especially for complex PCB designs.

Automated Verification

Automated verification utilizes specialized DRC software to analyze the PCB layout and compare it against the defined design rules. This method is much faster and more reliable than manual verification, as it can quickly scan the entire PCB layout and identify violations based on predefined criteria. Automated DRC is the preferred method for most PCB design projects due to its efficiency and accuracy.

Comparison of Manual and Automated Verification

Automated DRC verification offers significant advantages over manual verification in terms of speed, accuracy, consistency, and scalability. It is particularly beneficial for complex PCB designs with high component density and intricate routing requirements.

Common DRC Errors and How to Resolve Them

Clearance Violations

Clearance violations occur when the spacing between objects on the PCB is less than the specified minimum clearance value. These violations can lead to short circuits and manufacturing issues. To resolve clearance violations:

• Adjust the placement of components, traces, or vias to increase the spacing between objects.
• Modify the trace widths or pad sizes to provide adequate clearance.
• Consider using smaller components or a higher density PCB layout to accommodate the required clearances.

Trace Width Violations

Trace width violations happen when the width of a trace is less than the specified minimum or greater than the maximum allowed width. Insufficient trace widths can cause signal integrity issues and increased resistance, while excessive widths may lead to manufacturing difficulties. To resolve trace width violations:

• Adjust the trace widths to meet the specified requirements.
• Consider using wider traces for high-current or power supply nets.
• Verify that the trace widths are compatible with the manufacturing capabilities of the fabrication facility.

Hole Size Violations

Hole size violations occur when the drilled holes on the PCB are smaller or larger than the specified hole size range. Improper hole sizes can cause difficulties in component assembly and compromise the reliability of the PCB. To resolve hole size violations:

• Ensure that the hole sizes match the requirements of the components being used.
• Verify that the hole sizes are within the manufacturing capabilities of the fabrication facility.
• Consider using standard hole sizes to simplify the manufacturing process and reduce costs.

Solder Mask Violations

Solder mask violations happen when the solder mask coverage or spacing does not meet the specified requirements. Inadequate solder mask can lead to solder bridging and short circuits. To resolve solder mask violations:

• Adjust the solder mask expansion or contraction settings to provide proper coverage.
• Ensure that the solder mask apertures are correctly sized and positioned.
• Verify that the solder mask spacing meets the minimum requirements to prevent bridging.

Silk Screen Violations

Silk screen violations occur when the text, labels, or graphics on the silk screen layer do not meet the specified size, spacing, or placement requirements. Improperly designed silk screens can cause readability issues and manufacturing problems. To resolve silk screen violations:

• Ensure that the text and graphics on the silk screen are sized and spaced according to the manufacturing guidelines.
• Verify that the silk screen elements do not overlap with other objects on the PCB.
• Consider using standard font sizes and styles to improve readability and manufacturability.

Frequently Asked Questions (FAQ)

1. What is the purpose of running DRC in PCB design?
   Running DRC in PCB design helps to ensure that the PCB layout adheres to the specified design rules and constraints. It identifies potential issues and errors that could affect the manufacturability, reliability, and functionality of the PCB.

2. When should DRC be performed during the PCB design process?
   DRC should be performed throughout the PCB design process, starting from the early stages of layout. It is recommended to run DRC regularly as the design progresses to catch and resolve issues as early as possible.

3. Can DRC guarantee a perfect PCB design?
   While DRC is a powerful tool for identifying design rule violations, it cannot guarantee a perfect PCB design. It is important to review the DRC results carefully and use engineering judgment to make appropriate design decisions. Some issues may require manual intervention or consultation with the fabrication facility.

4. How can I ensure that my PCB design meets the manufacturing requirements?
   To ensure that your PCB design meets the manufacturing requirements, follow these steps:

5. Obtain the design rule specifications from your chosen fabrication facility.
6. Set up the design rules and constraints in your PCB design software accordingly.
7. Run DRC regularly and resolve any violations identified.

8. Communicate with the fabrication facility to clarify any uncertainties or special requirements.

9. What should I do if DRC reports a large number of violations?
   If DRC reports a large number of violations, prioritize resolving the most critical issues first. Focus on violations that affect the manufacturability and functionality of the PCB. Collaborate with your team and the fabrication facility to develop a plan for addressing the violations systematically. Consider breaking down the resolution process into smaller tasks and iterate through the DRC process until all violations are resolved.

Conclusion

Design Rule Check (DRC) is a vital step in the PCB design process that helps to ensure the manufacturability, reliability, and functionality of the final product. By verifying the PCB layout against a set of predefined design rules and constraints, DRC identifies potential issues and errors early in the design cycle. This enables PCB designers to make necessary corrections and optimizations before the design is sent for fabrication, saving time, costs, and resources.

Effective utilization of DRC involves collaboration with the fabrication facility, customization of design rules, regular execution of DRC throughout the design process, and thorough review and resolution of identified violations. By following best practices and leveraging the capabilities of modern PCB design software, designers can harness the power of DRC to create high-quality, manufacturable PCBs.

As PCB designs continue to increase in complexity and density, the importance of DRC will only grow. Staying up to date with the latest DRC techniques, design rules, and industry standards is crucial for PCB designers to meet the evolving demands of the electronics industry. By embracing DRC as an integral part of the PCB design workflow, designers can streamline their processes, minimize errors, and deliver reliable, high-performance products to market.
