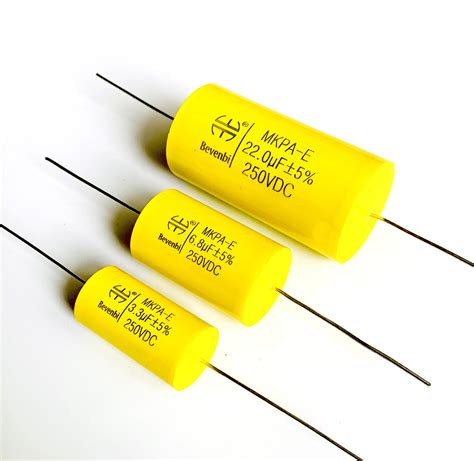

Introduction to Filter capacitors

A filter capacitor is an essential component in electronic circuits, particularly in power supply systems. Its primary function is to smooth out the ripples and noise in the rectified AC voltage, providing a clean and stable DC voltage for the connected load. Filter capacitors are crucial for ensuring the proper operation and longevity of electronic devices by minimizing voltage fluctuations and protecting sensitive components from damage.

What is a Capacitor?

Before diving into the specifics of filter capacitors, it’s important to understand what a capacitor is and how it works. A capacitor is a passive electronic component that stores electrical energy in an electric field. It consists of two conductive plates separated by a dielectric material, such as ceramic, paper, or electrolytic solution.

The capacitance of a capacitor is measured in farads (F) and represents its ability to store electrical charge. The amount of charge a capacitor can store is directly proportional to the applied voltage across its plates. The relationship between capacitance (C), charge (Q), and voltage (V) is given by the equation:

Q = C × V

Types of Capacitors

There are several types of capacitors, each with its own characteristics and applications. Some common types include:

  1. Ceramic capacitors
  2. Electrolytic capacitors
  3. Film capacitors
  4. Tantalum capacitors
  5. Supercapacitors
Type Characteristics Applications
Ceramic High stability, low leakage, wide capacitance range High-frequency circuits, decoupling
Electrolytic High capacitance, polarized, limited life span Power supplies, filtering, coupling
Film Good stability, low loss, high voltage rating Audio circuits, snubbers, filtering
Tantalum High capacitance, small size, polarized Portable devices, decoupling
Supercapacitors Extremely high capacitance, fast charge/discharge Energy storage, backup power

How Does a Filter Capacitor Work?

A filter capacitor works by acting as a temporary storage device for electrical energy. When connected to a rectified AC voltage, the capacitor charges up during the positive half-cycle of the waveform and discharges during the negative half-cycle. This charging and discharging action helps to smooth out the ripples in the voltage, resulting in a more stable DC output.

Rectification and Filtering

In a typical power supply circuit, the AC voltage from the mains is first stepped down using a transformer and then rectified using a bridge rectifier. The rectifier converts the AC voltage into a pulsating DC voltage, which still contains significant ripples. This is where the filter capacitor comes into play.

The filter capacitor is connected in parallel with the load, across the output of the rectifier. As the rectified voltage rises, the capacitor charges up, storing electrical energy. When the rectified voltage falls, the capacitor discharges, supplying current to the load and maintaining a relatively constant voltage level.

Ripple Voltage and Capacitor Selection

The effectiveness of a filter capacitor in reducing ripple voltage depends on its capacitance value and the frequency of the ripple. A larger capacitance value will result in better filtering and a smoother DC output. However, there are practical limits to the capacitance value that can be used, based on factors such as physical size, cost, and the maximum voltage rating of the capacitor.

To select an appropriate filter capacitor, you need to consider the following factors:

  1. Required output voltage and current
  2. Maximum allowable ripple voltage
  3. Rectifier type (half-wave, full-wave, or bridge)
  4. Input AC frequency
  5. Ambient temperature and operating conditions

There are various online tools and calculators available to help you determine the suitable capacitance value for your specific application.

Benefits of Using Filter Capacitors

Using filter capacitors in power supply circuits offers several benefits, including:

  1. Reduced ripple voltage: Filter capacitors significantly reduce the amplitude of ripple voltage, resulting in a cleaner and more stable DC output.

  2. Improved voltage regulation: By maintaining a relatively constant voltage level, filter capacitors help to improve the voltage regulation of the power supply, ensuring that the connected load receives a stable voltage despite variations in load current.

  3. Protection of sensitive components: Many electronic components, such as microcontrollers and sensors, require a clean and stable power supply to function properly. Filter capacitors help to protect these sensitive components from voltage spikes and fluctuations that could cause damage or malfunction.

  4. Increased efficiency: By smoothing out the voltage and current waveforms, filter capacitors can help to improve the overall efficiency of the power supply system, reducing power losses and heat generation.

  5. Extended component life: A clean and stable power supply helps to extend the life of electronic components by minimizing stress and preventing premature failure due to voltage fluctuations or spikes.

Limitations and Considerations

While filter capacitors are highly effective in reducing ripple voltage and stabilizing DC output, there are some limitations and considerations to keep in mind:

  1. Capacitor aging: Electrolytic capacitors, which are commonly used as filter capacitors, have a limited lifespan due to the gradual evaporation of the electrolyte. As the capacitor ages, its capacitance decreases, and its equivalent series resistance (ESR) increases, reducing its filtering effectiveness.

  2. Temperature sensitivity: The performance of filter capacitors can be affected by temperature variations. Electrolytic capacitors, in particular, are sensitive to high temperatures, which can accelerate the aging process and reduce their capacitance.

  3. Voltage rating: It’s important to select a filter capacitor with a voltage rating higher than the expected maximum voltage of the circuit. Exceeding the voltage rating can cause the capacitor to fail or even explode, potentially damaging other components in the circuit.

  4. Inrush current: When a filter capacitor is first connected to a power source, it can draw a large inrush current as it charges up. This can stress the capacitor and other components in the circuit, such as the rectifier diodes. To mitigate this issue, a series resistor or an inrush current limiter can be used.

  5. Leakage current: Filter capacitors, especially electrolytic types, have a small amount of leakage current that flows through the dielectric material. This leakage current can contribute to power losses and may need to be considered in low-power applications.

Maintenance and Troubleshooting

To ensure the long-term reliability and performance of filter capacitors, it’s important to perform regular maintenance and troubleshooting. Some key steps include:

  1. Visual inspection: Periodically inspect the filter capacitors for signs of physical damage, such as bulging, leaking, or corrosion. Any capacitors showing these signs should be replaced immediately.

  2. ESR measurement: The equivalent series resistance (ESR) of a filter capacitor can be measured using an ESR meter or an impedance analyzer. An increase in ESR indicates capacitor degradation and may require replacement.

  3. Capacitance measurement: The capacitance of a filter capacitor can be measured using a capacitance meter or an LCR meter. A significant decrease in capacitance from the nominal value may indicate a failing capacitor.

  4. Temperature monitoring: In applications where filter capacitors are exposed to high temperatures, it’s important to monitor the ambient temperature and ensure that it stays within the specified operating range of the capacitors.

  5. Proper storage: When storing filter capacitors, keep them in a cool, dry place away from direct sunlight and heat sources. Electrolytic capacitors should be stored with the leads shorted together to prevent the formation of oxide layers on the aluminum foil.

Frequently Asked Questions (FAQ)

  1. Q: What is the difference between a polarized and a non-polarized capacitor?
    A: Polarized capacitors, such as electrolytic capacitors, have a specific positive and negative terminal and must be connected with the correct polarity in a circuit. Non-polarized capacitors, such as ceramic or film capacitors, can be connected in either direction without affecting their performance.

  2. Q: Can I replace a filter capacitor with a higher capacitance value?
    A: Yes, you can replace a filter capacitor with a higher capacitance value to improve the filtering performance. However, make sure that the new capacitor has the same or higher voltage rating and that it physically fits in the available space.

  3. Q: What happens if a filter capacitor fails?
    A: If a filter capacitor fails, it can cause various issues in the circuit, such as increased ripple voltage, reduced output voltage, or complete loss of output. In some cases, a failed capacitor can short circuit, potentially damaging other components or causing a fire hazard.

  4. Q: How often should I replace filter capacitors?
    A: The lifespan of filter capacitors depends on factors such as the type of capacitor, operating temperature, and ripple current. As a general rule, electrolytic capacitors should be replaced every 5-10 years, while other types of capacitors can last longer. It’s important to monitor the performance of filter capacitors and replace them when necessary.

  5. Q: Can I use a filter capacitor to reduce electromagnetic interference (EMI)?
    A: While filter capacitors can help to reduce high-frequency noise and ripple in a power supply, they are not specifically designed to reduce EMI. For EMI suppression, specialized components such as EMI filters, ferrite beads, or shielding materials are typically used in conjunction with proper PCB layout and grounding techniques.


Filter capacitors play a crucial role in ensuring the proper operation and reliability of electronic devices by providing a clean and stable DC voltage. By understanding the working principles, selection criteria, and maintenance requirements of filter capacitors, engineers and technicians can design and troubleshoot power supply circuits more effectively.

As technology advances and power requirements become more stringent, the importance of filter capacitors will only continue to grow. Staying up-to-date with the latest developments in capacitor technology and best practices in power supply design will be essential for engineers working on a wide range of applications, from consumer electronics to industrial automation and renewable energy systems.
