Introduction to Gerber Formats

Gerber formats are a set of file formats used in the electronic design automation (EDA) industry for the design and manufacture of printed circuit boards (PCBs). These formats were originally developed by the Gerber Systems Corp., which was later acquired by Ucamco. Gerber files contain information about the various layers of a PCB, including the copper traces, solder mask, silkscreen, and drill holes.

Types of Gerber Formats

There are several types of Gerber formats, each serving a specific purpose in the PCB design and manufacturing process:

  1. RS-274-D: The oldest Gerber format, used for vector image data.
  2. RS-274-X: An extended version of RS-274-D, supporting aperture definitions and other enhancements.
  3. Gerber X2: The latest Gerber format, introduced in 2014, which includes embedded aperture definitions and additional metadata for improved design and manufacturing processes.

The Importance of Gerber Formats in PCB Design and Manufacturing

Gerber formats play a crucial role in the PCB design and manufacturing process. They provide a standardized way for designers to communicate their designs to manufacturers, ensuring that the final product matches the intended specifications.

Gerber Files in the PCB Design Workflow

In a typical PCB design workflow, the designer creates the PCB layout using EDA software. Once the design is complete, the software generates a set of Gerber files, each representing a specific layer of the PCB. These files are then sent to the manufacturer, who uses them to fabricate the physical PCB.

Advantages of Using Gerber Formats

Using Gerber formats offers several advantages in the PCB design and manufacturing process:

  1. Standardization: Gerber formats provide a standardized way to represent PCB designs, enabling designers and manufacturers to work together seamlessly.
  2. Compatibility: Gerber files can be read by a wide range of EDA software and manufacturing equipment, ensuring compatibility across different platforms.
  3. Accuracy: Gerber formats allow for precise representation of PCB features, minimizing the risk of errors during manufacturing.
  4. Efficiency: By using a standardized format, designers and manufacturers can streamline their workflows and reduce the time and cost associated with PCB Production.

Understanding Gerber File Structure

To work effectively with Gerber files, it’s essential to understand their structure and the various elements they contain.

Gerber File Extensions

Gerber files are typically identified by their file extensions, which indicate the specific layer or aspect of the PCB they represent. Some common file extensions include:

Extension Description
.GTL Top copper layer
.GBL Bottom copper layer
.GTO Top silkscreen (overlay)
.GBO Bottom silkscreen (overlay)
.GTS Top solder mask
.GBS Bottom solder mask
.GML Mill layer (board outline)
.DRL Drill file

Apertures and D-Codes

Gerber files use apertures to define the shapes and sizes of the features on a PCB layer. Each aperture is assigned a unique D-Code, which is referenced throughout the file to draw the desired features.

Apertures can be defined in several ways:

  1. Standard apertures: A set of predefined shapes, such as circles, rectangles, and ovals.
  2. Custom apertures: User-defined shapes created using aperture macros or embedded aperture definitions (in Gerber X2).
  3. Aperture lists: A separate file containing the definitions of all apertures used in the Gerber file.

Coordinate Systems and Units

Gerber files use a coordinate system to specify the location of features on the PCB. The most common coordinate systems are:

  1. Absolute coordinates: Each point is specified relative to the origin (0, 0) of the PCB.
  2. Incremental coordinates: Each point is specified relative to the previous point.

The units used in Gerber files can be either inches or millimeters, depending on the designer’s preference and the manufacturing requirements.

Creating and Interpreting Gerber Files

Creating and interpreting Gerber files requires a basic understanding of the format and the use of appropriate software tools.

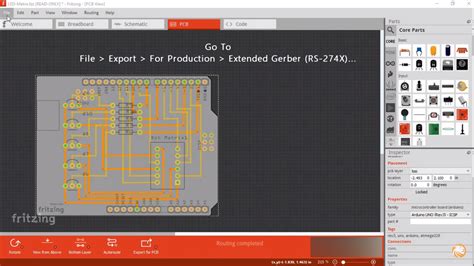

Creating Gerber Files in EDA Software

Most EDA software packages, such as Altium Designer, KiCad, and Eagle, have built-in functionality for generating Gerber files from PCB designs. The process typically involves the following steps:

  1. Complete the PCB layout design.
  2. Define the Gerber output settings, such as file format, coordinate system, and units.
  3. Generate the Gerber files for each layer of the PCB.
  4. Review the generated files to ensure accuracy and completeness.

Interpreting Gerber Files

Interpreting Gerber files requires the use of specialized software, such as GC-Prevue, ViewMate, or CAM350. These tools allow users to view and analyze the contents of Gerber files, including:

  1. Displaying the PCB Layers and features.
  2. Measuring distances and dimensions.
  3. Checking for design rule violations and manufacturing feasibility.
  4. Comparing Gerber files to the original PCB design.

By using these tools, designers and manufacturers can ensure that the Gerber files accurately represent the intended PCB design and are suitable for production.

Best Practices for Working with Gerber Formats

To ensure smooth and efficient PCB design and manufacturing processes, it’s important to follow best practices when working with Gerber formats.

Naming Conventions

Use clear and consistent naming conventions for your Gerber files to avoid confusion and errors. Include the PCB name, layer identifier, and any additional relevant information in the file name.

Example: PCB_Name_Layer_Identifier.gbr

File Organization

Keep your Gerber files organized by placing them in a dedicated folder for each PCB project. Include a README file or documentation that explains the contents of each file and any special instructions for the manufacturer.

Design Rule Checks (DRC)

Before generating Gerber files, always run a Design Rule Check (DRC) on your PCB layout to identify and resolve any potential issues, such as trace spacing violations or unconnected pads.

Communicating with Manufacturers

When sending Gerber files to a manufacturer, provide clear instructions and communicate any special requirements or considerations. Be prepared to answer questions and provide additional information as needed to ensure a smooth manufacturing process.

Version Control

Use version control systems, such as Git or SVN, to manage your Gerber files and track changes over time. This can help you maintain a history of your PCB designs and collaborate with others more effectively.

Frequently Asked Questions (FAQ)

  1. What is the difference between RS-274-D and RS-274-X Gerber formats?
    RS-274-D is the older Gerber format, which uses a more limited set of commands and does not support aperture definitions. RS-274-X is an extended version that includes aperture definitions and other enhancements, making it more versatile and widely used in modern PCB design.

  2. Can I use different units (inches or millimeters) for different layers in the same PCB design?
    It is generally recommended to use the same units for all layers in a PCB design to avoid confusion and potential errors during manufacturing. If you must use different units, clearly communicate this to the manufacturer and ensure that your EDA software is configured to generate Gerber files with the correct units for each layer.

  3. What should I do if my manufacturer reports issues with my Gerber files?
    If a manufacturer reports issues with your Gerber files, first verify that the files were generated correctly and match your intended PCB design. If the files are correct, work with the manufacturer to understand the specific issues they encountered and determine if any changes need to be made to your design or the Gerber files to ensure successful manufacturing.

  4. Can I use Gerber files for other types of electronic designs, such as flexible circuits or high-density interconnects (HDI)?
    Yes, Gerber formats can be used for various types of electronic designs, including flexible circuits and HDI. However, these designs may require additional considerations and specialized manufacturing techniques, so it’s essential to work closely with your manufacturer and ensure that your Gerber files accurately represent your design intent.

  5. Are there any alternatives to Gerber formats for PCB design and manufacturing?
    While Gerber formats are the most widely used and accepted standard in the PCB industry, there are some alternative formats, such as ODB++ (Open Database++) and IPC-2581. These formats offer additional features and capabilities but may not be as widely supported by EDA software and manufacturers. It’s important to consult with your manufacturer and ensure compatibility before using alternative formats.

Conclusion

Gerber formats are essential for the design and manufacture of printed circuit boards, providing a standardized way to represent PCB designs and communicate them to manufacturers. By understanding the various types of Gerber formats, their structure, and best practices for working with them, designers can create accurate and efficient PCB designs that are ready for production.

As PCB technology continues to evolve, Gerber formats will likely adapt to support new features and requirements. By staying informed about the latest developments in Gerber formats and EDA software, designers can ensure that their skills and knowledge remain up-to-date and relevant in the ever-changing world of electronic design and manufacturing.
