Trimpot Pinout: Understanding the Features, Uses, and Configuration.

Introduction to Trimpot Pinout

A trimpot, short for trimming potentiometer, is a small, adjustable resistor that allows for precise tuning of electronic circuits. Understanding the trimpot pinout is crucial for effectively using these components in various applications. In this comprehensive article, we will explore the features, uses, and configuration of trimpot pinouts, providing you with the knowledge needed to incorporate them into your projects successfully.

What is a Trimpot?

A trimpot is a miniature potentiometer designed for fine-tuning and calibration purposes. Unlike regular potentiometers, which are typically adjusted by hand, trimpots are adjusted using a small screwdriver or a similar tool. They are commonly used in electronic circuits to set reference voltages, adjust signal levels, or calibrate sensors.

Key Features of Trimpots

1. Size: Trimpots are compact, making them suitable for space-constrained applications.
2. Adjustment: They feature a small adjustment screw that allows for precise resistance changes.
3. Resistance Range: Trimpots are available in various resistance ranges to suit different requirements.
4. Mounting: They can be through-hole or surface-mount, depending on the Circuit Board Design.

Trimpot Pinout Configuration

To effectively use trimpots in your projects, it’s essential to understand their pinout configuration. The pinout refers to the arrangement and function of the pins on the trimpot package. Most trimpots have three pins, each serving a specific purpose.

Standard Trimpot Pinout

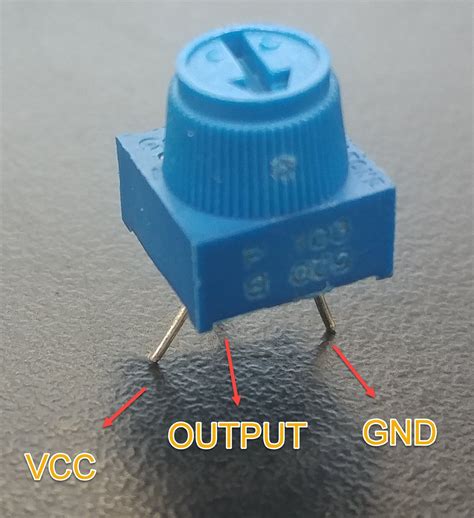

The standard trimpot pinout consists of three pins:

1. Counterclockwise Terminal (Pin 1): This pin connects to one end of the resistive element. It represents the minimum resistance value when the wiper is fully turned counterclockwise.

2. Wiper (Pin 2): The wiper pin is the adjustable terminal that slides along the resistive element. Its position determines the resistance between the wiper and the counterclockwise terminal (Pin 1) and between the wiper and the clockwise terminal (Pin 3).

3. Clockwise Terminal (Pin 3): This pin connects to the other end of the resistive element. It represents the maximum resistance value when the wiper is fully turned clockwise.

By adjusting the wiper position, you can vary the resistance between the wiper and the two end terminals, allowing for precise control over the desired parameter in your circuit.

Types of Trimpots

Trimpots come in different packages and mounting styles to accommodate various circuit board designs and applications. The two main types of trimpots are through-hole and surface-mount.

Through-Hole Trimpots

Through-hole trimpots have long pins that are inserted through holes in the circuit board and soldered on the opposite side. They are easy to install and replace, making them suitable for prototype designs and low-volume production.

Surface-Mount Trimpots

Surface-mount trimpots, also known as SMD trimpots, have short pins or pads that are soldered directly onto the surface of the circuit board. They are smaller and more compact than through-hole trimpots, making them ideal for high-density circuits and automated assembly processes.

Trimpot Resistance Range and Taper

Trimpots are available in a wide range of resistance values to suit different application requirements. The resistance range refers to the minimum and maximum resistance values that the trimpot can provide. Common resistance ranges include:

• 100 ohms to 1 megohm
• 500 ohms to 5 megohms
• 1 kiloohm to 10 megohms

In addition to the resistance range, trimpots also have different tapers, which define how the resistance changes with the wiper position. The two main types of tapers are linear and logarithmic.

Linear Taper

In a linear taper trimpot, the resistance changes linearly with the wiper position. This means that the resistance change is directly proportional to the wiper movement. Linear taper trimpots are commonly used in applications where a uniform resistance change is desired, such as in voltage dividers or analog control circuits.

Logarithmic Taper

Logarithmic taper trimpots, also known as audio taper trimpots, have a non-linear resistance change with the wiper position. The resistance change is logarithmic, meaning that the resistance increases or decreases more rapidly at one end of the wiper travel compared to the other. Logarithmic taper trimpots are often used in audio applications, where the human ear perceives sound levels logarithmically.

Applications of Trimpots

Trimpots find use in a wide range of electronic applications, from simple hobbyist projects to complex industrial systems. Some common applications include:

1. Voltage Adjustment: Trimpots can be used to set reference voltages or adjust the output voltage of power supplies and regulators.

2. Sensor Calibration: In sensor-based systems, trimpots are used to calibrate the sensor output, compensating for variations in sensitivity or offset.

3. Gain Control: Trimpots can be used to adjust the gain of amplifiers, allowing for precise control over the signal level.

4. Frequency Tuning: In oscillator circuits, trimpots are used to fine-tune the frequency of the generated signal.

5. Threshold Setting: Trimpots are employed to set threshold levels in comparator circuits, enabling the detection of specific voltage or current levels.

6. Bias Adjustment: In analog circuits, trimpots are used to adjust the bias current or voltage of active components, such as transistors or op-amps.

Configuring Trimpots in a Circuit

When incorporating trimpots into your electronic circuits, it’s essential to consider the specific requirements of your application and follow proper configuration guidelines.

Voltage Divider Configuration

One of the most common ways to use a trimpot is in a voltage divider configuration. In this setup, the trimpot is connected between a fixed voltage source (e.g., VCC) and ground, with the wiper connected to the desired output point. By adjusting the wiper position, you can vary the output voltage between the two end terminals.

Series Configuration

In a series configuration, the trimpot is connected in series with the load or component being controlled. This allows for precise adjustment of the current flowing through the load or the voltage drop across it.

Parallel Configuration

In a parallel configuration, the trimpot is connected in parallel with the load or component being controlled. This setup is commonly used for adjusting the gain or sensitivity of a circuit.

Tips for Working with Trimpots

When working with trimpots in your electronic projects, consider the following tips to ensure optimal performance and reliability:

1. Use the Appropriate Adjustment Tool: Use a suitable screwdriver or adjustment tool that fits the trimpot’s adjustment screw properly to avoid damaging the component.

2. Be Gentle: Apply minimal force when adjusting the trimpot to prevent mechanical damage or excessive wear on the wiper.

3. Consider the Environment: If your project will be exposed to harsh environments, such as extreme temperatures or vibrations, choose trimpots with suitable ratings and protective coatings.

4. Use Multiturn Trimpots for Precision: For applications requiring high precision, consider using multiturn trimpots, which allow for finer adjustments over a larger resistance range.

5. Document the Settings: Keep a record of the trimpot settings for future reference, especially if your project requires specific calibration or tuning.

Frequently Asked Questions (FAQ)

1. What is the difference between a trimpot and a regular potentiometer?
   A trimpot is a miniature potentiometer designed for fine-tuning and calibration purposes. It is typically adjusted using a small screwdriver, while regular potentiometers are usually adjusted by hand.

2. Can I replace a trimpot with a fixed resistor?
   In some cases, you can replace a trimpot with a fixed resistor if the specific resistance value is known and does not require future adjustments. However, trimpots offer the flexibility to fine-tune the resistance value, which is essential in many applications.

3. How do I determine the resistance value of a trimpot?
   To determine the resistance value of a trimpot, you can use a multimeter set to the resistance measurement mode. Connect the multimeter probes to the two end terminals of the trimpot and measure the resistance while adjusting the wiper position.

4. Are trimpots polarity-sensitive?
   Most trimpots are not polarity-sensitive, meaning they can be connected in either direction. However, it’s essential to refer to the manufacturer’s datasheet or specifications to confirm the polarity requirements, if any.

5. Can I use a trimpot for high-current applications?
   Trimpots are typically designed for low-current applications. For high-current applications, it’s recommended to use a trimpot in conjunction with a suitable high-power resistor or consider alternative solutions such as power resistors or rheostats.

Conclusion

Understanding the trimpot pinout is crucial for effectively using these versatile components in your electronic projects. By familiarizing yourself with the features, uses, and configuration of trimpots, you can harness their potential for precise tuning, calibration, and adjustment.

Remember to consider factors such as resistance range, taper, and mounting style when selecting trimpots for your specific application. Additionally, follow proper configuration guidelines and tips to ensure optimal performance and reliability.

With the knowledge gained from this comprehensive article, you are now equipped to incorporate trimpots into your projects confidently. Embrace the flexibility and precision that trimpots offer, and unlock new possibilities in your electronic designs.
