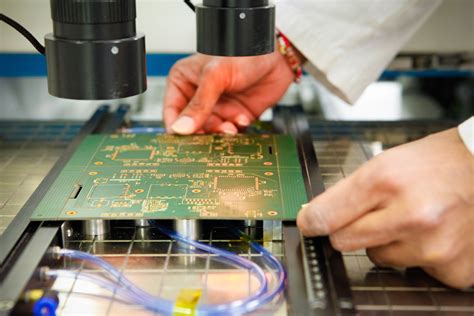

What is PCB Fabrication?
PCB fabrication is the process of manufacturing printed circuit boards (PCBs) that are used to mechanically support and electrically connect electronic components. The PCB serves as a base for the components and the copper traces etched onto the board act as wires to carry electrical current.
The PCB fabrication process involves several steps:
-
Design: The PCB design is created using specialized software, specifying component placement, trace routing, and board dimensions.
-
Printing: The design is printed onto a transparent film or directly onto the copper-clad board.
-
Etching: The exposed copper is etched away, leaving only the desired traces.
-
Drilling: Holes are drilled into the board to allow component leads to pass through.
-
Plating: A thin layer of copper is applied to the entire board and the holes to ensure conductivity.
-
Solder mask application: A layer of polymer is applied to protect the copper traces from oxidation and prevent solder bridges during assembly.
-
Silkscreen printing: Text and symbols are printed onto the board to label components and show assembly instructions.
-
Surface finish application: The exposed copper is coated to prevent oxidation and enhance solderability.
-
Electrical testing: The finished board is tested to ensure all connections are functioning properly.
Types of PCBs
There are three main types of PCBs:
| Type | Description |
|---|---|
| Single-sided | Components and traces on one side only |
| Double-sided | Components and traces on both sides |
| Multi-layer | Multiple single/double-sided boards laminated together |
The choice of PCB type depends on the complexity of the circuit, the available space, and the required performance.
Advantages of Quick Turn PCB Fabrication
Quick turn PCB fabrication refers to the rapid production of PCBs, typically within a few days or even hours. This is in contrast to standard lead times which can be several weeks.
The advantages of quick turn PCB fabrication include:
1. Faster Time-to-Market
In today’s competitive marketplace, getting products to market quickly is crucial. Quick turn PCB fabrication allows prototypes to be built and tested rapidly, reducing the overall development time.
2. Lower Inventory Costs
With quick turn fabrication, boards can be ordered in smaller quantities as needed, rather than in large batches. This reduces inventory costs and minimizes waste from obsolete designs.
3. Improved Flexibility
Quick turn fabrication allows for design changes to be implemented quickly. This is particularly valuable in the prototyping phase where designs may go through several iterations.
4. Higher Quality
Many quick turn PCB manufacturers use state-of-the-art equipment and processes to ensure high quality boards. Automated optical inspection (AOI) and electrical testing catch defects early.
Choosing a Quick Turn PCB Manufacturer
When selecting a quick turn PCB manufacturer, consider the following factors:
1. Capabilities
Ensure the manufacturer has the capabilities to produce the type of PCB you require, in terms of number of layers, materials, surface finishes, etc.
2. Lead Times
Check the manufacturer’s standard and expedited lead times to ensure they meet your timeline.
3. Quality Control
Look for manufacturers with stringent quality control procedures, such as ISO 9001 certification.
4. Customer Support
Good customer support, including knowledgeable sales engineers and responsive service, can make a big difference.
5. Pricing
While quick turn fabrication may cost more than standard lead times, prices can vary significantly between manufacturers.
PCB Design Considerations for Quick Turn Fabrication
To ensure your PCB design is suitable for quick turn fabrication, keep these considerations in mind:
1. Design Rules
Adhere to the manufacturer’s design rules for minimum trace width and spacing, hole sizes, etc. Violating these rules can lead to delays or additional costs.
2. Standardized Materials
Whenever possible, use standard PCB materials that the manufacturer keeps in stock. Specialized materials may have longer lead times.
3. Panelization
Design your board to fit efficiently onto a standard panel size to minimize waste and cost.
4. Fiducials
Include fiducial marks on your design to assist with automated assembly.
5. Solder Mask and Silkscreen
Use solder mask and silkscreen strategically to improve aesthetics and assembly.
The Future of Quick Turn PCB Fabrication
As electronic devices continue to get smaller and more complex, the demand for quick turn PCB fabrication will only increase. Manufacturers are continually investing in new technologies to reduce lead times and improve quality.
Some of the trends shaping the future of quick turn PCB fabrication include:
1. Automated Processes
Increased automation in PCB fabrication, from design to final testing, will reduce lead times and human error.
2. Advanced Materials
New PCB materials, such as high-frequency laminates and flexible substrates, will enable new applications.
3. 3D Printing
Additive manufacturing techniques for PCBs, such as inkjet printing of conductive inks, could revolutionize prototyping.
4. Artificial Intelligence
AI-powered design tools will help optimize PCB layouts for manufacturability and performance.
5. Environmentally Friendly Practices
A focus on environmentally friendly materials and processes, such as lead-free solders and recyclable substrates, will grow.
FAQ
1. What is the difference between quick turn and standard PCB fabrication?
Quick turn PCB fabrication prioritizes speed, with lead times of a few days or even hours. Standard fabrication has longer lead times, typically several weeks, but may offer more options for customization and larger quantities.
2. Is quick turn fabrication more expensive?
Yes, quick turn fabrication often comes at a premium price due to the expedited processes and rush charges. However, the ability to get boards quickly can outweigh the additional cost, particularly for urgent prototyping.
3. What are the limitations of quick turn fabrication?
Quick turn fabrication may have limitations on the complexity of the PCB design, such as the number of layers or the use of specialized materials. Some advanced features or finishes may not be available on a quick turn basis.
4. How do I prepare my design files for quick turn fabrication?
Most manufacturers will provide detailed specifications for the design files they accept, including file formats, layer designations, and drill file requirements. Following these guidelines carefully will help avoid delays.
5. What should I look for in a quick turn PCB manufacturer?
Look for a manufacturer with a proven track record of meeting quick turn deadlines with high quality boards. They should have clear specifications, good communication, and responsive customer service. Certifications such as ISO 9001 can provide assurance of their processes.
Conclusion
Quick turn PCB fabrication is a valuable service for anyone needing high-quality printed circuit boards in a short timeframe. By understanding the process, advantages, and design considerations, you can leverage quick turn fabrication to accelerate your product development and stay ahead of the competition. As technologies advance, quick turn fabrication will continue to evolve to meet the changing needs of the electronics industry.
