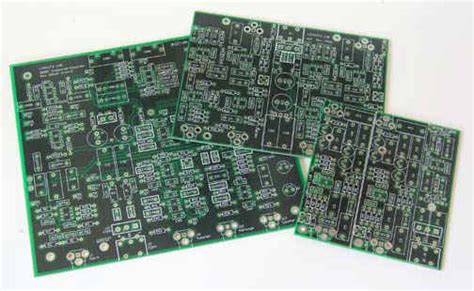

Introduction to PCB Ordering
Printed Circuit Boards (PCBs) are essential components in modern electronics. They provide a platform for mounting and connecting electronic components, enabling the creation of complex circuits. With the increasing demand for custom PCBs in various industries, online PCB ordering has become a convenient and efficient solution for businesses and individuals alike.
What is a PCB?
A PCB is a flat board made of insulating material, such as fiberglass or plastic, with conductive copper traces printed on its surface. These traces connect the electronic components mounted on the board, forming a functional circuit. PCBs can be single-sided (components on one side), double-sided (components on both sides), or multi-layered (multiple layers of traces and insulation).
Advantages of Online PCB Ordering
Online PCB ordering offers several advantages over traditional methods:
-
Convenience: You can place your order from anywhere, at any time, without the need to visit a physical store or communicate with a sales representative.
-
Speed: Online ordering streamlines the process, reducing the time required to receive your PCBs. Many online PCB manufacturers offer quick turnaround times, with some providing same-day or next-day shipping.
-
Customization: Online PCB ordering platforms often provide user-friendly design tools and templates, allowing you to create custom PCBs tailored to your specific requirements.
-
Cost-effective: Online PCB manufacturers typically offer competitive pricing due to reduced overhead costs and automated processes.
-
Wide selection: Online PCB ordering gives you access to a wide range of PCB types, materials, and specifications, ensuring that you can find the perfect PCB for your project.
How to Order PCBs Online
Step 1: Prepare Your PCB Design
Before placing your online PCB order, you need to have your PCB design ready. You can use various PCB design software, such as Eagle, KiCad, or Altium Designer, to create your PCB layout. Ensure that your design adheres to the manufacturer’s specifications and design rules.
Step 2: Choose an Online PCB Manufacturer
Research and compare different online PCB manufacturers based on their capabilities, pricing, turnaround times, and customer reviews. Some popular online PCB manufacturers include:
- JLCPCB
- PCBWay
- OSH Park
- Seeed Studio
- EasyEDA
Step 3: Upload Your PCB Design Files
Once you have selected an online PCB manufacturer, navigate to their website and create an account (if required). Upload your PCB design files, which typically include Gerber files, drill files, and a bill of materials (BOM). Most manufacturers accept common file formats, such as RS-274X or ODB++.
Step 4: Specify Your PCB Requirements
After uploading your design files, you will need to specify your PCB requirements, such as:
- PCB quantity
- PCB thickness
- Copper weight
- Solder mask color
- Silkscreen color
- Surface finish (e.g., HASL, ENIG, or OSP)
Some manufacturers offer additional options, such as impedance control or via filling, which you can select if necessary.
Step 5: Review and Place Your Order
Before finalizing your order, carefully review the PCB specifications and the manufacturer’s terms and conditions. Double-check your design files to ensure they are correct and complete. Once you are satisfied, proceed to place your order and make the payment.
Step 6: Track Your Order and Receive Your PCBs
After placing your order, you will typically receive an order confirmation and a tracking number. Most online PCB manufacturers provide real-time order tracking, allowing you to monitor the progress of your PCBs. Once your PCBs are manufactured and shipped, you will receive them at your specified delivery address.
Factors to Consider When Ordering PCBs Online
PCB Specifications
When ordering PCBs online, it is crucial to understand and specify the correct PCB specifications to ensure that your PCBs meet your requirements. Some key specifications to consider include:
| Specification | Description |
|---|---|
| Layers | The number of conductive layers in the PCB (e.g., single-sided, double-sided, or multi-layer) |
| Material | The base material of the PCB (e.g., FR-4, Rogers, or Polyimide) |
| Thickness | The thickness of the PCB, typically measured in millimeters (e.g., 0.8mm, 1.6mm, or 2.0mm) |
| Copper Weight | The thickness of the copper traces, measured in ounces per square foot (e.g., 1oz, 2oz, or 3oz) |
| Minimum Trace Width | The smallest allowable width of the copper traces on the PCB |
| Minimum Hole Size | The smallest allowable diameter of the drilled holes on the PCB |
| Surface Finish | The protective coating applied to the copper traces (e.g., HASL, ENIG, or OSP) |
Manufacturing Time and Cost
The manufacturing time and cost of your PCBs will depend on several factors, such as:
- PCB complexity
- Quantity
- Manufacturing process (e.g., standard or expedited)
- Shipping method
Online PCB manufacturers often provide instant quotes based on your PCB specifications, allowing you to compare prices and turnaround times easily. Some manufacturers offer discounts for larger quantities or provide special offers for first-time customers.
Quality and Reliability
When ordering PCBs online, it is essential to consider the quality and reliability of the manufacturer. Look for manufacturers that have a proven track record of producing high-quality PCBs and have positive customer reviews. Some manufacturers provide certifications, such as ISO 9001 or UL listing, which can be an indicator of their commitment to quality.
Additionally, consider the manufacturer’s quality control processes, such as automated optical inspection (AOI) or electrical testing, to ensure that your PCBs are free from defects and meet your specifications.
Advanced PCB Ordering Options
Prototype and Low-Volume Production
Online PCB ordering is particularly suitable for prototype and low-volume production. Many online PCB manufacturers offer services specifically tailored for these needs, such as quick turnaround times, low minimum order quantities (MOQs), and affordable pricing.
When ordering prototypes or low-volume PCBs, consider the following:
- Opt for standard specifications to minimize cost and lead time
- Use online design tools or templates provided by the manufacturer to simplify the design process
- Take advantage of any special offers or discounts for prototype orders
High-Volume Production
For high-volume PCB production, online ordering can still be a viable option. However, you may need to consider additional factors, such as:
- Negotiating pricing and lead times with the manufacturer
- Ensuring that the manufacturer has the capacity and capability to handle your order volume
- Establishing a long-term relationship with the manufacturer for consistent quality and support
Some online PCB manufacturers offer dedicated services for high-volume production, including supply chain management, inventory management, and logistics support.
PCB Assembly Services
In addition to PCB fabrication, many online PCB manufacturers also offer PCB assembly services. This can be a convenient option if you need your PCBs populated with components and ready for use. When ordering PCB assembly services, you will typically need to provide the following:
- Bill of Materials (BOM): A list of all the components required for your PCB assembly
- Pick and Place files: Files that specify the locations and orientations of the components on the PCB
- Assembly instructions: Any special instructions or requirements for the assembly process
PCB assembly services can save you time and effort, especially if you do not have in-house assembly capabilities or if you require specialized assembly techniques, such as surface mount technology (SMT) or through-hole assembly.
Frequently Asked Questions (FAQ)
- What file formats do I need to provide when ordering PCBs online?
-
Most online PCB manufacturers accept Gerber files (RS-274X) and drill files (Excellon format). Some manufacturers also accept ODB++ files, which contain both the PCB design and the manufacturing data in a single file format.
-
How long does it take to receive my PCBs after placing an online order?
-
The turnaround time for online PCB orders varies depending on the manufacturer and the complexity of your PCBs. Typically, prototype and low-volume orders can be delivered within 1-2 weeks, while high-volume orders may take several weeks or more. Some manufacturers offer expedited services for faster delivery.
-
What is the minimum order quantity (MOQ) for online PCB orders?
-
The MOQ for online PCB orders varies between manufacturers. Some manufacturers offer low MOQs (e.g., 5 or 10 pieces) for prototype and low-volume production, while others may require higher MOQs for cost-effectiveness. It is essential to check the manufacturer’s MOQ before placing your order.
-
Can I get a discount for larger PCB quantities?
-
Yes, many online PCB manufacturers offer volume discounts for larger PCB quantities. The discount structure varies between manufacturers, so it is essential to compare prices and negotiate with the manufacturer for the best deal.
-
What should I do if I encounter issues with my PCBs after receiving them?
- If you encounter issues with your PCBs, such as manufacturing defects or non-conformance to your specifications, contact the manufacturer’s customer support immediately. Most reputable online PCB manufacturers have a quality guarantee and will work with you to resolve any issues, such as providing a refund or replacement PCBs.
Conclusion
Online PCB ordering has revolutionized the way businesses and individuals source PCBs for their projects. With its convenience, speed, customization options, and cost-effectiveness, online PCB ordering has become the preferred choice for many. By understanding the PCB ordering process, considering key factors such as specifications, manufacturing time, cost, and quality, and exploring advanced options like prototype, low-volume, and high-volume production, you can leverage online PCB ordering to bring your electronic projects to life efficiently and effectively.
