What are PCB Layers?
Printed Circuit Board (PCB) layers refer to the number of conductive copper layers that make up a PCB. These layers are stacked and laminated together with insulating material to create the final board. Each layer serves a specific purpose in the design, such as providing power, ground, or signal routing.
The number of layers in a PCB can vary depending on the complexity of the circuit and the specific requirements of the application. PCBs can have as few as one layer or as many as 50 or more layers in high-density designs.
Why are Multiple PCB Layers Used?
There are several reasons why multiple PCB layers are used in electronic designs:
-
Increased Density: As electronic devices become more compact and feature-rich, the demand for higher component density on PCBs increases. Multiple layers allow for more complex routing and component placement, enabling designers to fit more functionality into a smaller space.
-
Improved Signal Integrity: With the increasing speed and frequency of modern electronic circuits, maintaining signal integrity becomes crucial. Multiple layers help minimize crosstalk, electromagnetic interference (EMI), and signal reflections by providing dedicated layers for power, ground, and signal routing. This separation of layers reduces noise and ensures cleaner, more reliable signal transmission.
-
Enhanced Power Distribution: Multilayer PCBs allow for the creation of power and ground planes, which are large copper areas that provide low-impedance power distribution throughout the board. These planes help maintain stable voltage levels, reduce voltage drops, and minimize noise in the power supply lines.
-
Better Heat Dissipation: As components become more powerful and generate more heat, effective thermal management becomes essential. Multilayer PCBs can incorporate dedicated layers for heat dissipation, such as thick copper layers or thermal vias, to transfer heat away from critical components and prevent overheating.
-
Mechanical Strength: Adding more layers to a PCB increases its overall thickness and rigidity. This improved mechanical strength helps prevent warping, twisting, or bending of the board, especially in larger designs or those subjected to physical stress.
Common PCB Layer Stackups

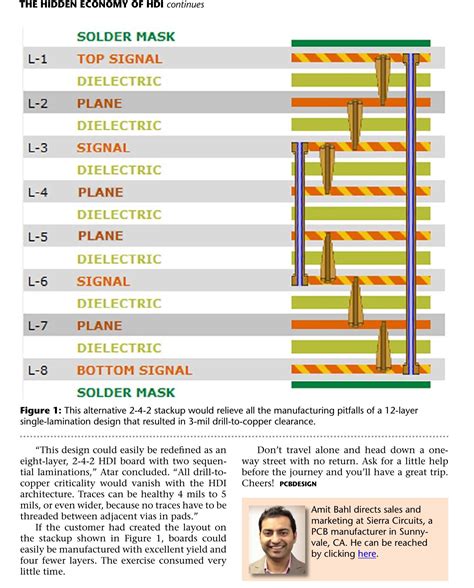

PCB layer stackups refer to the arrangement and order of the conductive and insulating layers in a multilayer PCB. The choice of layer stackup depends on various factors, such as the number of layers, signal requirements, power distribution, and manufacturing constraints. Here are some common PCB layer stackups:
| Layers | Stackup | Description |
|---|---|---|
| 2 | Signal – Core – Signal | Double-sided PCB with signals on both sides |
| 4 | Signal – Ground – Power – Signal | Dedicated ground and power planes for improved signal integrity |
| 6 | Signal – Ground – Signal – Signal – Power – Signal | Additional signal layers for more complex routing |
| 8 | Signal – Ground – Signal – Power – Signal – Ground – Signal – Signal | Multiple ground and power planes for enhanced power distribution and signal integrity |
Factors Affecting the Number of PCB Layers
Several factors influence the decision on the number of layers in a PCB design:
-
Circuit Complexity: As the complexity of the circuit increases, with more components and interconnects, additional layers may be required to accommodate the routing and placement requirements.
-
Signal Integrity: High-speed or high-frequency designs often demand more layers to maintain signal integrity, minimize crosstalk, and provide adequate shielding.
-
Power Requirements: Boards with high power demands or multiple voltage levels may require dedicated power and ground planes, increasing the layer count.
-
Board Size and Component Density: Limited board space and high component density can necessitate the use of more layers to enable efficient routing and placement.
-
Manufacturing Capabilities: The PCB manufacturer’s capabilities and limitations, such as the maximum number of layers they can produce or the minimum drill hole size, can influence the layer count decision.
-
Cost Considerations: Increasing the number of layers in a PCB design directly impacts the manufacturing cost. Designers must balance the benefits of additional layers with the associated cost increase.
FAQ
1. What is the most common number of layers in a PCB?
The most common number of layers in a PCB varies depending on the application and industry. However, two-layer and four-layer PCBs are widely used for simple to moderate complexity designs. Many consumer electronics and general-purpose applications utilize these layer counts.
2. Can I mix different layer thicknesses in a single PCB?
Yes, it is possible to mix different layer thicknesses in a single PCB. This is known as a hybrid or asymmetric stackup. Mixing layer thicknesses can be advantageous in certain situations, such as when a specific layer requires higher current carrying capacity or when a thicker dielectric is needed for improved impedance control. However, mixing layer thicknesses can also increase the manufacturing complexity and cost.
3. What is the maximum number of layers in a PCB?
The maximum number of layers in a PCB is not strictly defined and can vary depending on the PCB manufacturer’s capabilities. Some advanced PCB Fabrication facilities can produce boards with 50 or more layers. However, such high layer counts are typically reserved for specialized applications, such as high-density interconnect (HDI) boards or complex military and aerospace systems. Most commercial PCBs rarely exceed 16 layers.
4. How do I determine the optimal number of layers for my PCB design?
Determining the optimal number of layers for a PCB design involves considering various factors, such as the circuit complexity, signal integrity requirements, power distribution needs, board size constraints, and cost targets. Designers typically start with the minimum number of layers that can accommodate the basic routing and component placement requirements. They then evaluate the design for signal integrity, power distribution, and manufacturability, adding layers as necessary to meet the performance and reliability goals. Collaboration with the PCB manufacturer and adherence to industry standards and guidelines can help in making informed decisions about the layer count.
5. What are the benefits of using more PCB layers?
Using more PCB layers offers several benefits, including:
– Increased routing density and component placement flexibility
– Improved signal integrity and reduced crosstalk
– Better power distribution and voltage regulation
– Enhanced thermal management and heat dissipation
– Greater mechanical strength and durability
However, it is important to note that increasing the number of layers also comes with trade-offs, such as higher manufacturing costs and potential challenges in assembly and testing. Designers must carefully balance the benefits and drawbacks of additional layers based on the specific requirements of their application.
Conclusion
Understanding PCB layers is crucial for designing reliable and high-performance electronic circuits. The number of layers in a PCB directly impacts the design’s complexity, signal integrity, power distribution, and manufacturability. By carefully considering the factors that influence the layer count and collaborating with experienced PCB Manufacturers, designers can optimize their designs for cost, performance, and reliability. As technology continues to advance, the use of multilayer PCBs will remain essential in enabling the development of compact, feature-rich, and robust electronic devices.
