What are PCB Vias?

A via, short for “vertical interconnect access,” is a conductive hole drilled through a printed circuit board to create an electrical connection between different layers. Vias are typically plated with a conductive material, such as copper, to ensure reliable electrical conductivity.

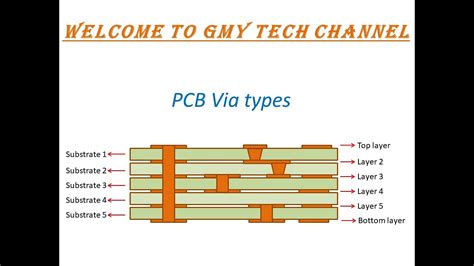

Types of PCB Vias

There are several types of PCB vias, each with its own characteristics and applications:

1. Through-hole Vias: These vias pass through all layers of the PCB, from the top to the bottom. They are commonly used for mounting through-hole components or providing structural support.

2. Blind Vias: Blind vias start from an outer layer (top or bottom) and terminate at an inner layer, without passing through the entire board. They are used to connect an outer layer to one or more inner layers.

3. Buried Vias: Buried vias are located entirely within the inner layers of a PCB, connecting two or more inner layers without reaching the outer layers. They are used to create more complex routing patterns and save space on the outer layers.

4. Microvia: Microvias are small, laser-drilled vias with diameters typically less than 6 mils (0.15 mm). They are used in high-density interconnect (HDI) PCB designs to connect fine-pitch components or to create dense routing patterns.

PCB Via Manufacturing Process

The manufacturing process for PCB vias involves several steps:

1. Drilling: Holes are drilled through the PCB substrate using mechanical or laser drilling techniques. The size and location of the holes depend on the via type and design requirements.

2. Deburring: After drilling, the holes are deburred to remove any rough edges or debris that could affect the plating process.

3. Plating: The drilled holes are plated with a conductive material, typically copper, using electroplating or electroless plating techniques. This step ensures reliable electrical conductivity between the connected layers.

4. Filling (optional): For some applications, such as high-frequency or thermal management, vias may be filled with a non-conductive material, such as epoxy resin, to improve performance or structural integrity.

PCB Via Design Considerations

When designing PCB vias, several factors must be considered to ensure optimal performance and manufacturability:

Via Size and Spacing

The size and spacing of vias depend on the PCB manufacturing capabilities, the components used, and the design requirements. Smaller vias allow for denser routing and more compact designs but may increase manufacturing costs. It is essential to adhere to the manufacturer’s design rules and guidelines to ensure proper via formation and reliability.

Signal Integrity

Vias can impact signal integrity, especially at high frequencies. The discontinuity caused by a via can lead to reflections, crosstalk, and electromagnetic interference (EMI). To minimize these effects, designers can use techniques such as via shielding, ground vias, and differential pair routing.

Thermal Management

Vias can also be used for thermal management by conducting heat away from components and dissipating it through the PCB. Thermal vias, which are typically filled with a thermally conductive material, can be placed near heat-generating components to improve heat transfer and prevent overheating.

Best Practices for PCB Via Implementation

To ensure optimal performance and reliability of PCB vias, follow these best practices:

1. Follow manufacturer’s design rules: Adhere to the manufacturer’s recommended via sizes, spacings, and other design guidelines to ensure proper manufacturing and avoid issues such as incomplete plating or via breakage.

2. Use appropriate via types: Select the appropriate via type (through-hole, blind, buried, or microvia) based on the design requirements, layer stack-up, and component placement.

3. Minimize via count: While vias are essential for multi-layer PCB designs, excessive use can increase manufacturing costs and affect signal integrity. Optimize via placement and routing to minimize the total number of vias required.

4. Consider signal integrity: Implement signal integrity techniques, such as via shielding, ground vias, and differential pair routing, to minimize the impact of vias on high-frequency signals.

5. Use thermal vias for heat dissipation: Place thermal vias near heat-generating components to improve thermal management and prevent overheating.

Frequently Asked Questions (FAQ)

1. What is the difference between a through-hole via and a blind via?
   A through-hole via passes through all layers of the PCB, from the top to the bottom, while a blind via starts from an outer layer and terminates at an inner layer without passing through the entire board.

2. Can vias be used for thermal management?
   Yes, thermal vias can be used to conduct heat away from components and dissipate it through the PCB. They are typically filled with a thermally conductive material and placed near heat-generating components.

3. What is a microvia, and when is it used?
   A microvia is a small, laser-drilled via with a diameter typically less than 6 mils (0.15 mm). Microvias are used in high-density interconnect (HDI) PCB designs to connect fine-pitch components or to create dense routing patterns.

4. How do vias impact signal integrity?
   Vias can cause discontinuities in the signal path, leading to reflections, crosstalk, and electromagnetic interference (EMI), especially at high frequencies. To minimize these effects, designers can use techniques such as via shielding, ground vias, and differential pair routing.

5. What is via filling, and why is it done?
   Via filling is the process of filling a via with a non-conductive material, such as epoxy resin, after plating. It is done to improve performance or structural integrity in applications such as high-frequency circuits or thermal management.

Conclusion

PCB vias are a crucial component in modern printed circuit board design, enabling multi-layer interconnects and more complex routing patterns. By understanding the different types of vias, their manufacturing processes, and best practices for design and implementation, PCB designers can create more efficient, reliable, and high-performance electronic devices. As technology continues to advance, the importance of optimizing via design and placement will only continue to grow, making it essential for designers to stay up-to-date with the latest techniques and guidelines in PCB via implementation.
