Fly Buck converter PCB layout tips

Introduction to Fly Buck Converters and PCB layout

Fly buck converters, also known as isolated buck converters, are switching Voltage Regulators that provide efficient DC-DC power conversion with galvanic isolation between input and output. They are commonly used in applications requiring voltage step-down and isolation, such as in telecommunications, industrial control systems, and medical devices.

Proper PCB layout is crucial for the optimal performance and reliability of fly buck converters. A well-designed PCB layout minimizes noise, reduces electromagnetic interference (EMI), and ensures stable operation. This article provides valuable tips and guidelines for designing fly buck converter PCB layouts.

Key Components of a Fly Buck Converter

Before diving into PCB layout tips, let’s briefly discuss the main components of a fly buck converter:

1. Power transformer: Provides galvanic isolation and voltage step-down.
2. Primary-side MOSFET: Switches the primary winding of the transformer.
3. Secondary-side rectifier: Converts the AC voltage from the secondary winding to DC.
4. Output filter: Smooths the output voltage and reduces ripple.
5. Control circuitry: Regulates the output voltage and provides protection features.

PCB Layout Tips for Fly Buck Converters

Tip 1: Minimize Loop Areas

One of the most important aspects of fly buck converter PCB layout is minimizing loop areas. High di/dt currents flowing through loops create magnetic fields that can couple into nearby traces and components, causing noise and EMI issues. To minimize loop areas:

• Place the primary-side MOSFET and its decoupling capacitor as close as possible to the transformer’s primary winding.
• Route the secondary-side rectifier and output filter components tightly together.
• Use a ground plane to provide a low-impedance return path for high-frequency currents.

Tip 2: Separate Noisy and Sensitive Signals

Fly buck converters generate high-frequency noise that can interfere with sensitive analog and digital signals. To minimize noise coupling:

• Separate the power ground (PGND) and analog ground (AGND) planes, connecting them at a single point near the controller IC.
• Keep the switching node (the connection between the MOSFET, transformer, and rectifier) away from sensitive signals.
• Use a separate layer for the power ground plane to shield sensitive signals from noise.

Tip 3: Optimize Transformer Placement and Routing

The power transformer is a critical component in fly buck converters, and its placement and routing significantly impact performance. To optimize transformer placement and routing:

• Place the transformer away from sensitive components and signals.
• Minimize the distance between the primary-side MOSFET and the transformer’s primary winding.
• Route the primary and secondary windings on separate layers to minimize coupling.
• Use a shielded or toroidal transformer to reduce EMI.

Tip 4: Use Appropriate Decoupling Capacitors

Decoupling capacitors are essential for reducing voltage ripple and providing a stable power supply to the fly buck converter. To effectively use decoupling capacitors:

• Place ceramic capacitors close to the MOSFET and rectifier to minimize parasitic inductance.
• Use a combination of high-frequency (ceramic) and low-frequency (electrolytic) capacitors to cover a wide frequency range.
• Choose capacitors with low equivalent series resistance (ESR) to minimize power loss.

Tip 5: Implement Proper Grounding Techniques

Proper grounding is crucial for minimizing noise and ensuring stable operation. To implement effective grounding techniques:

• Use a star grounding scheme, connecting all ground returns to a single point.
• Provide separate ground planes for power and analog/digital signals.
• Use vias to connect ground planes on different layers, minimizing impedance.
• Avoid splitting the ground plane, as it can create ground loops and increase noise.

Tip 6: Consider Thermal Management

Fly buck converters generate heat due to power losses in the components. Proper thermal management is necessary to ensure reliable operation and prevent overheating. To address thermal management:

• Provide sufficient copper area for heat dissipation, especially for the MOSFET and rectifier.
• Use thermal vias to transfer heat from the components to the ground plane or heatsink.
• Place temperature-sensitive components away from heat sources.
• Consider using a heatsink or forced air cooling for high-power applications.

PCB Layout Example

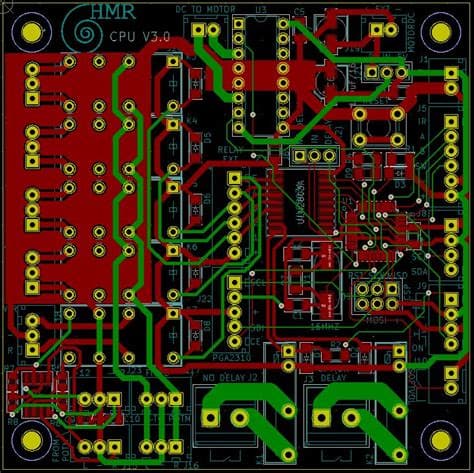

To illustrate the application of these tips, let’s consider an example PCB layout for a fly buck converter:

In this layout, the transformer is placed in the center of the board, with the primary MOSFET and rectifier placed close to their respective windings. The output filter components are located near the rectifier, minimizing trace lengths. The control IC is placed away from noisy components and has a separate analog ground (AGND) connection.

Frequently Asked Questions (FAQ)

1. What is the purpose of a fly buck converter?

A fly buck converter is a switching voltage regulator that provides efficient DC-DC power conversion with galvanic isolation between the input and output. It is used to step down voltage while maintaining isolation, which is essential in applications requiring safety and noise reduction.

2. Why is PCB layout important for fly buck converters?

Proper PCB layout is crucial for fly buck converters because it directly impacts performance, efficiency, and reliability. A well-designed layout minimizes noise, reduces EMI, and ensures stable operation. Poor layout can lead to increased power losses, noise coupling, and even device failure.

3. What are the key components of a fly buck converter?

The key components of a fly buck converter include the power transformer, primary-side MOSFET, secondary-side rectifier, output filter, and control circuitry. Each component plays a critical role in the converter’s operation and must be carefully selected and placed on the PCB.

4. How can I minimize noise in my fly buck converter PCB layout?

To minimize noise in your fly buck converter PCB layout, follow these tips:
– Minimize loop areas by placing components closely and using a ground plane.
– Separate noisy and sensitive signals, using separate ground planes for power and analog/digital signals.
– Optimize transformer placement and routing, keeping it away from sensitive components.
– Use appropriate decoupling capacitors to reduce voltage ripple.
– Implement proper grounding techniques, such as star grounding and avoiding split ground planes.

5. What should I consider for thermal management in my fly buck converter PCB layout?

Thermal management is important to ensure reliable operation and prevent overheating. To address thermal management in your PCB layout:
– Provide sufficient copper area for heat dissipation, especially for power components like the MOSFET and rectifier.
– Use thermal vias to transfer heat from components to the ground plane or heatsink.
– Place temperature-sensitive components away from heat sources.
– Consider using a heatsink or forced air cooling for high-power applications.

Conclusion

Designing a fly buck converter PCB layout requires careful consideration of component placement, signal routing, grounding, and thermal management. By following the tips and guidelines outlined in this article, you can create a robust and efficient PCB layout that minimizes noise, reduces EMI, and ensures stable operation.

Remember to minimize loop areas, separate noisy and sensitive signals, optimize transformer placement and routing, use appropriate decoupling capacitors, implement proper grounding techniques, and consider thermal management. By applying these principles to your fly buck converter PCB layout, you can achieve optimal performance and reliability in your power conversion application.
