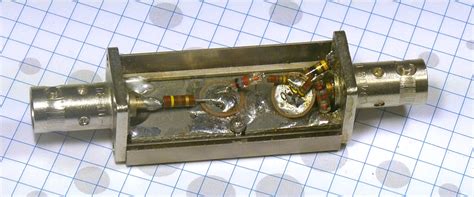

What is an RF Detector?

An RF (radio frequency) detector is a device that can detect the presence of radio waves in the environment. RF detectors are useful for a variety of applications, including:

  • Checking for hidden cameras or microphones that transmit via RF
  • Testing and troubleshooting RF circuits and transmitters
  • Detecting potential sources of RF interference
  • Locating hidden transmitters in security and surveillance applications

While you can purchase commercial RF detectors, it’s also possible to build a simple DIY version using readily available components. In this article, we’ll walk through how to easily construct your own RF detector.

How Does an RF Detector Work?

The basic principle behind an RF detector is fairly simple. The detector uses an antenna to pick up ambient radio waves. These waves induce a small alternating current in the antenna. The current is then rectified into a DC Voltage using a diode. When sufficient radio waves are present, the rectified voltage will be enough to illuminate an LED, providing a visual indication that RF is detected.

The sensitivity of the detector depends on factors like the gain of the transistor used, the size and design of the antenna, and the threshold of the LED. With the right combination of components, an RF detector can pick up common RF signal sources like:

  • Wi-Fi routers and devices (2.4 GHz / 5 GHz)
  • Bluetooth devices (2.4 GHz)
  • Wireless cameras and microphones (900 MHz – 2.4 GHz typical)
  • Cell phones (800 MHz – 5 GHz range)
  • Microwave ovens (2.45 GHz)

Parts Needed to Build a DIY RF Detector

To construct a basic DIY RF detector, you’ll need the following components:

Component Description Approx. Cost
Copper wire 6-12 inches of 22-24 AWG solid wire for antenna $2
1N34 germanium diode Rectifies RF signal to DC $1
2N3904 NPN transistor Amplifies signal to drive LED $0.50
5mm LED Visual indicator when RF detected $0.25
1 MΩ resistor Bias resistor for transistor base $0.10
100 kΩ resistor Bias resistor for LED $0.10
Prototype PCB For mounting and soldering components $2
9V battery connector For powering the circuit $1
9V battery Power source $2
Hookup wire, solder, etc. For wiring the circuit $2

Most of these components can be sourced from electronics retailers like Adafruit, Sparkfun, Amazon, or eBay. All together, the parts should cost around $10-15.

Step-by-Step Guide to Building the RF Detector

Step 1: Wind and Prepare the Antenna Coil

Start by cutting a 6-12 inch length of 22-24 AWG copper wire. Using a cylindrical object like a marker or screwdriver as a form, tightly wind the wire into a coil with 5-7 turns. Leave 1-2 inches of wire free on each end for connecting to the circuit. Strip 1/4″ of insulation off each end of the coil.

Step 2: Assemble the Detector Circuit

Next, assemble the main detector circuit according to this schematic:

[Schematic diagram showing antenna coil connected to diode, diode to transistor base, transistor emitter to ground, transistor collector to LED anode and 100K resistor, 100K resistor to +9V, and 1M bias resistor from base to ground]

Solder the components onto a prototype PCB according to the schematic. Pay attention to the orientation of the diode (black band towards transistor base), Transistor Pinout, and LED polarity.

Step 3: Connect Power

Solder the positive (red) lead of a 9V battery connector to the +9V point on the PCB. Solder the negative (black) lead to a convenient ground point. Snap in a fresh 9V battery.

Step 4: Test It Out!

Power on the detector circuit by connecting the 9V battery. Bring the antenna coil near a suspected source of RF, like a WiFi router or wireless device. If RF is present, the LED should light up, becoming brighter the closer you get to the RF source.

You can experiment with the sensitivity by changing the antenna design, adjusting component values, or even adding additional amplifier stages. Have fun and be creative!

Frequently Asked Questions about DIY RF Detectors

1. Is it legal to build and use an RF detector?

In most areas, it is legal to construct and use a simple RF detector as described here for personal, non-commercial use. However, laws vary by jurisdiction. It’s always a good idea to check your local regulations regarding radio devices and electronic surveillance.

2. How strong of an RF signal can this detector pick up?

This simple one-transistor detector is relatively sensitive and can typically pick up signals from common sources like WiFi, Bluetooth, and wireless cameras at close range (within a few meters). However, it may not be sensitive enough to detect very weak signals or those outside the antenna’s resonant frequency.

3. Can I use this RF detector to find hidden cameras?

While this DIY detector can pick up the RF transmissions from many wireless cameras, it won’t necessarily locate the exact position of a hidden camera. For that, you’d need a more directional antenna and additional circuitry to pinpoint the signal source. However, this detector can still be a useful tool for generally checking for the presence of wireless devices.

4. What frequency range does this RF detector cover?

The frequency range depends mainly on the size and geometry of the antenna coil. This simple coil design is relatively broadband and can pick up common frequencies in the high MHz to low GHz range. For better sensitivity at a specific frequency, the coil can be optimized using online calculator tools.

5. Can I make this RF detector more sensitive?

Yes, the sensitivity can be improved in a few ways:

  • Use a more precisely wound, larger, or carefully tuned antenna coil
  • Add additional gain stages after the detector, such as a multi-stage transistor amplifier or op-amp
  • Choose a different transistor with higher gain at RF frequencies
  • Use a more efficient rectifier diode with lower forward voltage drop
  • Adjust the LED and bias resistor values for a lower light-up threshold

With some circuit tweaks and optimization, you can greatly enhance the range and sensitivity compared to the basic design shown here. Designing and improving RF circuits is a fun electronics challenge!

Conclusion

Building your own DIY RF detector is a fun and educational project that provides a useful tool for RF awareness and troubleshooting. With just a handful of low-cost components and some simple soldering, you can construct a personal RF detector in an afternoon. The design shown here is easy to build yet sensitive enough to pick up common wireless signals. It also makes a great starting point for further experimentation and improvement. So round up some parts, warm up your soldering iron, and give this DIY RF detector a try!
