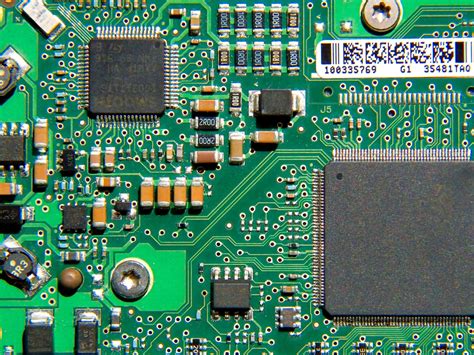

Introduction to Circuit Board Components

Circuit boards are the backbone of modern electronics, providing a platform for various components to interconnect and function together. Understanding the different components found on a circuit board and their roles is essential for anyone interested in electronics, whether you’re a hobbyist, student, or professional. In this comprehensive article, we’ll explore the main components you’ll find on a typical circuit board and explain their functions.

Common Circuit Board Components

Resistors

Resistors are passive two-terminal components that resist the flow of electric current in a circuit. They are used to control the amount of current flowing through a specific part of the circuit, divide voltages, and provide electrical resistance. Resistors come in various types, including:

• Fixed resistors
• Variable resistors (potentiometers and rheostats)
• Surface-mount resistors (SMD resistors)

The resistance value of a resistor is measured in ohms (Ω) and is often indicated by a color code on the component body.

Capacitors

Capacitors are passive two-terminal components that store electrical energy in an electric field. They are used for various purposes, such as:

• Smoothing power supply voltage
• Filtering signals
• Coupling and decoupling circuits
• Timing and oscillation

Capacitors come in different types, including:

• Ceramic capacitors
• Electrolytic capacitors
• Tantalum capacitors
• Film capacitors

The capacitance value of a capacitor is measured in farads (F) and is often indicated on the component body or by a code.

Inductors

Inductors are passive two-terminal components that store energy in a magnetic field when electric current flows through them. They are used for various purposes, such as:

• Filtering signals
• Impedance matching
• Energy storage
• Noise suppression

Inductors come in different types, including:

• Air core inductors
• Ferrite core inductors
• Toroidal inductors
• Surface-mount inductors (SMD inductors)

The inductance value of an inductor is measured in henries (H) and is often indicated on the component body or by a code.

Diodes

Diodes are semiconductor devices that allow electric current to flow in only one direction. They are used for various purposes, such as:

• Rectification (converting AC to DC)
• Voltage regulation
• Overvoltage protection
• Isolation

Diodes come in different types, including:

• Rectifier diodes
• Zener diodes
• Schottky diodes
• Light-emitting diodes (LEDs)

Transistors

Transistors are semiconductor devices that can amplify or switch electronic signals and power. They are the fundamental building blocks of modern electronics and are used in a wide range of applications, such as:

• Amplification
• Switching
• Voltage regulation
• Logic gates

Transistors come in different types, including:

• Bipolar junction transistors (BJTs)
• Field-effect transistors (FETs)
• Metal-oxide-semiconductor field-effect transistors (MOSFETs)

Integrated Circuits (ICs)

Integrated circuits, or ICs, are miniaturized electronic circuits consisting of many components, such as transistors, diodes, resistors, and capacitors, fabricated on a single semiconductor substrate. ICs are designed to perform specific functions and are used in a wide range of applications, such as:

• Microcontrollers
• Amplifiers
• Voltage regulators
• Logic gates
• Memory devices

ICs come in various package types, such as:

• Dual in-line package (DIP)
• Small-outline integrated circuit (SOIC)
• Quad flat pack (QFP)
• Ball grid array (BGA)

Connectors

Connectors are components that allow electrical connections between different parts of a circuit or between a circuit and external devices. They come in various types, such as:

• Pin headers
• Sockets
• Edge connectors
• USB connectors
• Audio jacks

Connectors are essential for modular design, allowing easy assembly, disassembly, and replacement of components.

Switches

Switches are mechanical or electronic components that can make or break an electrical connection, allowing or interrupting the flow of electric current in a circuit. They are used for various purposes, such as:

• Power control
• Mode selection
• User input

Switches come in different types, including:

• Toggle switches
• Pushbutton switches
• DIP switches
• Slide switches
• Rotary switches

Crystal Oscillators

Crystal oscillators are electronic components that generate a precise frequency reference for timing and synchronization in electronic circuits. They are used in applications that require stable and accurate frequency control, such as:

• Microcontrollers
• Clocks
• Communication devices

Crystal oscillators consist of a quartz crystal and an oscillator circuit that maintains the crystal’s vibration at its resonant frequency.

PCB design considerations

When designing a circuit board, several factors should be considered to ensure optimal performance, reliability, and manufacturability:

• Component placement: Arrange components in a logical and efficient manner, considering signal flow, power distribution, and thermal management.
• Routing: Design traces to minimize signal interference, ensure proper impedance matching, and adhere to manufacturing constraints.
• Grounding and shielding: Implement proper grounding and shielding techniques to reduce noise and electromagnetic interference (EMI).
• Thermal management: Consider the power dissipation of components and design appropriate heat sinking and cooling solutions.
• Manufacturing constraints: Adhere to the design rules and guidelines provided by the PCB manufacturer to ensure successful fabrication and assembly.

Troubleshooting and Maintenance

When working with circuit boards, it’s essential to have a basic understanding of troubleshooting and maintenance techniques:

• Visual inspection: Carefully examine the circuit board for any visible defects, such as damaged components, cold solder joints, or broken traces.
• Continuity testing: Use a multimeter to test for continuity between points on the circuit board to identify open or short circuits.
• Voltage and current measurements: Measure voltages and currents at various points in the circuit to pinpoint issues and verify proper operation.
• Component replacement: If a component is found to be faulty, carefully remove it and replace it with a new one, ensuring proper orientation and soldering.
• Cleaning: Periodically clean the circuit board using appropriate solvents and tools to remove dust, dirt, and flux residue, which can lead to corrosion and performance issues.

Future Trends in Circuit Board Technology

As technology advances, circuit board design and manufacturing processes continue to evolve. Some of the trends shaping the future of circuit board technology include:

• Miniaturization: The demand for smaller, more compact electronic devices drives the development of advanced packaging techniques, such as system-on-chip (SoC) and 3D packaging.
• Flexible and stretchable electronics: The increasing popularity of wearable devices and the Internet of Things (IoT) has led to the development of flexible and stretchable circuit boards that can conform to various shapes and surfaces.
• High-speed and high-frequency designs: As data rates and operating frequencies continue to increase, designers must employ advanced techniques, such as controlled impedance routing and low-loss materials, to ensure signal integrity.
• Sustainable and eco-friendly materials: There is a growing emphasis on using environmentally friendly materials and processes in circuit board manufacturing, such as lead-free solders and halogen-free laminates.

Frequently Asked Questions

1. What is the difference between a PCB and a circuit board?

A printed circuit board (PCB) is a specific type of circuit board that has conductive tracks, pads, and other features etched or printed onto a non-conductive substrate. The term “circuit board” is a more general term that encompasses PCBs and other types of boards, such as breadboards and stripboards.

2. What are the most common materials used for circuit board substrates?

The most common materials used for circuit board substrates are:

• FR-4: A glass-reinforced epoxy laminate, widely used for its good mechanical and electrical properties.
• Polyimide: A high-performance polymer known for its excellent thermal stability and flexibility.
• Aluminum: Used for its good thermal conductivity in applications that require efficient heat dissipation.
• Ceramic: Used in high-frequency and high-temperature applications for its low dielectric loss and high thermal stability.

3. What is the purpose of solder mask on a circuit board?

Solder mask is a thin, protective coating applied to the copper traces on a circuit board. Its primary purposes are:

• Insulation: Prevents accidental short circuits between adjacent traces.
• Protection: Shields the copper traces from oxidation, corrosion, and mechanical damage.
• Solder control: Helps to prevent solder bridges from forming during the soldering process.

4. What is the difference between through-hole and surface-mount components?

Through-hole components have leads that are inserted into holes drilled in the circuit board and soldered to pads on the opposite side. Surface-mount components are mounted directly onto pads on the surface of the board. Surface-mount technology (SMT) allows for smaller component sizes, higher component density, and automated assembly processes.

5. What are some basic tools needed for working with circuit boards?

Some basic tools needed for working with circuit boards include:

• Soldering iron and solder
• Desoldering pump or solder wick
• Multimeter
• Tweezers and pliers
• Wire cutters and strippers
• Magnifying glass or microscope
• ESD-safe workstation and tools

Conclusion

Understanding the various components found on a circuit board and their functions is crucial for anyone involved in electronics design, troubleshooting, or maintenance. By familiarizing yourself with the roles of resistors, capacitors, inductors, diodes, transistors, integrated circuits, and other components, you’ll be better equipped to design, analyze, and repair electronic circuits. As technology continues to advance, staying current with the latest trends and techniques in circuit board design and manufacturing will help you stay competitive in this ever-evolving field.
