What is an Arduino ISP?
An Arduino ISP (In-System Programmer) is a feature that allows the Arduino UNO to program other AVR microcontrollers directly on the target board. This eliminates the need for an external programmer and simplifies the programming process. The Arduino UNO can be configured as an ISP using the built-in SPI (Serial Peripheral Interface) pins and the appropriate firmware.
How does the Arduino ISP work?
The Arduino ISP works by establishing a communication link between the Arduino UNO and the target AVR microcontroller using the SPI protocol. The SPI protocol is a synchronous serial communication interface that operates in a master-slave configuration. The Arduino UNO acts as the master, while the target AVR microcontroller acts as the slave.
The SPI pins on the Arduino UNO are as follows:
SPI Pin | Arduino UNO Pin |
---|---|
MOSI | Digital Pin 11 |
MISO | Digital Pin 12 |
SCK | Digital Pin 13 |
SS | Digital Pin 10 |
To program the target AVR microcontroller, the Arduino UNO sends programming commands and data over the SPI interface. The target AVR microcontroller receives these commands and writes the program into its flash memory.
Benefits of the Arduino ISP
Using the Arduino UNO as an ISP offers several benefits:
-
Cost-effective: The Arduino UNO is an affordable microcontroller board, making it an economical choice for programming AVR microcontrollers.
-
Simplicity: The Arduino ISP functionality simplifies the programming process by eliminating the need for an external programmer. It allows you to program the target AVR microcontroller directly on the target board.
-
Flexibility: The Arduino ISP supports a wide range of AVR microcontrollers, providing flexibility in project development.
-
Rapid prototyping: With the Arduino ISP, you can quickly prototype and test your designs without the hassle of connecting an external programmer.
Arduino UNO ISP Shield Updated PCB
To further enhance the capabilities of the Arduino UNO as an ISP, an updated PCB Design for the Arduino UNO ISP Shield has been developed. The updated PCB offers several improvements and features:
Improved layout and component placement
The updated PCB design optimizes the layout and component placement for better performance and ease of use. The components are strategically placed to minimize signal interference and ensure reliable operation.
Enhanced power management
The updated PCB incorporates enhanced power management features to ensure stable and efficient power delivery to the target AVR microcontroller. It includes voltage regulation and protection circuitry to prevent damage to the components.
Expanded connectivity options
The Arduino UNO ISP Shield updated PCB provides expanded connectivity options. It includes additional headers and connectors to accommodate various target boards and peripherals. This allows for greater flexibility in project integration.
Robust construction
The updated PCB design focuses on robust construction to withstand the rigors of frequent use. It uses high-quality materials and manufacturing processes to ensure durability and long-term reliability.
![](https://prototypepcbassembly.com/wp-content/uploads/2024/03/rayming-pcb-manufacturing-and-asssembly.jpg)
Setting up the Arduino UNO as an ISP
To set up the Arduino UNO as an ISP, follow these steps:
- Connect the Arduino UNO to your computer via USB.
- Open the Arduino IDE and navigate to “File” > “Examples” > “ArduinoISP”.
- Upload the “ArduinoISP” sketch to the Arduino UNO.
- Connect the target AVR microcontroller to the Arduino UNO using the SPI pins.

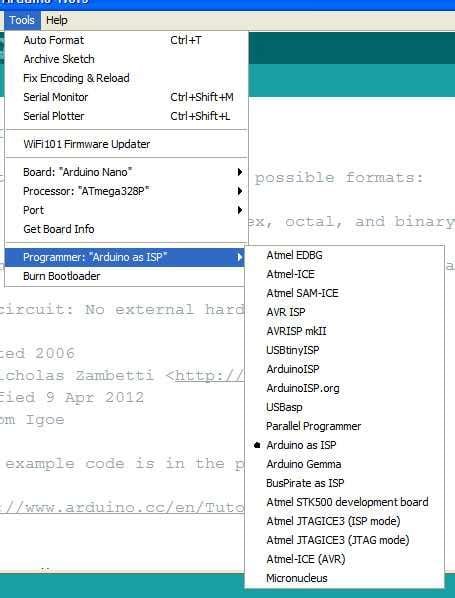

- In the Arduino IDE, select the appropriate board and programmer (Arduino as ISP).
- Write your program and click “Upload” to program the target AVR microcontroller.
Troubleshooting Common Issues
When using the Arduino UNO as an ISP, you may encounter some common issues. Here are a few troubleshooting tips:
-
Verify connections: Ensure that the SPI pins are correctly connected between the Arduino UNO and the target AVR microcontroller.
-
Check power supply: Make sure that the target AVR microcontroller is properly powered. The Arduino UNO may not provide sufficient power for certain microcontrollers.
-
Update firmware: If you encounter programming errors, try updating the firmware on the Arduino UNO to the latest version.
-
Adjust programming speed: If you experience programming failures, try reducing the programming speed in the Arduino IDE.
FAQ
-
Can I use the Arduino UNO ISP Shield with other Arduino Boards?
Yes, the Arduino UNO ISP Shield is compatible with other Arduino boards that have the same form factor and pin layout as the Arduino UNO. -
Is the Arduino ISP capable of programming all AVR microcontrollers?
The Arduino ISP supports a wide range of AVR microcontrollers, but not all of them. Please refer to the Arduino documentation for a list of supported microcontrollers. -
Can I use the Arduino UNO as an ISP while it is connected to other shields?
Yes, you can use the Arduino UNO as an ISP while it is connected to other shields. However, ensure that there are no conflicts between the shields and the SPI pins used for programming. -
What should I do if I encounter programming errors with the Arduino ISP?
If you encounter programming errors, first verify the connections and power supply. If the issue persists, try updating the firmware on the Arduino UNO and adjusting the programming speed in the Arduino IDE. -
Can I use the Arduino ISP to program non-AVR microcontrollers?
No, the Arduino ISP is specifically designed for programming AVR microcontrollers. It cannot be used to program non-AVR microcontrollers.
Conclusion
The Arduino UNO ISP Shield updated PCB brings exciting enhancements to the Arduino ISP functionality. With improved layout, enhanced power management, expanded connectivity options, and robust construction, the updated PCB streamlines the process of programming AVR microcontrollers using the Arduino UNO.
By leveraging the Arduino ISP, developers and hobbyists can quickly prototype and experiment with AVR-based projects without the need for an external programmer. The simplicity and flexibility offered by the Arduino ISP make it a valuable tool in the world of embedded systems and DIY electronics.
As you explore the capabilities of the Arduino UNO ISP Shield updated PCB, remember to follow proper setup procedures, troubleshoot common issues, and consult the Arduino documentation for detailed information and supported microcontrollers.
With the Arduino UNO ISP Shield updated PCB, unleash your creativity and embark on exciting projects that push the boundaries of what’s possible with AVR microcontrollers.
