Small Outline Integrated Circuit-How To Choose

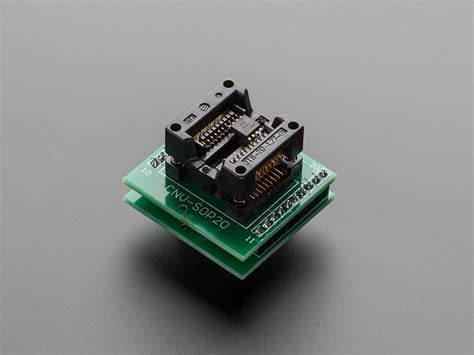

What is a Small Outline Integrated Circuit (SOIC)?

A Small Outline Integrated Circuit (SOIC) is a surface-mounted integrated circuit (IC) package that has a smaller footprint than a dual in-line package (DIP). SOICs are rectangular in shape and have gull-wing leads on two sides. They are widely used in various electronic applications due to their compact size, low profile, and good electrical performance.

SOICs come in different sizes and lead counts, making them suitable for a wide range of applications. The most common SOIC packages are:

Advantages of Using SOIC Packages

Space Savings

One of the main advantages of using SOIC packages is their smaller size compared to through-hole packages like DIPs. This allows for more compact PCB designs and higher component density, which is particularly important in space-constrained applications such as mobile devices, wearables, and IoT sensors.

Cost Reduction

The smaller size of SOIC packages also leads to cost savings in PCB Fabrication. Since SOICs have a smaller footprint, more components can be placed on a single PCB, reducing the overall board size and material costs. Additionally, the surface-mount nature of SOICs allows for automated assembly processes, further reducing manufacturing costs.

Improved Electrical Performance

SOICs offer better electrical performance compared to through-hole packages. The shorter lead lengths and smaller package size result in reduced parasitic inductance and capacitance, which can improve signal integrity and high-frequency performance. This makes SOICs suitable for high-speed applications such as communication systems and digital interfaces.

Factors to Consider When Choosing SOIC Packages

Lead Count and Pitch

When selecting an SOIC package, it is essential to consider the number of leads required for your application and the lead pitch. The lead count determines the number of connections the IC can have with the PCB, while the lead pitch affects the PCB layout and the spacing between components.

Common lead counts for SOIC packages range from 8 to 28, with a standard lead pitch of 1.27 mm. It is crucial to choose a package with enough leads to accommodate all the necessary connections while also considering the available PCB space and routing constraints.

Package Size and Height

The package size and height are other important factors to consider when choosing an SOIC. The package size determines the PCB area required for the component, while the height affects the overall thickness of the assembled board.

Smaller package sizes, such as SOIC-8 and SOIC-14, are suitable for applications with limited PCB space, while larger packages like SOIC-24 and SOIC-28 offer more leads and can accommodate ICs with higher pin counts. The standard height for SOIC packages is typically around 1.75 mm, but low-profile versions with heights of 1.25 mm or less are also available for applications with strict height restrictions.

Thermal Considerations

Thermal management is another crucial aspect to consider when selecting SOIC packages. The power dissipation of the IC and the thermal resistance of the package determine the heat generation and transfer characteristics.

SOICs have a relatively small thermal mass and limited heat dissipation capabilities compared to larger packages like quad flat packs (QFPs) or ball grid arrays (BGAs). For high-power applications, it may be necessary to use packages with a larger thermal pad or exposed die pad to improve heat transfer to the PCB.

Thermal modeling and simulation tools can help evaluate the thermal performance of SOIC packages in a specific application and guide the selection process.

Electrical Characteristics

The electrical characteristics of SOIC packages should also be considered when making a selection. Key parameters include:

1. Insulation resistance: The resistance between the leads and the package body, which determines the electrical isolation.

2. Capacitance: The parasitic capacitance between the leads and the package body, which can affect high-frequency performance.

3. Self-inductance: The inductance of the package leads, which can impact signal integrity and high-speed operation.

4. Crosstalk: The unintended coupling between adjacent leads, which can cause signal interference and noise.

Manufacturers typically provide detailed electrical specifications for SOIC packages in their datasheets, which can help designers evaluate and compare different options based on their application requirements.

Reliability and Quality

Reliability and quality are critical considerations when selecting SOIC packages, especially for applications in harsh environments or with stringent reliability requirements. Factors to consider include:

1. Moisture sensitivity level (MSL): The package’s susceptibility to moisture-induced damage during storage and assembly.

2. Temperature cycling performance: The ability of the package to withstand repeated thermal stress without cracking or delamination.

3. Solder joint reliability: The strength and durability of the solder joints between the package leads and the PCB pads.

4. Qualification and testing: The level of qualification and testing performed by the manufacturer to ensure package reliability and quality.

Choosing SOIC packages from reputable manufacturers with proven track records and strict quality control processes can help ensure the reliability and performance of the end product.

SOIC Package Selection Process

Selecting the right SOIC package for a specific application involves a systematic approach that considers the various factors discussed above. The following steps can guide the selection process:

1. Define the application requirements: Determine the required lead count, package size, thermal performance, and electrical characteristics based on the specific application needs.

2. Evaluate available options: Identify SOIC packages that meet the defined requirements by reviewing manufacturer datasheets, application notes, and reference designs.

3. Consider PCB layout and assembly: Assess the impact of the selected SOIC package on the PCB layout, component placement, and assembly process. Ensure compatibility with the manufacturing capabilities and constraints.

4. Conduct thermal and electrical simulations: Perform thermal and electrical simulations to validate the performance of the selected SOIC package in the specific application environment. Evaluate the results against the design targets and make adjustments if necessary.

5. Prototype and test: Build prototypes using the selected SOIC package and conduct thorough testing to verify functionality, reliability, and performance under realistic operating conditions. Make any necessary design iterations based on the test results.

6. Finalize the selection: Based on the simulation and testing results, finalize the SOIC package selection and proceed with the design implementation and manufacturing.

Following this systematic approach can help ensure the selection of the most suitable SOIC package for a given application, optimizing performance, reliability, and cost-effectiveness.

FAQ

1. Q: What is the difference between SOIC and DIP packages?
   A: SOIC (Small Outline Integrated Circuit) packages are surface-mounted and have a smaller footprint compared to DIP (Dual In-line Package) packages, which are through-hole. SOICs offer space savings, cost reduction, and improved electrical performance due to their compact size and surface-mount nature.

2. Q: Can SOIC packages be used for high-power applications?
   A: While SOIC packages have limited thermal dissipation capabilities compared to larger packages like QFPs or BGAs, they can still be used in high-power applications with proper thermal management. Using packages with a larger thermal pad or exposed die pad and careful PCB design can help improve heat transfer and ensure reliable operation.

3. Q: How do I determine the lead count and pitch for my SOIC package?
   A: The lead count and pitch for an SOIC package are determined by the specific requirements of your application. Consider the number of necessary connections, available PCB space, and routing constraints when choosing the lead count. The standard lead pitch for SOIC packages is 1.27 mm, but it is essential to consult manufacturer datasheets for exact specifications.

4. Q: Are SOIC packages suitable for high-frequency applications?
   A: Yes, SOIC packages can be suitable for high-frequency applications due to their improved electrical performance compared to through-hole packages. The shorter lead lengths and smaller package size result in reduced parasitic inductance and capacitance, which can enhance signal integrity and high-frequency operation. However, it is essential to evaluate the specific electrical characteristics of the package and consider factors like crosstalk and self-inductance.

5. Q: How can I ensure the reliability of my SOIC package selection?
   A: To ensure the reliability of your SOIC package selection, consider factors such as moisture sensitivity level (MSL), temperature cycling performance, solder joint reliability, and qualification and testing. Choose packages from reputable manufacturers with proven track records and strict quality control processes. Additionally, conduct thorough prototyping and testing under realistic operating conditions to validate the reliability and performance of the selected package in your specific application.
