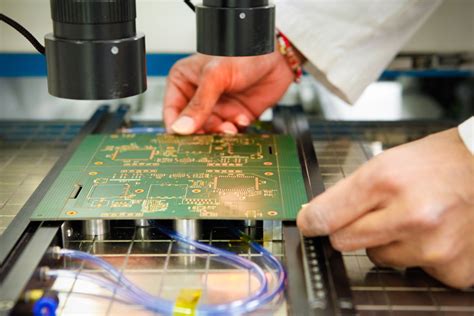

Introduction to PCB fabrication

Printed Circuit Boards (PCBs) are essential components in modern electronics. They provide a stable and efficient way to connect electronic components, allowing for the creation of complex circuits. While PCBs are typically manufactured in specialized facilities, it is possible to create them at home with the right tools and techniques. In this article, we will guide you through the process of PCB fabrication at home, from designing your circuit to etching and soldering your components.

Tools and Materials Required for Home PCB Fabrication

Before you begin the process of creating your own PCB, you will need to gather the necessary tools and materials. Here is a list of the essential items you will need:

  • Computer with PCB design software (e.g., Eagle, KiCad, or EasyEDA)
  • Laser printer or photoplotter
  • Transparency film or glossy photo paper
  • Copper-clad board (single or double-sided, depending on your project)
  • Ferric chloride or other etching solution
  • Protective gloves and eyewear
  • Drill or Dremel tool with drill bits
  • Soldering iron and solder
  • Isopropyl alcohol and clean cloth
  • Scissors or cutting tool
  • Ruler or measuring tape
  • Permanent marker

PCB Design Software

There are several PCB design software options available, both free and paid. Some popular choices include:

Software Price Ease of Use Features
Eagle Free (limited) / Paid Moderate Schematic capture, PCB layout, 3D modeling
KiCad Free Moderate Schematic capture, PCB layout, 3D modeling, simulation
EasyEDA Free (limited) / Paid Easy Web-based, schematic capture, PCB layout, 3D modeling

Choose the software that best suits your needs and skill level.

Designing Your PCB

Step 1: Create Your Schematic

The first step in PCB fabrication is to create a schematic of your circuit. This is a visual representation of the electronic components and their connections. Use your chosen PCB design software to place the components and draw the connections between them. Be sure to double-check your schematic for errors before proceeding to the next step.

Step 2: Convert Schematic to PCB Layout

Once your schematic is complete, you can convert it to a PCB layout. This process involves arranging the components on the board and routing the traces between them. Consider factors such as component placement, trace width, and spacing to ensure proper functionality and manufacturability.

Step 3: Generate Gerber Files

After finalizing your PCB layout, generate Gerber files. These files contain the necessary information for manufacturing your PCB, including the copper layers, solder mask, and silkscreen. Most PCB design software can generate Gerber files automatically.

Transferring Your Design to the Copper-Clad Board

Step 1: Print Your PCB Design

Using a laser printer or photoplotter, print your PCB design onto transparency film or glossy photo paper. Ensure that the printed design is dark and opaque, as this will affect the quality of the final PCB.

Step 2: Clean the Copper-Clad Board

Clean the surface of the copper-clad board using isopropyl alcohol and a clean cloth. This will remove any dirt, grease, or oxidation that may interfere with the etching process.

Step 3: Transfer the Design

Place the printed design onto the copper-clad board, ensuring that it is aligned correctly. Use a piece of glass or a flat, heavy object to press the design firmly against the board. Expose the board to UV light for the recommended time (usually a few minutes) to transfer the design onto the copper.

Step 4: Remove the Transfer Material

After exposure, carefully peel off the transparency film or photo paper. The design should now be visible on the copper surface.

Etching Your PCB

Step 1: Prepare the Etching Solution

In a plastic container, mix the ferric chloride or your chosen etching solution according to the manufacturer’s instructions. Always wear protective gloves and eyewear when handling etching solutions.

Step 2: Etch the PCB

Submerge the PCB in the etching solution, ensuring that it is completely covered. Agitate the container gently to promote even etching. Check the progress periodically, and remove the PCB once all the unwanted copper has been etched away.

Step 3: Clean the PCB

Rinse the etched PCB with water and remove any remaining residue with isopropyl alcohol and a clean cloth.

Drilling and Soldering Components

Step 1: Drill Holes

Using a drill or Dremel tool, carefully drill holes in the PCB where the component leads will be inserted. Refer to your PCB design for the correct hole sizes and locations.

Step 2: Solder Components

Insert the component leads through the drilled holes and solder them in place using a soldering iron and solder. Be sure to use the correct temperature and avoid applying too much solder, as this can cause short circuits.

Testing and Troubleshooting Your PCB

After soldering all the components, it’s essential to test your PCB for proper functionality. Use a multimeter to check for continuity and ensure that there are no short circuits. If you encounter any issues, refer to your schematic and PCB layout to identify potential problems. Common issues include incorrect component placement, poor soldering, or damaged traces.

Frequently Asked Questions (FAQ)

1. Can I use any type of printer to print my PCB design?

It is recommended to use a laser printer or photoplotter for the best results. Inkjet printers may not produce the required opacity and resolution for successful PCB fabrication.

2. What is the ideal copper thickness for a homemade PCB?

For most home PCB projects, a copper thickness of 1 oz (35 μm) is sufficient. Thicker copper layers (2 oz or 70 μm) can be used for high-current applications or improved mechanical stability.

3. How can I create double-sided PCBs at home?

To create a double-sided PCB, you will need to repeat the design transfer and etching process on both sides of the copper-clad board. Ensure proper alignment between the two sides by using registration marks or holes.

4. Are there any alternatives to ferric chloride for etching PCBs?

Yes, there are several alternatives to ferric chloride, such as ammonium persulfate, sodium persulfate, or cupric chloride. Each solution has its own advantages and disadvantages, so research the best option for your specific project.

5. How can I improve the quality of my homemade PCBs?

To improve the quality of your homemade PCBs, consider the following tips:

  • Use high-quality materials, such as clean copper-clad boards and fresh etching solutions
  • Ensure proper exposure and development of your PCB design
  • Maintain consistent etching times and temperatures
  • Take proper safety precautions and work in a well-ventilated area
  • Practice proper soldering techniques and use the appropriate tools

Conclusion

Creating PCBs at home can be a rewarding and cost-effective way to bring your electronic projects to life. By following the steps outlined in this article, you can design, fabricate, and assemble your own PCBs with relative ease. Remember to prioritize safety, practice proper techniques, and be patient throughout the process. With time and experience, you’ll be able to create increasingly complex and professional-quality PCBs in the comfort of your own home.
