Key Features of an SMT Rework Station

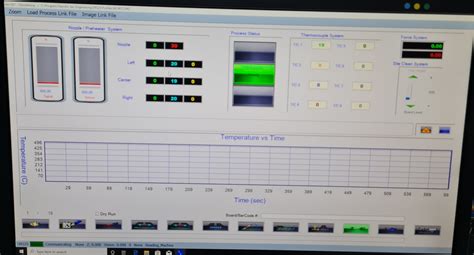

Precision Temperature Control
One of the most crucial aspects of an SMT rework station is its ability to precisely control the temperature during the rework process. This is essential because different components and solder types require specific temperature profiles to ensure proper soldering and to avoid damage to the components or the PCB.
Most SMT rework stations offer:
– Adjustable temperature settings
– Accurate temperature sensors
– Closed-loop temperature control systems
Hot Air Pencils and Nozzles
Hot air pencils and nozzles are the primary tools used in SMT rework. These tools direct a focused stream of hot air onto the component and solder joint, allowing for targeted heating and controlled removal or replacement of components.
SMT rework stations typically include:
– Various nozzle sizes and shapes to accommodate different component types
– Adjustable airflow settings to control the heating process
– Ergonomic design for precision and ease of use
Vacuum Pickup Tools
Vacuum pickup tools, also known as suction pens, are used to safely and securely pick up and place small SMT components during the rework process. These tools use a gentle vacuum to hold the component, reducing the risk of damage caused by manual handling.
Optical Magnification and Lighting
Given the small size of SMT components, optical magnification and proper lighting are essential for accurate placement and inspection during the rework process. Many SMT rework stations integrate:
– Built-in magnifying lenses or microscopes
– Adjustable LED lighting for improved visibility
– Digital displays for enhanced image quality and analysis
Benefits of Using an SMT Rework Station
Increased Efficiency and Precision
SMT rework stations streamline the repair and modification process, allowing technicians to work more efficiently and with greater precision. The specialized tools and features of these stations minimize the risk of human error and ensure consistent results.
Cost Savings
By using an SMT rework station, companies can save money on manufacturing costs in several ways:
– Reduced scrap rates due to improved rework accuracy
– Extended lifespan of PCBs through targeted repairs instead of full board replacement
– In-house rework capabilities, reducing the need for outsourcing
Versatility
SMT rework stations are designed to handle a wide range of component types and sizes, making them suitable for various applications and industries. This versatility allows companies to adapt to changing product requirements and technologies without the need for significant equipment upgrades.
Choosing the Right SMT Rework Station
When selecting an SMT rework station, consider the following factors:
- Temperature range and control
- Nozzle and tool compatibility with your components
- Ease of use and ergonomics
- Optical magnification and lighting quality
- Brand reputation and customer support
- Budget and return on investment
| Factor | Importance | Considerations |
|---|---|---|
| Temperature range and control | High | Ensure the station can handle the temperature requirements of your components and solder types |
| Nozzle and tool compatibility | High | Choose a station with nozzles and tools that fit your specific component types and sizes |
| Ease of use and ergonomics | Medium | Look for a station with user-friendly controls and comfortable, ergonomic tools |
| Optical magnification and lighting | Medium | Consider the quality and adjustability of the magnification and lighting systems |
| Brand reputation and customer support | Medium | Research the brand’s reputation and the level of customer support they offer |
| Budget and return on investment | High | Balance your budget with the long-term benefits and potential cost savings of the rework station |
SMT Rework Station Maintenance and Safety
To ensure optimal performance and longevity of your SMT rework station, regular maintenance and safe operating practices are essential.
Maintenance Tips
- Clean nozzles and tools regularly to prevent solder buildup and ensure proper airflow
- Inspect and replace worn or damaged parts, such as nozzles, heating elements, and filters
- Calibrate temperature sensors periodically to maintain accurate temperature control
Safety Considerations
- Always wear appropriate personal protective equipment (PPE), such as heat-resistant gloves and safety glasses
- Work in a well-ventilated area to minimize exposure to solder fumes
- Follow the manufacturer’s guidelines for safe operation and maintenance of the SMT rework station
Frequently Asked Questions (FAQ)
-
Q: What is the difference between an SMT rework station and a soldering iron?
A: An SMT rework station is a more advanced and versatile tool specifically designed for working with surface-mounted components. It offers precise temperature control, hot air pencils, and vacuum pickup tools, while a soldering iron is a simpler tool used for general soldering tasks. -
Q: Can an SMT rework station be used for through-hole components?
A: While SMT rework stations are primarily designed for surface-mounted components, they can be used for some through-hole rework tasks. However, for extensive through-hole work, a dedicated soldering station may be more suitable. -
Q: How often should I replace the nozzles on my SMT rework station?
A: The frequency of nozzle replacement depends on usage and the type of solder being used. As a general rule, inspect nozzles regularly for signs of wear, damage, or solder buildup, and replace them as needed to maintain optimal performance. -
Q: Can I use an SMT rework station for lead-free soldering?
A: Yes, most modern SMT rework stations are designed to handle both leaded and lead-free soldering. However, be sure to check the specifications of your specific station to ensure compatibility and adjust the temperature settings accordingly. -
Q: What should I do if my SMT rework station is not heating up properly?
A: If your SMT rework station is not heating up properly, first check the power supply and connections. If the issue persists, it may be due to a faulty heating element or temperature sensor. In this case, consult the manufacturer’s Troubleshooting Guide or contact their customer support for assistance.
Conclusion
An SMT rework station is an indispensable tool for electronics manufacturers and repair technicians working with surface-mounted components. By offering precise temperature control, specialized tools, and enhanced visibility, these stations enable efficient, accurate, and cost-effective rework processes. When choosing an SMT rework station, consider factors such as temperature range, tool compatibility, ease of use, and brand reputation to ensure you select the best station for your specific needs. Regular maintenance and safe operating practices will help extend the lifespan of your SMT rework station and ensure optimal performance for years to come.
