Understanding Signal Integrity and Impedance

Signal integrity is a critical aspect of modern electronic systems, particularly in high-speed digital designs. It refers to the ability of an electrical signal to maintain its quality and accuracy as it propagates through a system. One of the key factors affecting signal integrity is characteristic impedance, which is the measure of opposition to the flow of alternating current (AC) in a transmission line.

What is Characteristic Impedance?

Characteristic impedance, denoted as Z0, is the ratio of the voltage to the current in a transmission line when the line is infinitely long or terminated with its characteristic impedance. It is an intrinsic property of the transmission line and depends on the geometry and materials of the conductors and the insulating medium surrounding them.

The characteristic impedance of a transmission line can be calculated using the following formula:

Z0 = √(L/C)

Where:
– L is the inductance per unit length of the transmission line
– C is the capacitance per unit length of the transmission line

Importance of Matching Impedance

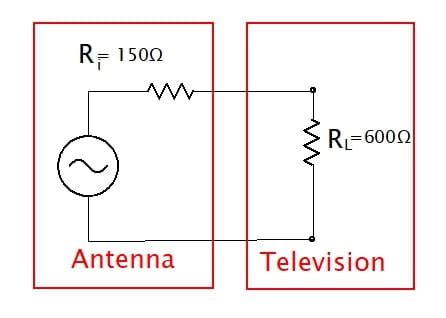

Matching the impedance of a source, transmission line, and load is crucial for ensuring optimal signal transfer and minimizing reflections. When a signal encounters an impedance mismatch, a portion of the signal energy is reflected back to the source, causing signal distortion, ringing, and other undesirable effects.

To minimize reflections and maintain signal integrity, designers must carefully consider the characteristic impedance of the transmission lines and ensure that the source and load impedances are matched to it. This is typically achieved by using appropriate termination techniques, such as series or parallel termination resistors.

Factors Affecting Characteristic Impedance

Several factors influence the characteristic impedance of a transmission line, including:

Conductor Geometry

The geometry of the conductors, such as their width, thickness, and spacing, plays a significant role in determining the characteristic impedance. For example, in a microstrip transmission line, which consists of a conductor trace on a dielectrIC Substrate with a ground plane underneath, the characteristic impedance can be calculated using the following formula:

Z0 = (87/√(ɛr + 1.41)) * ln(5.98h/(0.8w + t))

Where:
– ɛr is the relative permittivity of the dielectric substrate
– h is the thickness of the dielectric substrate
– w is the width of the conductor trace
– t is the thickness of the conductor trace

Dielectric Material

The dielectric material surrounding the conductors also affects the characteristic impedance. The relative permittivity (ɛr) of the dielectric material determines the capacitance per unit length of the transmission line, which in turn influences the characteristic impedance.

Common dielectric materials used in PCB Fabrication and their relative permittivities include:

Frequency

The frequency of the signal propagating through the transmission line can also impact the characteristic impedance. At high frequencies, the skin effect causes the current to flow primarily on the surface of the conductors, effectively reducing their cross-sectional area and increasing the resistance per unit length. This can lead to a change in the characteristic impedance at higher frequencies.

Controlling Characteristic Impedance

To maintain signal integrity and ensure proper impedance matching, designers must carefully control the characteristic impedance of transmission lines. This can be achieved through various techniques, such as:

PCB Stack-Up Design

The PCB stack-up, which refers to the arrangement of conductive layers and dielectric materials in a PCB, can be optimized to achieve the desired characteristic impedance. By selecting appropriate dielectric materials and adjusting the thickness of the dielectric layers, designers can fine-tune the characteristic impedance of the transmission lines.

Trace Width and Spacing

The width and spacing of the conductor traces on a PCB can be adjusted to achieve the target characteristic impedance. Wider traces generally result in lower characteristic impedance, while narrower traces lead to higher characteristic impedance. The spacing between traces also affects the coupling capacitance, which can impact the characteristic impedance.

Impedance Matching Techniques

Various impedance matching techniques can be employed to ensure proper matching between the source, transmission line, and load. These techniques include:

1. Series Termination: A series resistor is placed near the source to match the source impedance to the characteristic impedance of the transmission line. This method is effective for reducing reflections and ringing in unterminated or open-ended transmission lines.

2. Parallel Termination: A parallel resistor is placed at the end of the transmission line to match the load impedance to the characteristic impedance. This technique is useful for minimizing reflections in terminated transmission lines.

3. AC Termination: A combination of resistors and capacitors is used to provide frequency-dependent termination, which can be beneficial for broadband applications or systems with varying load impedances.

Signal Integrity Simulation and Analysis

To ensure signal integrity and optimize characteristic impedance, designers often rely on simulation and analysis tools. These tools allow designers to model and simulate the behavior of transmission lines, predict signal integrity issues, and optimize the design for optimal performance.

Some popular signal integrity simulation and analysis tools include:

• Keysight Advanced Design System (ADS)
• Ansys HFSS
• Cadence Sigrity
• Mentor Graphics HyperLynx

These tools enable designers to perform tasks such as:

• Transmission line modeling and simulation
• Impedance calculation and optimization
• Reflection and crosstalk analysis
• Eye diagram analysis
• Time-domain and frequency-domain simulations

By leveraging these tools, designers can identify and mitigate signal integrity issues early in the design process, reducing the risk of costly redesigns and improving overall system performance.

Best Practices for Signal Integrity and Impedance Control

To ensure optimal signal integrity and characteristic impedance in high-speed digital designs, consider the following best practices:

1. Understand the system requirements and constraints, including the target impedance, frequency range, and signal rise/fall times.

2. Choose appropriate dielectric materials and PCB stack-up configurations to achieve the desired characteristic impedance.

3. Carefully design the conductor geometry, including trace width and spacing, to maintain consistent impedance throughout the system.

4. Use appropriate impedance matching techniques, such as series or parallel termination, to minimize reflections and ensure proper signal termination.

5. Minimize discontinuities in the signal path, such as vias, connectors, and stubs, which can cause impedance mismatches and degrade signal integrity.

6. Employ proper grounding and shielding techniques to reduce electromagnetic interference (EMI) and crosstalk between signals.

7. Perform signal integrity simulations and analyses to predict and mitigate potential issues early in the design process.

8. Validate the design through measurements and testing, using tools such as time-domain reflectometry (TDR) and vector network analyzers (VNA) to characterize the impedance and signal integrity.

By following these best practices and maintaining a focus on signal integrity and characteristic impedance throughout the design process, engineers can create robust, high-performance electronic systems that operate reliably in demanding applications.

Frequently Asked Questions (FAQ)

1. What is the difference between characteristic impedance and Input Impedance?

2. Characteristic impedance (Z0) is an intrinsic property of a transmission line and depends on its geometry and materials. It is the ratio of the voltage to the current in an infinitely long or properly terminated transmission line. Input impedance, on the other hand, is the impedance seen looking into a network or device from its input terminals, which may differ from the characteristic impedance due to reflections or load conditions.

3. How does impedance mismatch affect signal integrity?

4. Impedance mismatch occurs when the impedance of the source, transmission line, or load differs from the characteristic impedance. This mismatch causes a portion of the signal energy to be reflected back to the source, leading to signal distortion, ringing, and other undesirable effects. These reflections can cause intersymbol interference (ISI), reduce the signal-to-noise ratio (SNR), and limit the maximum data rate of the system.

5. What is the purpose of impedance matching in high-speed digital designs?

6. The purpose of impedance matching is to minimize reflections and ensure optimal signal transfer between the source, transmission line, and load. By matching the impedances, designers can reduce the amount of energy reflected back to the source, improving signal integrity and allowing for higher data rates and longer transmission distances.

7. How can I measure the characteristic impedance of a transmission line?

8. The characteristic impedance of a transmission line can be measured using a time-domain reflectometer (TDR) or a vector network analyzer (VNA). A TDR sends a fast rise time pulse down the transmission line and measures the reflected signal to determine the impedance profile along the line. A VNA, on the other hand, measures the scattering parameters (S-parameters) of the transmission line over a range of frequencies, from which the characteristic impedance can be calculated.

9. What are some common challenges in maintaining signal integrity and characteristic impedance in high-speed PCB designs?

10. Some common challenges include:
    • Selecting the appropriate dielectric materials and PCB stack-up to achieve the desired characteristic impedance
    • Controlling the conductor geometry, such as trace width and spacing, to maintain consistent impedance
    • Minimizing discontinuities in the signal path, such as vias, connectors, and stubs
    • Managing crosstalk and electromagnetic interference (EMI) through proper grounding and shielding techniques
    • Ensuring adequate power integrity and decoupling to minimize power supply noise and signal degradation
    • Validating the design through accurate simulations and measurements to identify and mitigate potential signal integrity issues

By understanding the principles of signal integrity and characteristic impedance, and by following best practices in high-speed digital design, engineers can overcome these challenges and create reliable, high-performance electronic systems.
