Selection Chip Capacitor & Its Storage

Introduction to Chip Capacitors

Chip capacitors, also known as multilayer ceramic capacitors (MLCCs), are essential components in modern electronic devices. These tiny, surface-mounted devices are used for a variety of purposes, including filtering, decoupling, and energy storage. With the increasing demand for smaller, more efficient electronic devices, the importance of chip capacitors has grown significantly in recent years.

Types of Chip Capacitors

There are several types of chip capacitors available, each with its own unique characteristics and applications. The most common types include:

1. X7R Capacitors: These capacitors have a capacitance change of ±15% over a temperature range of -55°C to +125°C. They are widely used in general-purpose applications.

2. X5R Capacitors: With a capacitance change of ±15% over a temperature range of -55°C to +85°C, X5R capacitors are suitable for applications that require a more stable capacitance value.

3. Y5V Capacitors: These capacitors have a capacitance change of +22%/-82% over a temperature range of -30°C to +85°C. They are used in applications where high capacitance values are required, but the stability of the capacitance is less critical.

4. NPO (COG) Capacitors: NPO capacitors have a capacitance change of ±30ppm/°C over a temperature range of -55°C to +125°C. They are used in high-frequency and high-precision applications.

Selecting the Right Chip Capacitor

When selecting a chip capacitor for your application, there are several factors to consider:

Capacitance Value

The capacitance value is the most important parameter when choosing a chip capacitor. It determines the amount of charge that the capacitor can store and the frequency response of the component. Capacitance values range from a few picofarads (pF) to several microfarads (μF).

Voltage Rating

The voltage rating of a chip capacitor indicates the maximum voltage that can be applied across the component without causing damage. It is essential to choose a capacitor with a voltage rating higher than the maximum expected voltage in your application.

Temperature Coefficient

The temperature coefficient of a chip capacitor describes how its capacitance value changes with temperature. It is essential to select a capacitor with a temperature coefficient suitable for your application’s operating temperature range.

Package Size

Chip capacitors come in various package sizes, ranging from 0201 (0.02″ x 0.01″) to 2220 (0.22″ x 0.20″). The choice of package size depends on the available space on the printed circuit board (PCB) and the required capacitance value.

Proper Storage of Chip Capacitors

Proper storage of chip capacitors is crucial to maintain their performance and reliability. Improper storage can lead to moisture absorption, mechanical damage, and contamination, which can adversely affect the capacitor’s characteristics.

Moisture Control

Chip capacitors are sensitive to moisture absorption, which can cause cracking and delamination of the ceramic layers during the soldering process. To prevent moisture absorption, follow these guidelines:

1. Store chip capacitors in a dry, temperature-controlled environment with a relative humidity of less than 60%.
2. Use moisture barrier bags (MBBs) with desiccants to store capacitors for extended periods.
3. Follow the manufacturer’s recommended floor life and storage conditions.

Mechanical Protection

Chip capacitors are fragile and can be easily damaged by mechanical stress. To protect them from mechanical damage:

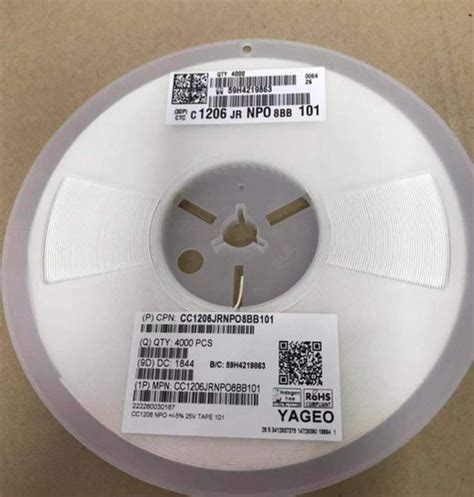

1. Store capacitors in their original packaging until ready for use.
2. Handle capacitors carefully, avoiding excessive force or bending.
3. Use appropriate pick-and-place equipment and nozzles when mounting capacitors onto PCBs.

Contamination Prevention

Contamination of chip capacitors can lead to poor solderability and reduced performance. To prevent contamination:

1. Store capacitors in a clean, dust-free environment.
2. Avoid exposing capacitors to chemicals, such as solvents or cleaning agents.
3. Handle capacitors with gloves or tweezers to minimize the transfer of oils and contaminants from the skin.

Frequently Asked Questions (FAQ)

1. What is the shelf life of chip capacitors?

The shelf life of chip capacitors depends on the storage conditions and the type of capacitor. Generally, chip capacitors have a shelf life of 12-24 months when stored in a dry, temperature-controlled environment with proper moisture control.

2. Can chip capacitors be reused after soldering?

It is not recommended to reuse chip capacitors after soldering, as the removal process can cause mechanical damage and alter the capacitor’s characteristics. Always use new capacitors for each application.

3. How do I interpret the capacitance code on a chip capacitor?

Chip capacitors often use a three-digit code to indicate their capacitance value. The first two digits represent the significant figures, while the third digit represents the number of zeros that follow. For example, a capacitor marked “104” has a capacitance value of 10 x 10^4 pF, or 0.1 μF.

4. What is the difference between X7R and X5R capacitors?

The main difference between X7R and X5R capacitors is their operating temperature range. X7R capacitors have a wider temperature range (-55°C to +125°C) compared to X5R capacitors (-55°C to +85°C). Both types have a capacitance change of ±15% over their respective temperature ranges.

5. How do I determine the voltage rating of a chip capacitor?

The voltage rating of a chip capacitor is usually printed on the component’s body or specified in the manufacturer’s datasheet. It is essential to choose a capacitor with a voltage rating higher than the maximum expected voltage in your application to ensure reliable operation and prevent damage to the component.

Conclusion

Chip capacitors play a crucial role in modern electronic devices, offering a compact, efficient solution for filtering, decoupling, and energy storage. Selecting the appropriate chip capacitor for your application involves considering factors such as capacitance value, voltage rating, temperature coefficient, and package size.

Proper storage of chip capacitors is essential to maintain their performance and reliability. By controlling moisture, providing mechanical protection, and preventing contamination, you can ensure that your chip capacitors are ready for use when needed.

By understanding the characteristics and storage requirements of chip capacitors, engineers and technicians can make informed decisions when designing and manufacturing electronic devices, leading to more reliable and efficient products.
