PCBA Test: A Comprehensive Guide

What is PCBA Test?

PCBA (Printed Circuit Board Assembly) testing is a crucial process in the manufacturing of electronic devices. It involves various techniques to ensure that the assembled PCB functions as intended and meets the required quality standards. PCBA Testing helps identify defects, such as short circuits, open circuits, component misalignments, and incorrect component placements, which could lead to device malfunctions or failures.

Why is PCBA Test Important?

PCBA testing is essential for several reasons:

1. Quality Assurance: Testing ensures that the PCB Assembly meets the specified quality standards and functions as intended, reducing the risk of defective products reaching the end-user.

2. Cost Reduction: Identifying defects early in the manufacturing process helps minimize the cost of rework and repairs, as well as preventing potential product recalls.

3. Reliability: Thorough testing improves the overall reliability of the electronic device, reducing the likelihood of failures during operation.

4. Compliance: PCBA testing helps ensure that the product complies with relevant industry standards and regulations, such as IPC (Association Connecting Electronics Industries) standards.

Types of PCBA Tests

There are various types of PCBA tests, each designed to detect specific defects or verify certain aspects of the assembly. Some of the most common PCBA tests include:

In-Circuit Testing (ICT)

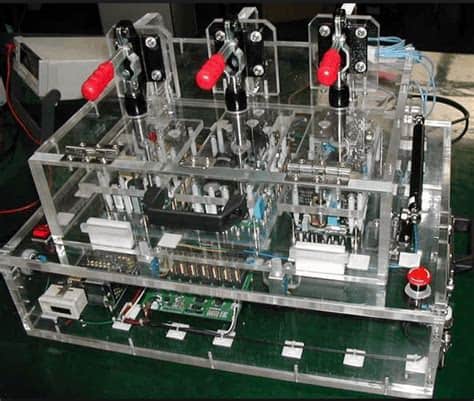

In-Circuit Testing is a Bed-of-Nails Test that verifies the functionality of individual components on the PCB. The test fixture consists of a set of pins that make contact with specific test points on the PCB, allowing the tester to measure the electrical characteristics of each component.

Advantages of ICT:
– Detects component-level faults
– Tests both analog and digital components
– Provides good test coverage

Disadvantages of ICT:
– Requires custom test fixtures
– Limited access to buried or hidden components
– May not detect all functional defects

Flying Probe Testing

Flying Probe Testing uses movable test probes to make contact with test points on the PCB. Unlike ICT, Flying Probe Testing does not require a custom test fixture, making it more flexible and cost-effective for low-volume production or prototype testing.

Advantages of Flying Probe Testing:
– No custom test fixtures required
– Ideal for low-volume production and prototypes
– Can access test points that are difficult to reach with ICT

Disadvantages of Flying Probe Testing:
– Slower than ICT
– Limited number of probes may affect test coverage
– Higher cost per unit compared to ICT for high-volume production

Functional Testing

Functional Testing verifies the overall functionality of the assembled PCB by simulating real-world operating conditions. This type of testing ensures that the PCB performs as intended and meets the specified requirements.

Advantages of Functional Testing:
– Verifies the overall functionality of the PCB
– Detects defects that may not be caught by other tests
– Ensures compatibility with other components or systems

Disadvantages of Functional Testing:
– May require custom test setups
– Can be time-consuming and labor-intensive
– May not provide detailed information on specific component failures

Boundary Scan Testing (BST)

Boundary Scan Testing, also known as JTAG (Joint Test Action Group) testing, is a method that uses dedicated hardware and software to test the interconnections between digital components on the PCB. This type of testing is particularly useful for detecting defects in hard-to-access components, such as BGA (Ball Grid Array) packages.

Advantages of Boundary Scan Testing:
– Tests hard-to-access components
– Detects interconnect defects
– Provides good test coverage for digital components

Disadvantages of Boundary Scan Testing:
– Limited to digital components that support JTAG
– Requires additional hardware and software
– May not detect all functional defects

X-Ray Inspection

X-Ray Inspection is a non-destructive testing method that uses X-rays to visualize the internal structure of the PCB assembly. This type of testing is particularly useful for detecting defects in hidden or obscured components, such as BGA packages or multi-layer PCBs.

Advantages of X-Ray Inspection:
– Non-destructive testing method
– Detects defects in hidden or obscured components
– Provides detailed images of the internal structure

Disadvantages of X-Ray Inspection:
– Requires specialized equipment
– May not detect all functional defects
– Interpretation of X-ray images requires skilled operators

PCBA Test Equipment

To perform the various types of PCBA tests, manufacturers use a range of specialized equipment. Some of the most common PCBA test equipment includes:

1. In-Circuit Testers: These automated test systems are used for In-Circuit Testing, utilizing a bed-of-nails fixture to make contact with test points on the PCB.

2. Flying Probe Testers: These automated test systems use movable test probes to perform Flying Probe Testing, providing flexibility for low-volume production or prototype testing.

3. Boundary Scan Testers: These systems are used for Boundary Scan Testing, utilizing dedicated hardware and software to test the interconnections between digital components on the PCB.

4. X-Ray Inspection Systems: These systems use X-rays to create detailed images of the internal structure of the PCB assembly, allowing for the detection of defects in hidden or obscured components.

5. Functional Test Systems: These systems are designed to simulate real-world operating conditions and verify the overall functionality of the assembled PCB.

PCBA Test Process

The PCBA test process typically involves the following steps:

1. Test Planning: Develop a comprehensive test plan that outlines the specific tests to be performed, the test coverage required, and the acceptance criteria for each test.

2. Test Fixture Design and Fabrication: For In-Circuit Testing, design and fabricate a custom test fixture that matches the PCB layout and provides access to the required test points.

3. Test Program Development: Create test programs for each type of test, defining the test sequences, stimuli, and expected responses.

4. PCB Assembly: Assemble the PCB according to the design specifications, ensuring proper component placement and soldering.

5. Test Execution: Perform the planned tests using the appropriate test equipment and test programs, recording the results and any defects identified.

6. Defect Analysis and Repair: Analyze the test results to identify any defects or failures, and perform necessary repairs or rework to correct the issues.

7. Re-testing: After repairs or rework, re-test the PCB to ensure that the defects have been successfully corrected and that the assembly meets the required quality standards.

8. Documentation and Reporting: Document the test results, including any defects found and the corrective actions taken, and generate test reports for traceability and quality assurance purposes.

Best Practices for PCBA Testing

To ensure effective and efficient PCBA testing, consider the following best practices:

1. Early Involvement: Involve the test engineering team early in the product development process to ensure that the PCB design is testable and that the required test points are accessible.

2. Comprehensive Test Coverage: Develop a comprehensive test plan that covers all critical aspects of the PCB assembly, including component functionality, interconnections, and overall system performance.

3. Automated Testing: Utilize automated test equipment and software to improve test efficiency, repeatability, and accuracy, especially for high-volume production.

4. Standardization: Standardize test procedures, equipment, and software across the organization to ensure consistency and reduce training requirements.

5. Continuous Improvement: Regularly review and analyze test results to identify opportunities for process improvements, such as reducing defect rates or increasing test coverage.

6. Traceability: Maintain detailed records of test results, defects, and corrective actions to ensure traceability and facilitate root cause analysis.

7. Training and Certification: Provide adequate training and certification for test operators to ensure that they have the necessary skills and knowledge to perform PCBA testing effectively.

Frequently Asked Questions (FAQ)

1. What is the difference between ICT and Flying Probe Testing?

2. ICT uses a bed-of-nails fixture to make contact with test points on the PCB, while Flying Probe Testing uses movable test probes. ICT is faster and more suitable for high-volume production, while Flying Probe Testing is more flexible and ideal for low-volume production or prototype testing.

3. Can PCBA testing detect all defects?

4. While PCBA testing is designed to detect a wide range of defects, no single test can guarantee 100% defect detection. A combination of different test methods, such as ICT, Flying Probe Testing, Boundary Scan Testing, and Functional Testing, can help maximize test coverage and minimize the risk of defects escaping detection.

5. How long does PCBA testing take?

6. The duration of PCBA testing depends on various factors, such as the complexity of the PCB assembly, the number of components, and the specific tests performed. In general, ICT is faster than Flying Probe Testing, but the overall test time can range from a few seconds to several minutes per board.

7. Is PCBA testing required for all electronic products?

8. While PCBA testing is highly recommended for most electronic products to ensure quality and reliability, the specific testing requirements may vary depending on the industry, application, and regulatory standards. Some industries, such as aerospace, automotive, and medical devices, have stringent testing requirements due to the critical nature of their products.

9. Can PCBA testing be performed in-house, or should it be outsourced?

10. The decision to perform PCBA testing in-house or outsource it depends on factors such as the company’s resources, expertise, and production volume. In-house testing provides greater control and flexibility, but it requires significant investments in equipment, personnel, and training. Outsourcing to specialized PCBA testing service providers can be more cost-effective for companies with limited resources or low-volume production.

Conclusion

PCBA testing is a critical process in the manufacturing of electronic devices, ensuring that the assembled PCBs meet the required quality standards and function as intended. By implementing a comprehensive PCBA test strategy that includes various test methods, such as In-Circuit Testing, Flying Probe Testing, Boundary Scan Testing, and Functional Testing, manufacturers can identify and correct defects early in the production process, reducing costs and improving product reliability.

To maximize the effectiveness of PCBA testing, manufacturers should follow best practices, such as involving the test engineering team early in the product development process, developing comprehensive test plans, utilizing automated test equipment, and maintaining detailed records for traceability and continuous improvement.

By investing in robust PCBA testing processes and equipment, electronics manufacturers can enhance the quality and reliability of their products, minimize the risk of defects and failures, and ultimately improve customer satisfaction and brand reputation.
