PCB Via: What is it, and Which Type Should You Choose?

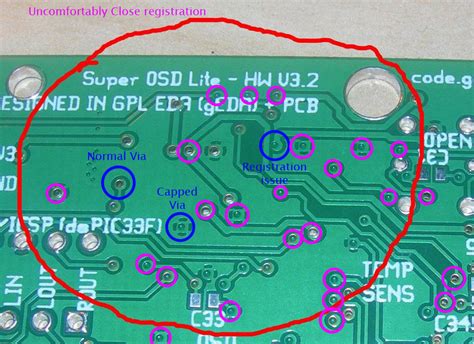

What is a PCB Via?

A PCB via, short for “vertical interconnect access,” is a small hole drilled through a printed circuit board to establish an electrical connection between different layers of the board. Vias are typically plated with a conductive material, such as copper, to ensure reliable electrical conductivity. They play a crucial role in PCB design by allowing designers to route traces and signals between layers, thereby maximizing board space and enabling more sophisticated layouts.

The Importance of PCB Vias

PCB vias serve several important functions in the design and functionality of a printed circuit board:

1. Layer Interconnection: Vias enable the interconnection of different layers within a multi-layer PCB, allowing signals and power to be routed between them.

2. Space Optimization: By utilizing vias, designers can route traces and components more efficiently, minimizing the overall size of the PCB and allowing for more compact designs.

3. Signal Integrity: Vias help maintain signal integrity by providing a direct path for signals to travel between layers, reducing the risk of signal degradation or interference.

4. Thermal Management: Vias can also serve as thermal conduits, helping to dissipate heat from components and evenly distribute it across the PCB.

Types of PCB Vias

There are several types of PCB vias, each with its own characteristics and applications. Understanding the differences between these types is essential for selecting the most appropriate via for your PCB design.

Through-Hole Vias

Through-hole vias are the most common type of via found in PCBs. As the name suggests, these vias extend through all layers of the board, creating a continuous electrical connection from the top to the bottom layer. Through-hole vias are typically used for components with wire leads, such as through-hole resistors and capacitors.

Advantages:
– Provide strong mechanical support for components
– Suitable for high-power applications
– Easy to inspect and repair

Disadvantages:
– Require more board space compared to other via types
– Limit the placement of components and traces on both sides of the board

Blind Vias

Blind vias are a type of via that starts on an outer layer of the PCB and terminates on an inner layer, without extending through the entire thickness of the board. These vias are used to connect an outer layer to one or more inner layers, but not to the opposite outer layer.

Advantages:
– Conserve board space by allowing components and traces to be placed on both sides of the board
– Provide more flexibility in routing and component placement
– Reduce the overall size and weight of the PCB

Disadvantages:
– More expensive to manufacture compared to through-hole vias
– Require specialized manufacturing processes and equipment

Buried Vias

Buried vias are similar to blind vias but are located entirely within the inner layers of a PCB. They do not extend to either of the outer layers of the board. Buried vias are used to interconnect inner layers without occupying space on the outer layers.

Advantages:
– Maximize board space by keeping the outer layers free for components and traces
– Provide more flexibility in routing and layer stackup design
– Enhance signal integrity by reducing the via’s exposure to external factors

Disadvantages:
– More expensive to manufacture compared to through-hole and blind vias
– Require precise alignment and registration during the PCB fabrication process
– Difficult to inspect and repair

Micro Vias

Micro vias, also known as laser vias or HDI (High-Density Interconnect) vias, are small-diameter vias created using laser drilling techniques. These vias are typically less than 150 microns in diameter and are used in high-density PCB designs where space is limited.

Advantages:
– Enable high-density routing and component placement
– Reduce the overall size and weight of the PCB
– Improve signal integrity by minimizing the via’s impact on signal propagation

Disadvantages:
– More expensive to manufacture compared to other via types
– Require specialized laser drilling equipment and processes
– Limited to smaller PCB Thicknesses due to the laser drilling process

Choosing the Right PCB Via

When selecting the most suitable PCB via for your design, consider the following factors:

1. PCB Thickness: The thickness of your PCB will influence the type of via you can use. Through-hole vias are suitable for thicker boards, while blind and buried vias are more appropriate for thinner, multi-layer designs.

2. Component Placement: Consider the placement of components on your PCB. If you need to maximize board space and place components on both sides of the board, blind or buried vias may be the best choice.

3. Signal Integrity: Evaluate the signal integrity requirements of your design. If you have high-speed or sensitive signals, micro vias or buried vias may provide better signal integrity by minimizing the via’s impact on signal propagation.

4. Manufacturing Constraints: Take into account the manufacturing capabilities of your PCB fabricator. Some via types, such as micro vias or buried vias, require specialized equipment and processes that may not be available at all fabricators.

5. Cost: Consider the cost implications of different via types. Through-hole vias are generally the most cost-effective, while blind, buried, and micro vias may incur higher manufacturing costs.

PCB Via Comparison Table

Frequently Asked Questions (FAQ)

1. What is the difference between a through-hole via and a blind via?
   A through-hole via extends through all layers of the PCB, creating a connection from the top to the bottom layer. In contrast, a blind via starts on an outer layer and terminates on an inner layer, without extending through the entire thickness of the board.

2. Can I use micro vias in a thick PCB?
   Micro vias are typically limited to smaller PCB thicknesses due to the laser drilling process used to create them. For thicker PCBs, through-hole or blind vias may be more suitable.

3. Are buried vias more expensive than through-hole vias?
   Yes, buried vias are generally more expensive to manufacture compared to through-hole vias. This is because buried vias require precise alignment and registration during the PCB fabrication process and may necessitate additional manufacturing steps.

4. How do I choose the right via size for my PCB design?
   The choice of via size depends on several factors, including the PCB thickness, component placement, routing requirements, and manufacturing constraints. It is essential to consult with your PCB fabricator to determine the appropriate via size for your specific design.

5. Can vias affect the signal integrity of my PCB?
   Yes, vias can impact signal integrity, especially in high-speed or sensitive designs. Vias can introduce discontinuities in the signal path, leading to reflections, crosstalk, and other signal integrity issues. To minimize these effects, consider using micro vias or buried vias, which have a smaller impact on signal propagation.

Conclusion

PCB vias are essential components in printed circuit board design, enabling the interconnection of different layers and allowing for more complex and compact layouts. Understanding the various types of vias, their advantages, and disadvantages is crucial for selecting the most suitable via for your specific application. By considering factors such as PCB thickness, component placement, signal integrity, manufacturing constraints, and cost, you can make an informed decision when choosing the right PCB via for your design.

When in doubt, consult with your PCB fabricator to ensure that your chosen via type is compatible with their manufacturing capabilities and can be reliably produced. By carefully selecting the appropriate PCB via, you can optimize your design, improve signal integrity, and create a high-quality printed circuit board that meets your specific requirements.
