PCB Capacitor-What You Should Know About It

Introduction to PCB Capacitors

A PCB capacitor is an essential component in modern electronic circuits. It is a passive two-terminal electrical component that stores electrical energy in an electric field. Capacitors are widely used in various applications, including filtering, coupling, decoupling, and energy storage. In this article, we will dive into the details of PCB capacitors, their types, applications, and selection criteria.

Types of PCB Capacitors

There are several types of PCB capacitors available in the market, each with its own unique characteristics and applications. Here are some of the most common types of PCB capacitors:

Ceramic Capacitors

Ceramic capacitors are the most widely used type of capacitor in electronic circuits. They are made of ceramic materials and have a high dielectric constant, which allows them to store a large amount of electrical energy in a small package. Ceramic capacitors are available in various shapes and sizes, including surface-mount and through-hole packages.

Advantages of Ceramic Capacitors

• High capacitance density
• Low equivalent series resistance (ESR)
• Good temperature stability
• Low cost

Disadvantages of Ceramic Capacitors

• Low voltage rating
• Prone to microphonic effects
• Piezoelectric effect can cause noise

Tantalum Capacitors

Tantalum capacitors are polarized capacitors that use tantalum metal as the anode and manganese dioxide as the cathode. They have a high capacitance density and are known for their reliability and long life. Tantalum capacitors are commonly used in power supply filtering, decoupling, and timing applications.

Advantages of Tantalum Capacitors

• High capacitance density
• Low leakage current
• Good temperature stability
• Long shelf life

Disadvantages of Tantalum Capacitors

• Polarized (must be connected with correct polarity)
• Expensive compared to other types
• Prone to failure if subjected to voltage spikes or reverse bias

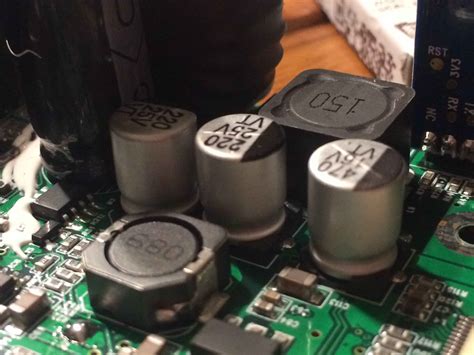

Aluminum Electrolytic Capacitors

Aluminum electrolytic capacitors are polarized capacitors that use aluminum oxide as the dielectric and an electrolytic solution as the cathode. They have a high capacitance value and are commonly used in power supply filtering, coupling, and decoupling applications.

Advantages of Aluminum Electrolytic Capacitors

• High capacitance values
• High voltage ratings
• Low cost

Disadvantages of Aluminum Electrolytic Capacitors

• Polarized (must be connected with correct polarity)
• Limited lifetime due to electrolyte evaporation
• High equivalent series resistance (ESR)
• Large size compared to other types

Film Capacitors

Film capacitors are non-polarized capacitors that use a thin plastic film as the dielectric. They are known for their high stability, low dissipation factor, and good frequency response. Film capacitors are commonly used in audio and high-frequency applications.

Advantages of Film Capacitors

• Non-polarized
• High stability
• Low dissipation factor
• Good frequency response

Disadvantages of Film Capacitors

• Lower capacitance density compared to other types
• Larger size compared to ceramic and tantalum capacitors
• Higher cost compared to ceramic capacitors

Applications of PCB Capacitors

PCB capacitors are used in a wide range of electronic applications. Here are some of the most common applications:

Power Supply Filtering

Capacitors are used in power supply circuits to filter out noise and ripple from the DC voltage. They are placed in parallel with the load to provide a low-impedance path for high-frequency noise and to smooth out voltage fluctuations.

Decoupling

Decoupling Capacitors are used to reduce noise and prevent signal interference between different parts of a circuit. They are placed close to the power pins of integrated circuits (ICs) to provide a local source of charge and to minimize the effect of power supply noise on the IC’s performance.

Coupling

Coupling capacitors are used to transfer AC signals between different stages of a circuit while blocking DC voltages. They are commonly used in audio and analog circuits to prevent DC offset voltage from affecting the signal.

Timing and Oscillation

Capacitors are used in timing and oscillation circuits to control the frequency and duty cycle of the output signal. They are used in conjunction with resistors and other components to create RC (resistor-capacitor) and LC (inductor-capacitor) oscillators.

Selecting the Right PCB Capacitor

When selecting a PCB capacitor for your application, there are several factors to consider. Here are some of the most important ones:

Capacitance Value

The capacitance value is the amount of charge that a capacitor can store. It is measured in farads (F) and is often expressed in microfarads (μF), nanofarads (nF), or picofarads (pF). The required capacitance value depends on the specific application and the desired performance.

Voltage Rating

The voltage rating is the maximum voltage that a capacitor can withstand without breaking down. It is important to select a capacitor with a voltage rating higher than the maximum voltage expected in the circuit.

Tolerance

The tolerance is the allowable variation in capacitance value from the nominal value. It is expressed as a percentage, such as ±10% or ±20%. A tighter tolerance means a more precise capacitance value, but it also means a higher cost.

Temperature Coefficient

The temperature coefficient is the change in capacitance value with respect to temperature. It is expressed in parts per million per degree Celsius (ppm/°C). A lower temperature coefficient means a more stable capacitance value over a wide temperature range.

Equivalent Series Resistance (ESR)

The equivalent series resistance (ESR) is the resistance in series with the capacitor that causes power loss and heating. It is important to select a capacitor with a low ESR to minimize power loss and improve efficiency.

Package Size and Mounting Type

PCB capacitors come in various package sizes and mounting types, such as surface-mount and through-hole. The package size and mounting type should be selected based on the available space on the PCB and the manufacturing process.

PCB Capacitor Selection Guide

To help you select the right PCB capacitor for your application, here is a quick selection guide:

Frequently Asked Questions (FAQ)

1. What is the difference between a polarized and non-polarized capacitor?

A polarized capacitor has a specific positive and negative terminal and must be connected with the correct polarity, while a non-polarized capacitor can be connected in either direction.

2. Can I replace a capacitor with a higher voltage rating?

Yes, you can replace a capacitor with a higher voltage rating as long as the capacitance value and other specifications are the same. However, using a capacitor with a lower voltage rating than required can cause the capacitor to fail.

3. What happens if I connect a polarized capacitor backwards?

Connecting a polarized capacitor backwards can cause it to fail and even explode. Always make sure to connect polarized capacitors with the correct polarity.

4. How do I determine the required capacitance value for my application?

The required capacitance value depends on the specific application and the desired performance. You can use online calculators or consult with an experienced engineer to determine the appropriate capacitance value for your circuit.

5. Can I use a surface-mount capacitor in a through-hole application?

Yes, you can use a surface-mount capacitor in a through-hole application by using a surface-mount to through-hole adapter or by soldering the capacitor directly to the PCB Pads. However, it is important to consider the mechanical stress and vibration that the capacitor may be subjected to in a through-hole application.

Conclusion

PCB capacitors are essential components in modern electronic circuits. They are used in a wide range of applications, including power supply filtering, decoupling, coupling, and timing. When selecting a PCB capacitor, it is important to consider factors such as capacitance value, voltage rating, tolerance, temperature coefficient, ESR, and package size and mounting type. By understanding the different types of PCB capacitors and their characteristics, you can select the right capacitor for your application and ensure reliable and efficient operation of your electronic circuit.
