MMBT3904: NPN Switching Transistor

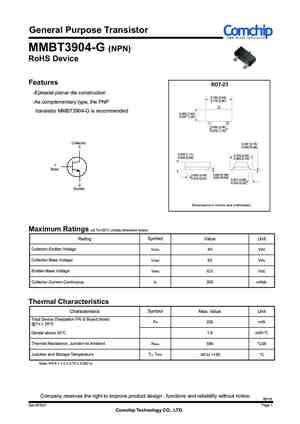

Introduction to the MMBT3904 Transistor

The MMBT3904 is a general-purpose NPN transistor that belongs to the BC547 family. It is manufactured using planar epitaxial technology, which ensures consistent performance and reliability. The transistor is housed in a SOT-23 package, making it compact and suitable for high-density circuit designs.

Key Features of the MMBT3904

• NPN bipolar junction transistor
• High current gain (hFE)
• Low collector-emitter saturation voltage (VCE(sat))
• Fast switching speed
• Small SOT-23 package
• Wide operating temperature range (-55°C to 150°C)

Electrical Characteristics

To effectively utilize the MMBT3904 transistor in circuit designs, it is essential to understand its electrical characteristics. The following table summarizes the key parameters of the MMBT3904:

These specifications provide a foundation for designing circuits that leverage the capabilities of the MMBT3904 transistor.

Operating Principle

The MMBT3904 is an NPN transistor, which means it consists of a thin layer of P-type semiconductor sandwiched between two N-type semiconductor layers. The three terminals of the transistor are called the collector (C), base (B), and emitter (E).

The operation of the MMBT3904 relies on the flow of current through the transistor. When a small current is applied to the base terminal, it allows a much larger current to flow from the collector to the emitter. This amplification effect is quantified by the DC current gain (hFE), which typically ranges from 100 to 300 for the MMBT3904.

The MMBT3904 operates in three distinct regions:

1. Cutoff Region: When the base-emitter junction is not forward-biased (VBE < 0.6V), the transistor is in the cutoff region. In this state, no current flows through the collector-emitter path, and the transistor acts as an open switch.

2. Active Region: When the base-emitter junction is forward-biased (VBE > 0.6V) and the collector-base junction is reverse-biased, the transistor operates in the active region. In this mode, the collector current is proportional to the base current, amplified by the current gain (hFE).

3. Saturation Region: If both the base-emitter and collector-base junctions are forward-biased, the transistor enters the saturation region. In this state, the collector current reaches its maximum value, and the transistor acts as a closed switch.

Understanding these operating regions is crucial for designing circuits that harness the switching and amplification capabilities of the MMBT3904 transistor.

Biasing Techniques

To properly utilize the MMBT3904 transistor in a circuit, it is essential to bias it correctly. Biasing involves setting the operating point of the transistor to ensure stable and predictable performance. There are several common biasing techniques used with the MMBT3904:

Fixed Bias

In a fixed bias configuration, the base of the transistor is connected to a fixed voltage divider network. The resistor values are chosen to provide the desired base current and establish the operating point. While simple to implement, fixed bias is sensitive to temperature variations and may result in thermal runaway.

Emitter Bias

Emitter bias introduces a resistor in the emitter path of the transistor. This resistor provides negative feedback, stabilizing the operating point and reducing the impact of temperature variations. Emitter bias is commonly used in low-power amplifier circuits.

Voltage Divider Bias

Voltage divider bias combines the benefits of fixed bias and emitter bias. It utilizes a voltage divider network to set the base voltage and an emitter resistor for stability. This biasing technique offers good temperature stability and is widely used in amplifier and switching circuits.

Collector Feedback Bias

Collector feedback bias employs a feedback resistor connected between the collector and base of the transistor. This configuration provides excellent stability and is often used in high-gain amplifier stages.

Selecting the appropriate biasing technique depends on the specific requirements of the circuit, such as gain, stability, and power consumption.

MMBT3904 in Switching Applications

One of the primary applications of the MMBT3904 transistor is in switching circuits. Its fast switching speed and low saturation voltage make it well-suited for digital logic and control applications.

Basic Switching Circuit

In a basic switching circuit, the MMBT3904 is used to control the flow of current through a load, such as an LED or a relay. The base of the transistor is connected to a control signal, while the collector and emitter are connected in series with the load and ground.

When the control signal is high (VBE > 0.6V), the transistor turns on, allowing current to flow through the load. Conversely, when the control signal is low (VBE < 0.6V), the transistor turns off, interrupting the current flow.

Inverter Circuit

The MMBT3904 can be used to build an inverter circuit, which outputs the logical opposite of its input. In this configuration, the transistor is connected in a common-emitter topology with a pull-up resistor at the collector.

When the input is low, the transistor is in the cutoff region, and the output is pulled up to the supply voltage through the pull-up resistor. When the input is high, the transistor saturates, and the output is pulled down to ground.

Push-Pull Output Stage

The MMBT3904 can be combined with a PNP transistor, such as the MMBT3906, to create a push-pull output stage. This configuration is commonly used in power amplifiers and motor drivers.

In a push-pull output stage, the NPN and PNP transistors are connected in a complementary fashion. When the input signal is positive, the NPN transistor conducts, sourcing current to the load. When the input signal is negative, the PNP transistor conducts, sinking current from the load. This arrangement allows for efficient power delivery and reduces distortion.

MMBT3904 in Amplifier Applications

The MMBT3904 transistor is also widely used in amplifier circuits, where it provides voltage and current gain. Its high transition frequency (fT) and good linearity make it suitable for both audio and RF applications.

Common-Emitter Amplifier

The common-emitter amplifier is the most basic and widely used transistor amplifier configuration. In this topology, the input signal is applied to the base, the output is taken from the collector, and the emitter is common to both the input and output.

The common-emitter amplifier provides a moderate voltage gain and a high current gain. The gain can be set by adjusting the collector and emitter resistor values. This configuration is often used in low-noise pre-amplifiers and voltage amplification stages.

Emitter Follower

The emitter follower, also known as a common-collector amplifier, is a configuration where the input signal is applied to the base, and the output is taken from the emitter. The collector is connected to the supply voltage.

The emitter follower provides a voltage gain of approximately unity but offers a high current gain and low output impedance. This makes it suitable for buffer stages, impedance matching, and driving low-impedance loads.

Differential Amplifier

The MMBT3904 can be used in a differential amplifier configuration, which amplifies the difference between two input signals while rejecting common-mode noise. This topology is commonly employed in operational amplifiers and instrumentation amplifiers.

In a differential amplifier, two MMBT3904 transistors are connected with their emitters coupled together. The input signals are applied to the bases of the transistors, and the output is taken from the collectors. A constant current source is used to bias the emitters and set the operating point.

Differential amplifiers offer high common-mode rejection, good linearity, and low noise, making them ideal for precision analog signal processing.

Thermal Considerations

Like all semiconductor devices, the MMBT3904 transistor is sensitive to temperature variations. Proper thermal management is essential to ensure reliable operation and prevent damage to the device.

Power Dissipation

The power dissipation of the MMBT3904 is limited by its package and the ambient temperature. The maximum collector dissipation (PC) is specified as 350 mW at an ambient temperature of 25°C. However, this value decreases with increasing temperature.

To calculate the maximum power dissipation at a given temperature, the following equation can be used:

PD = (TJ(max) - TA) / ΘJA

Where:
– PD is the maximum power dissipation in watts (W)
– TJ(max) is the maximum junction temperature (150°C for the MMBT3904)
– TA is the ambient temperature in °C
– ΘJA is the thermal resistance from junction to ambient in °C/W (typically around 350°C/W for the SOT-23 package)

It is crucial to ensure that the power dissipation of the MMBT3904 does not exceed the calculated maximum value to prevent thermal damage.

Heat Sinking

In applications where the MMBT3904 is subject to high power dissipation, it may be necessary to use a heat sink to enhance thermal dissipation. A heat sink provides a larger surface area for heat transfer and helps maintain the transistor’s junction temperature within safe limits.

When selecting a heat sink, factors such as thermal resistance, size, and mounting compatibility should be considered. The thermal resistance of the heat sink should be low enough to effectively dissipate the generated heat.

PCB Layout Considerations

Proper PCB layout techniques can also help manage the thermal performance of the MMBT3904 transistor. Some guidelines to follow include:

• Place the transistor away from heat-generating components
• Provide sufficient copper area around the transistor for heat dissipation
• Use thermal vias to transfer heat from the transistor to other layers of the PCB
• Consider using a thermal pad or copper pour on the bottom layer of the PCB for better heat spreading

By adhering to these thermal management practices, designers can ensure the reliable and long-term operation of the MMBT3904 transistor in their circuits.

MMBT3904 Application Examples

The MMBT3904 transistor finds use in a wide range of electronic circuits. Here are a few examples of common applications:

LED Driver

The MMBT3904 can be used as a simple LED driver, controlling the current through an LED based on an input signal. In this application, the transistor is connected in a common-emitter configuration with the LED and a current-limiting resistor in the collector path.

Transistor Switch

The MMBT3904 is often employed as a transistor switch, turning a load on or off based on a control signal. This is useful in applications such as relay drivers, motor controllers, and digital logic circuits.

Audio Amplifier

In audio applications, the MMBT3904 can be used as a pre-amplifier or a driver stage in a multi-stage amplifier design. Its low noise and good linearity make it suitable for such applications.

Temperature Sensor

The temperature-dependent characteristics of the MMBT3904 can be exploited to create a simple temperature sensor. By monitoring the base-emitter voltage (VBE) of the transistor at a constant collector current, temperature changes can be detected and measured.

Logic Gates

The MMBT3904 can be used to implement basic logic gates, such as AND, OR, and NOT gates. By combining multiple transistors and resistors, more complex logic functions can be realized.

These are just a few examples of the many applications where the MMBT3904 transistor can be utilized. Its versatility, reliability, and performance make it a popular choice among electronic designers.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum collector-emitter voltage rating of the MMBT3904?
   A: The maximum collector-emitter voltage (VCEO) of the MMBT3904 is 40V.

2. Q: Can the MMBT3904 be used as a switch?
   A: Yes, the MMBT3904 is commonly used as a switch in various applications, such as relay drivers, motor controllers, and digital logic circuits.

3. Q: What is the typical current gain (hFE) of the MMBT3904?
   A: The typical current gain (hFE) of the MMBT3904 ranges from 100 to 300.

4. Q: Is the MMBT3904 suitable for high-frequency applications?
   A: The MMBT3904 has a transition frequency (fT) of 300 MHz, making it suitable for many high-frequency applications. However, for very high-frequency circuits, RF-specific transistors may be more appropriate.

5. Q: How do I properly bias the MMBT3904 transistor?
   A: There are several biasing techniques for the MMBT3904, including fixed bias, emitter bias, voltage divider bias, and collector feedback bias. The choice of biasing method depends on the specific requirements of the circuit, such as gain, stability, and power consumption.

Conclusion

The MMBT3904 is a versatile and widely used NPN switching transistor that finds applications in a broad range of electronic circuits. Its high current gain, fast switching speed, and low saturation voltage make it an excellent choice for switching, amplification, and logic applications.

Understanding the electrical characteristics, operating principles, and biasing techniques of the MMBT3904 is essential for designing reliable and efficient circuits. Proper thermal management and PCB layout considerations should also be taken into account to ensure optimal performance and long-term reliability.

By leveraging the capabilities of the MMBT3904 transistor and following best design practices, electronic engineers and hobbyists can create robust and high-performance circuits for a wide variety of applications. Whether you are designing a simple LED driver or a complex audio amplifier, the MMBT3904 is a trusted and reliable component that can help bring your projects to life.
