lm386 Amp: Everything You Need to Know

What is the LM386 Amplifier?

The LM386 is a low-voltage audio power amplifier IC designed by National Semiconductor (now part of Texas Instruments). It is an 8-pin DIP (Dual Inline Package) IC that can deliver up to 1W of output power with a minimal number of external components. The LM386 operates on a wide range of supply voltages, from 4V to 12V, making it suitable for battery-powered applications.

Key Features of the LM386

• Low quiescent current drain: 4mA
• Voltage gain range: 20 to 200
• Wide supply voltage range: 4V to 12V
• Low distortion: 0.2% at 1W output power
• Minimal external components required
• Short-circuit and thermal protection

LM386 Pinout and Pin Description

The LM386 has 8 pins, each with a specific function. Here’s a table describing the pinout:

LM386 Electrical Characteristics

To effectively use the LM386 in your projects, it’s essential to understand its electrical characteristics. The following table summarizes the key specifications:

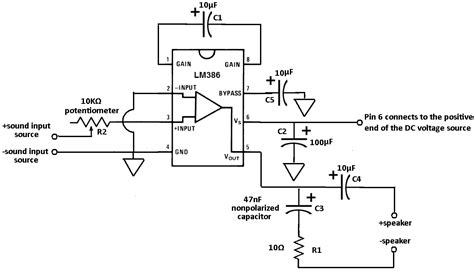

Basic LM386 Amplifier Circuit

To get started with the LM386, let’s build a basic amplifier circuit. This simple circuit requires only a few external components and can be easily assembled on a breadboard or a custom PCB.

Components Required

• LM386 IC
• 10μF electrolytic capacitor
• 0.1μF ceramic capacitor
• 10kΩ potentiometer
• 8Ω speaker
• Audio input source (e.g., 3.5mm audio jack)

Step-by-Step Guide

1. Connect the positive supply voltage (VS) to pin 5 of the LM386. This can be a battery or a regulated power supply between 4V and 12V.
2. Connect the ground (GND) to pin 4 of the LM386.
3. Place a 10μF electrolytic capacitor between the positive supply voltage and ground to filter the power supply.
4. Connect the audio input source to pin 3 (non-inverting input) of the LM386. Use a 10kΩ potentiometer as a volume control by connecting its wiper to pin 3, one end to the audio input, and the other end to ground.
5. Connect a 0.1μF ceramic capacitor between pin 2 (inverting input) and ground to eliminate any high-frequency noise.
6. Connect the 8Ω speaker between pin 8 (output) and ground.
7. To increase the gain, connect a capacitor between pins 1 and 8. The capacitor value determines the gain: 10μF for a gain of 200, 4.7μF for a gain of 50, and 2.2μF for a gain of 20.

Advanced LM386 Amplifier Configurations

While the basic LM386 amplifier circuit is sufficient for many applications, there are several advanced configurations that can enhance its performance and functionality.

Bass Boost

To add bass boost to your LM386 amplifier, you can use the BYPASS pin (pin 6) and an external capacitor. Connect a capacitor between pin 6 and ground to create a low-pass filter that boosts the low frequencies. The capacitor value determines the cutoff frequency: 10μF for a cutoff frequency of 80Hz, and 4.7μF for a cutoff frequency of 120Hz.

Tone Control

You can implement a simple tone control circuit using a potentiometer and a capacitor. Connect a 100kΩ potentiometer in series with a 0.01μF capacitor between the audio input and ground. Adjust the potentiometer to control the high-frequency response of the amplifier.

Bridge Configuration

To increase the output power, you can use two LM386 ICs in a bridge configuration. This setup doubles the output voltage swing and quadruples the output power. Connect the output of the first LM386 to the non-inverting input of the second LM386, and connect the inverting input of the second LM386 to ground. The speaker is connected between the outputs of both LM386 ICs.

LM386 Applications

The LM386 amplifier is versatile and can be used in a wide range of audio applications, such as:

• Portable audio devices (e.g., MP3 players, radios)
• Guitar and instrument amplifiers
• Intercom systems
• Desktop computer speakers
• Headphone amplifiers
• DIY audio projects

Troubleshooting Tips

If you encounter issues with your LM386 amplifier, consider the following troubleshooting tips:

• Check the power supply voltage and ensure it is within the specified range (4V to 12V).
• Verify that all connections are secure and correctly wired.
• Ensure the audio input signal is not too high, as this can cause distortion.
• Check the speaker impedance and make sure it matches the LM386’s output.
• If experiencing excessive noise, add additional filtering capacitors or use shielded cables for input connections.

Frequently Asked Questions (FAQ)

1. Q: Can I use the LM386 with a single power supply?
   A: Yes, the LM386 is designed to operate with a single power supply between 4V and 12V.

2. Q: What is the maximum output power of the LM386?
   A: The LM386 can deliver up to 1W of output power with a 12V supply and an 8Ω speaker.

3. Q: Can I use the LM386 with a 4Ω speaker?
   A: While the LM386 can drive a 4Ω speaker, it is recommended to use an 8Ω speaker for optimal performance and to avoid overheating the IC.

4. Q: How can I reduce the noise in my LM386 amplifier?
   A: To reduce noise, ensure proper grounding, use filtered power supplies, and add decoupling capacitors close to the LM386’s power supply pin.

5. Q: Can I cascade multiple LM386 ICs for higher output power?
   A: Yes, you can cascade multiple LM386 ICs to increase the output power. However, it is essential to consider the power supply requirements and ensure proper heat dissipation.

Conclusion

The LM386 is a versatile and easy-to-use audio amplifier IC that offers excellent performance in a compact package. With its low cost, minimal external components, and wide supply voltage range, the LM386 is an ideal choice for a variety of audio applications. By understanding its features, specifications, and various circuit configurations, you can effectively incorporate the LM386 into your projects and create high-quality audio systems.

Whether you are a hobbyist, audio enthusiast, or professional designer, the LM386 amplifier provides a solid foundation for your audio projects. Experiment with different configurations, customize your circuits, and unleash your creativity to build impressive audio devices using the LM386.
