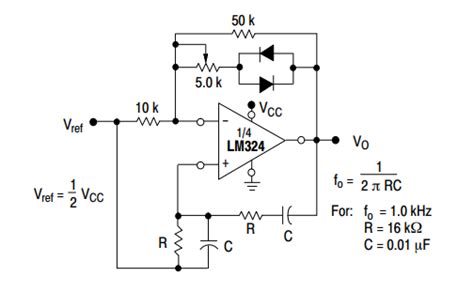

Introduction to lm324 Circuits
The LM324 is a popular and versatile integrated circuit (IC) that consists of four independent operational amplifiers (op-amps) in a single package. This IC is widely used in various analog circuits due to its low cost, ease of use, and excellent performance characteristics. In this beginner’s guide, we will explore the fundamentals of LM324 circuits, their applications, and provide some practical examples to help you get started.
What is an LM324?
The LM324 is a quad operational amplifier IC, meaning it contains four independent op-amps in a single 14-pin package. Each op-amp has two inputs (inverting and non-inverting) and one output. The LM324 can operate from a single power supply ranging from 3V to 32V, making it suitable for a wide range of applications.
| Pin | Function |
|---|---|
| 1 | Output 1 |
| 2 | Inverting Input 1 |
| 3 | Non-Inverting Input 1 |
| 4 | V- (Negative Supply) |
| 5 | Non-Inverting Input 2 |
| 6 | Inverting Input 2 |
| 7 | Output 2 |
| 8 | Output 3 |
| 9 | Inverting Input 3 |
| 10 | Non-Inverting Input 3 |
| 11 | V+ (Positive Supply) |
| 12 | Non-Inverting Input 4 |
| 13 | Inverting Input 4 |
| 14 | Output 4 |
Characteristics of LM324
The LM324 has several key characteristics that make it a popular choice for analog circuit design:
- Wide supply voltage range: 3V to 32V
- Low supply current: 700 μA per amplifier
- High gain: 100 dB
- Wide bandwidth: 1 MHz
- Input offset voltage: 2 mV (typical)
- Input bias current: 20 nA (typical)
- Output voltage swing: V+ – 1.5V to V- + 1.5V
These characteristics enable the LM324 to be used in a variety of applications, including signal conditioning, filtering, amplification, and comparator circuits.
Basic LM324 Circuits
Inverting Amplifier
An inverting amplifier circuit using the LM324 is one of the most basic configurations. The circuit amplifies the input signal and inverts its polarity at the output. The gain of the amplifier is determined by the ratio of the feedback resistor (Rf) to the input resistor (Rin).
The gain of the inverting amplifier is given by:
Gain = – (Rf / Rin)
For example, if Rf = 100 kΩ and Rin = 10 kΩ, the gain would be -10.
Non-Inverting Amplifier
A non-inverting amplifier circuit using the LM324 amplifies the input signal without inverting its polarity. The gain of the amplifier is determined by the ratio of the resistors in the feedback network (Rf and Rin).
The gain of the non-inverting amplifier is given by:
Gain = 1 + (Rf / Rin)
For example, if Rf = 90 kΩ and Rin = 10 kΩ, the gain would be 10.
Voltage Follower (Buffer)
A voltage follower, also known as a buffer, is a special case of the non-inverting amplifier where the gain is unity (1). The output voltage follows the input voltage, providing a high input impedance and low output impedance. This circuit is useful for isolating stages and preventing loading effects.
Summing Amplifier
A summing amplifier circuit using the LM324 adds multiple input signals together, with each input having its own gain determined by the input resistors. The output voltage is the sum of the scaled input voltages.
The output voltage of the summing amplifier is given by:
Vout = – (Rf / R1) * V1 – (Rf / R2) * V2 – … – (Rf / Rn) * Vn
For example, if Rf = 100 kΩ, R1 = 10 kΩ, R2 = 20 kΩ, V1 = 1V, and V2 = 2V, the output voltage would be:
Vout = – (100 kΩ / 10 kΩ) * 1V – (100 kΩ / 20 kΩ) * 2V = -15V
Advanced LM324 Circuits
Active Filters
Active filters are circuits that use op-amps, such as the LM324, along with passive components (resistors and capacitors) to filter signals based on their frequency content. The LM324 can be used to implement various types of active filters, including low-pass, high-pass, and band-pass filters.
Low-Pass Filter
A low-pass filter allows low-frequency signals to pass while attenuating high-frequency signals. The cutoff frequency (fc) is determined by the values of the resistor and capacitor in the circuit.
The cutoff frequency of the low-pass filter is given by:
fc = 1 / (2π * R * C)
For example, if R = 10 kΩ and C = 10 nF, the cutoff frequency would be approximately 1.6 kHz.
High-Pass Filter
A high-pass filter allows high-frequency signals to pass while attenuating low-frequency signals. The cutoff frequency (fc) is determined by the values of the resistor and capacitor in the circuit.
The cutoff frequency of the high-pass filter is given by:
fc = 1 / (2π * R * C)
For example, if R = 10 kΩ and C = 100 nF, the cutoff frequency would be approximately 160 Hz.
Band-Pass Filter
A band-pass filter allows a specific range of frequencies to pass while attenuating frequencies outside that range. The center frequency (f0) and bandwidth (BW) are determined by the values of the resistors and capacitors in the circuit.
The center frequency and bandwidth of the band-pass filter are given by:
f0 = 1 / (2π * sqrt(R1 * R2 * C1 * C2))
BW = 1 / (2π * R2 * C2)
For example, if R1 = R2 = 10 kΩ, C1 = C2 = 1 nF, the center frequency would be approximately 15.9 kHz, and the bandwidth would be approximately 15.9 kHz.
Comparator Circuits
A comparator circuit compares two input voltages and produces a digital output based on their relative levels. The LM324 can be used as a comparator by exploiting its high gain and wide output voltage swing.
In this circuit, the reference voltage (Vref) is connected to the non-inverting input, and the input signal (Vin) is connected to the inverting input. When Vin is less than Vref, the output will be high (close to V+). When Vin is greater than Vref, the output will be low (close to V-).
Schmitt Trigger
A Schmitt trigger is a comparator circuit with hysteresis, which helps to reduce the effects of noise on the input signal. The LM324 can be configured as a Schmitt trigger by adding positive feedback using a resistor divider network.
The upper and lower threshold voltages (Vut and Vlt) are determined by the resistor values in the feedback network:
Vut = Vref * (1 + R2 / (R1 + R2))
Vlt = Vref * (R2 / (R1 + R2))
For example, if Vref = 5V, R1 = 90 kΩ, and R2 = 10 kΩ, the upper threshold would be approximately 5.5V, and the lower threshold would be approximately 0.5V.
Applications of LM324 Circuits
Signal Conditioning
LM324 circuits are commonly used for signal conditioning, which involves modifying the characteristics of a signal to make it suitable for further processing or analysis. This can include amplification, filtering, level shifting, and impedance matching.
Example: Instrumentation Amplifier
An instrumentation amplifier is a type of differential amplifier that amplifies the difference between two input signals while rejecting common-mode noise. The LM324 can be used to build a simple instrumentation amplifier using three op-amp stages.
The gain of the instrumentation amplifier is given by:
Gain = (1 + 2 * R1 / Rg) * (Rf / Rin)
For example, if R1 = 10 kΩ, Rg = 1 kΩ, Rf = 100 kΩ, and Rin = 10 kΩ, the gain would be 210.
Audio Applications
LM324 circuits are often used in audio applications, such as preamplifiers, tone controls, and active crossover networks.
Example: Tone Control Circuit
A tone control circuit allows the user to adjust the bass and treble frequencies of an audio signal. The LM324 can be used to implement a simple tone control circuit using a Baxandall network.
The bass and treble levels are adjusted by varying the potentiometer values Rb and Rt, respectively.
Sensor Interfaces
LM324 circuits are frequently used to interface with various sensors, such as temperature sensors, pressure sensors, and light sensors. The op-amps can be used to amplify the sensor output, provide signal conditioning, and convert the signal to a suitable form for further processing.
Example: Temperature Sensor Interface
A temperature sensor, such as the LM35, can be interfaced with an LM324 to provide a linear voltage output proportional to the temperature. The LM324 can be used to amplify the sensor output and provide offset adjustment.
The output voltage of the circuit is given by:
Vout = (1 + Rf / Rin) * (Vsensor – Voffset)
For example, if Rf = 90 kΩ, Rin = 10 kΩ, Vsensor = 250 mV (corresponding to 25°C), and Voffset = 100 mV, the output voltage would be 2.25V.
Frequently Asked Questions (FAQ)
-
Q: What is the main difference between the LM324 and other op-amp ICs?
A: The LM324 is a quad op-amp IC, meaning it contains four independent op-amps in a single package. This makes it more versatile and cost-effective compared to single or dual op-amp ICs. -
Q: Can the LM324 be used with bipolar power supplies?
A: Yes, the LM324 can be used with bipolar power supplies (e.g., ±15V). However, it is also capable of operating from a single power supply, which is one of its key advantages. -
Q: What is the maximum supply voltage for the LM324?
A: The maximum supply voltage for the LM324 is 32V. However, it is essential to ensure that the power dissipation does not exceed the package’s thermal limits. -
Q: How do I select the appropriate resistor and capacitor values for my LM324 circuit?
A: The resistor and capacitor values depend on the specific application and the desired circuit performance. Factors to consider include gain, bandwidth, cutoff frequencies, and impedance matching. It is recommended to use online calculators or design tools to help determine the appropriate values. -
Q: Can the LM324 be used for high-frequency applications?
A: The LM324 has a unity-gain bandwidth of approximately 1 MHz, which limits its use in high-frequency applications. For higher frequencies, it is recommended to use op-amps specifically designed for high-speed operation, such as the LM7171 or the OPA355.
Conclusion
The LM324 is a versatile and widely used quad op-amp IC that finds applications in various analog circuits, including signal conditioning, audio processing, and sensor interfaces. Its key advantages include low cost, single-supply operation, and good performance characteristics.
In this beginner’s guide, we have covered the fundamentals of LM324 circuits, including basic amplifier configurations, active filters, comparators, and Schmitt triggers. We have also explored some practical applications and provided examples to help you get started with designing your own LM324 circuits.
By understanding the principles and techniques discussed in this guide, you will be well-equipped to develop and troubleshoot LM324 circuits for your projects. As with any electronic design, it is essential to follow best practices, such as proper layout, decoupling, and signal integrity, to ensure optimal performance and reliability.
