In the ever-evolving world of electronics, flexibility has become a crucial factor in meeting the design requirements of modern devices. Flexible Printed Circuit Boards (FPCBs), also known as flex circuits or flexible PCBs, are a specialized type of printed circuit board that offer remarkable flexibility and versatility. These circuits have revolutionized the way electronic components are interconnected, enabling compact and innovative designs across various industries.

Table of Contents

  1. Introduction to Flexible PCBs
  2. Advantages of Flexible PCBs
  3. Construction and Materials
    • Base Materials
    • Conductive Layers
    • Coverlays and Adhesives
  4. Types of Flexible PCBs
    • Single-Sided Flex Circuits
    • Double-Sided Flex Circuits
    • Multi-Layer Flex Circuits
    • Rigid-Flex PCBs
  5. Manufacturing Process
    • Design Phase
    • Fabrication Phase
    • Assembly Phase
  6. Applications of Flexible PCBs
    • Consumer Electronics
    • Medical Devices
    • Automotive Industry
    • Aerospace and Defense
    • Wearable Technology
  7. Design Considerations
    • Bend Radius
    • Flex Circuit Stackup
    • Thermal Management
    • Shielding and Grounding
  8. Key Players in the Flexible PCB Industry
  9. Frequently Asked Questions (FAQ)

Introduction to Flexible PCBs

Flexible PCBs are a specialized type of printed circuit board that, as the name suggests, can bend and conform to various shapes and contours. Unlike traditional rigid PCBs, which are flat and inflexible, flexible PCBs are designed to be flexible and bendable, enabling their use in applications where space is limited or where complex shapes are required.

The flexibility of these circuits is achieved through the use of specialized materials and construction techniques. Flexible PCBs typically consist of a flexible base material, such as polyimide or polyester, onto which conductive layers (typically copper) are deposited or laminated. These conductive layers form the circuit traces that interconnect the electronic components.

Advantages of Flexible PCBs

Flexible PCBs offer numerous advantages over their rigid counterparts, making them an attractive choice for many applications. Some of the key benefits include:

  1. Space Optimization: Flexible PCBs can be folded, bent, or shaped to fit into compact spaces, enabling miniaturization and efficient use of available space.
  2. Weight Reduction: Due to their thin and lightweight construction, flexible PCBs can contribute to weight savings, which is particularly important in applications such as aerospace, wearable devices, and portable electronics.
  3. Improved Reliability: Flexible PCBs are more resistant to vibration, shock, and thermal stress compared to rigid PCBs, making them suitable for applications in harsh environments.
  4. Design Flexibility: The ability to bend and conform to various shapes allows for greater design flexibility, enabling unique and innovative product designs.
  5. Ease of Installation: Flexible PCBs can be easily routed and installed in confined spaces, simplifying the assembly process and reducing installation costs.
  6. Dynamic Applications: Flexible PCBs can withstand repeated bending and flexing, making them suitable for applications that involve movement or vibration, such as robotics and wearable devices.

Construction and Materials

Flexible PCBs are constructed using specialized materials and techniques to achieve their unique flexibility and durability. The key components of a flexible PCB include:

Base Materials

The base material, or substrate, is the foundation upon which the conductive layers and other components are built. Common base materials used in flexible PCBs include:

  • Polyimide (PI): Polyimide is a high-performance polymer widely used in flexible PCBs due to its excellent thermal stability, chemical resistance, and mechanical properties. It can withstand high temperatures and harsh environments, making it suitable for demanding applications.
  • Polyester (PET): Polyester is a cost-effective base material option for flexible PCBs. It offers good electrical and mechanical properties, although it may have limitations in terms of temperature resistance and chemical resistance compared to polyimide.
  • Liquid Crystal Polymer (LCP): LCP is a high-performance thermoplastic material known for its low moisture absorption, excellent dimensional stability, and superior electrical properties. It is often used in high-frequency and high-speed applications, such as antennas and RF circuits.

Conductive Layers

The conductive layers in flexible PCBs are responsible for carrying electrical signals and providing interconnections between components. These layers are typically made of copper, although other conductive materials like aluminum or silver may be used in certain applications.

The conductive layers can be deposited or laminated onto the base material using various techniques, such as electrodeposition, sputtering, or adhesive lamination.

Coverlays and Adhesives

Coverlays and adhesives play a crucial role in the construction of flexible PCBs. Coverlays are protective layers applied over the conductive traces to provide insulation and mechanical protection. Common coverlays include polyimide, acrylic, and liquid photoimageable solder mask materials.

Adhesives are used to bond the various layers together, ensuring structural integrity and durability. Commonly used adhesives include acrylic, epoxy, and thermoplastic adhesives.

Types of Flexible PCBs

Flexible PCBs can be categorized into several types based on their construction and the number of conductive layers. The most common types include:

Single-Sided Flex Circuits

Single-sided flex circuits are the simplest form of flexible PCBs, consisting of a single conductive layer on one side of the flexible base material. These circuits are typically used in applications with basic circuit requirements and where space is limited.

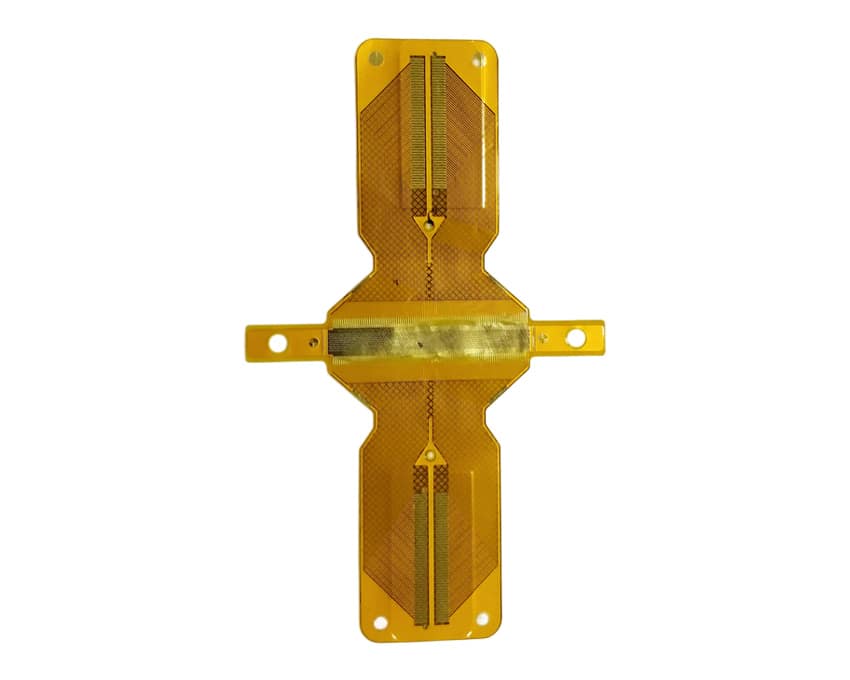

Double-Sided Flex Circuits

Double-sided flex circuits feature conductive layers on both sides of the flexible base material. These circuits offer increased circuit density and routing capabilities compared to single-sided flex circuits. They are commonly used in applications that require higher component integration and complex circuit designs.

Multi-Layer Flex Circuits

Multi-layer flex circuits consist of multiple conductive layers separated by insulating materials, similar to rigid multi-layer PCBs. These circuits offer even higher circuit density and routing capabilities, making them suitable for complex electronic designs and high-speed applications.

Rigid-Flex PCBs

Rigid-flex PCBs are a hybrid combination of rigid and flexible PCB technologies. These boards feature both rigid and flexible sections, allowing for the integration of rigid components and flexible interconnections within a single circuit board. Rigid-flex PCBs are commonly used in applications that require both rigid and flexible sections, such as portable electronics, aerospace, and medical devices.

Type of Flexible PCBDescriptionApplications
Single-Sided Flex CircuitsSingle conductive layer on one side of the flexible base materialBasic circuit requirements, space-constrained applications
Double-Sided Flex CircuitsConductive layers on both sides of the flexible base materialHigher component integration, complex circuit designs
Multi-Layer Flex CircuitsMultiple conductive layers separated by insulating materialsComplex electronic designs, high-speed applications
Rigid-Flex PCBsCombination of rigid and flexible sectionsPortable electronics, aerospace, medical devices

Manufacturing Process

The manufacturing process for flexible PCBs involves several steps and techniques to ensure the desired flexibility, reliability, and performance. The main stages of the manufacturing process include:

Design Phase

  1. Schematic Capture: In this initial step, engineers create a schematic diagram that represents the logical connections and relationships between the electronic components that will be placed on the flexible PCB.
  2. PCB Layout Design: Using specialized CAD (Computer-Aided Design) software, the schematic diagram is translated into a physical layout design for the flexible PCB. This design specifies the placement of components, the routing of traces, and the locations of vias (conductive pathways between layers).
  3. Design Rule Checking (DRC): Before finalizing the flexible PCB design, it undergoes a thorough Design Rule Checking process to ensure compliance with manufacturing specifications, design guidelines, and industry standards specific to flexible PCBs.

Fabrication Phase

  1. Panel Preparation: The flexible base material, such as polyimide or polyester, is prepared in large panels or sheets.
  2. Imaging and Printing: The finalized flexible PCB design is converted into a set of photographic films or digital files, which serve as the blueprint for the fabrication process. These films or files are used to create the necessary patterns on the copper-clad laminates.
  3. Lamination: The copper foil is laminated onto the flexible base material using heat and pressure, creating a copper-clad laminate.
  4. Etching: Using the photographic films or digital files as a guide, the copper layer is selectively etched away, leaving behind the desired circuit patterns on the laminate.
  5. Electroplating: After etching, a thin layer of conductive material, typically copper, is electroplated onto the remaining copper patterns to enhance conductivity and ensure reliable connections.
  6. Drilling and Via Formation: Holes are drilled through the laminate at specific locations to allow for the placement of components and the creation of vias (conductive pathways between layers).
  7. Coverlays and Solder Masking: A coverlay or solder mask is applied to the flexible PCB to protect the copper traces from oxidation and prevent solder bridges during the assembly phase.

Assembly Phase

  1. Component Placement: Electronic components, such as integrated circuits, resistors, capacitors, and connectors, are precisely placed onto the flexible PCB using specialized assembly machines or manual techniques.
  2. Soldering: Once the components are in place, they are securely attached to the flexible PCB through a soldering process, which can be performed using various methods, such as reflow soldering or selective soldering.
  3. Conformal Coating (Optional): In some cases, a protective conformal coating is applied to the assembled flexible PCB to provide additional insulation, moisture resistance, and protection against environmental factors.
  4. Testing and Inspection: The assembled flexible PCBs undergo a series of electrical tests and visual inspections to verify their functionality, identify any defects, and ensure compliance with design specifications.

Applications of Flexible PCBs

Flexible PCBs have found widespread applications across various industries due to their unique properties and advantages. Some of the key applications include:

Consumer Electronics

Flexible PCBs are extensively used in consumer electronics products, such as smartphones, tablets, laptops, and wearable devices. Their compact size, lightweight, and ability to conform to unique shapes make them ideal for these applications. Examples include flexible interconnects in mobile devices, foldable displays, and wearable fitness trackers.

Medical Devices

The medical industry has embraced flexible PCBs for their reliability and ability to withstand harsh environments. They are used in various medical devices, such as implantable devices, patient monitoring equipment, and surgical instruments. Flexible PCBs enable compact and ergonomic designs that improve patient comfort and functionality.

Automotive Industry

The automotive industry has recognized the benefits of flexible PCBs for their weight savings, vibration resistance, and design flexibility. Flexible PCBs are used in various automotive applications, including infotainment systems, advanced driver assistance systems (ADAS), and engine control modules.

Aerospace and Defense

The aerospace and defense sectors demand high-performance and reliable electronic systems. Flexible PCBs are well-suited for these applications due to their ability to withstand extreme temperatures, vibrations, and harsh environments. They are used in aircraft control systems, avionics, and military equipment.

Wearable Technology

The growing trend of wearable technology has driven the demand for flexible PCBs. Their lightweight and conformable nature make them ideal for wearable devices such as smartwatches, fitness trackers, and health monitoring devices. Flexible PCBs enable seamless integration into clothing and accessories, enhancing user comfort and functionality.

Design Considerations

When designing flexible PCBs, several factors must be taken into consideration to ensure optimal performance, reliability, and manufacturability. Some key design considerations include:

Bend Radius

The bend radius is a critical parameter that defines the minimum radius at which a flexible PCB can be bent without causing damage or degradation to the conductive layers and components. Exceeding the recommended bend radius can lead to cracking, delamination, or electrical failures. The bend radius is influenced by factors such as the base material thickness, copper thickness, and the presence of components or stiffeners.

Flex Circuit Stackup

The stackup of a flexible PCB refers to the arrangement and sequence of materials used in its construction, including the base material, conductive layers, and insulating layers. Proper stackup design is crucial for ensuring electrical performance, signal integrity, and mechanical durability. Factors such as impedance control, crosstalk management, and thermal dissipation must be considered when designing the stackup.

Thermal Management

Unlike rigid PCBs, flexible PCBs have limited heat dissipation capabilities due to their thin and lightweight construction. Proper thermal management is essential, especially in applications with high power dissipation or operating in extreme temperature environments. Design techniques such as thermal vias, heat sinks, or special materials may be employed to enhance heat dissipation.

Shielding and Grounding

In applications involving high-frequency signals or electromagnetic interference (EMI), shielding and grounding become important considerations. Flexible PCBs may require shielding layers or grounding planes to prevent signal interference and ensure reliable operation. Proper shielding and grounding techniques should be incorporated into the design to maintain signal integrity and comply with EMI regulations.

Key Players in the Flexible PCB Industry

The flexible PCB industry is highly competitive and comprises numerous companies operating across various regions. Some of the key players in the flexible PCB market include:

  • Zhen Ding Technology Holding Limited
  • Nippon Mektron
  • Sumitomo Electric Industries, Ltd.
  • Multi-Fineline Electronix, Inc. (MFLEX)
  • Fujikura Ltd.
  • Nitto Denko Corporation
  • Flexium Interconnect, Inc.
  • NOK Corporation
  • Ichia Technologies Inc.
  • Interflex Co., Ltd.

These companies offer a wide range of flexible PCB solutions and cater to various industries, including consumer electronics, medical, automotive, aerospace, and defense. Many of these players have established global operations and partnerships to serve customers worldwide.

Frequently Asked Questions (FAQ)

  1. What is the main difference between a flexible PCB and a rigid PCB?

The main difference between a flexible PCB and a rigid PCB lies in their physical properties. Flexible PCBs are designed to be bendable and can conform to various shapes, while rigid PCBs are flat and inflexible. Flexible PCBs are constructed using specialized materials, such as polyimide or polyester, which allow them to be bent and flexed without compromising their electrical and mechanical integrity.

  1. What are the advantages of using flexible PCBs?

Some key advantages of using flexible PCBs include space optimization, weight reduction, improved reliability, design flexibility, ease of installation, and suitability for dynamic applications. Flexible PCBs can be folded, bent, or shaped to fit into compact spaces, enabling miniaturization and efficient use of available space. They are also more resistant to vibration, shock, and thermal stress compared to rigid PCBs.

  1. What are the common applications of flexible PCBs?

Flexible PCBs are widely used in various industries, including consumer electronics (smartphones, tablets, wearables), medical devices (implantable devices, patient monitoring equipment), automotive (infotainment systems, ADAS), aerospace and defense (aircraft control systems, avionics), and wearable technology (smartwatches, fitness trackers).

  1. What are the main types of flexible PCBs?

The main types of flexible PCBs include single-sided flex circuits (with a single conductive layer), double-sided flex circuits (with conductive layers on both sides), multi-layer flex circuits (with multiple conductive layers separated by insulating materials), and rigid-flex PCBs (a combination of rigid and flexible sections).

  1. What are some key design considerations for flexible PCBs?

When designing flexible PCBs, important considerations include bend radius (the minimum radius at which a flexible PCB can be bent without damage), flex circuit stackup (the arrangement and sequence of materials), thermal management (ensuring proper heat dissipation), and shielding and grounding (for applications involving high-frequency signals or electromagnetic interference).

Flexible PCBs have revolutionized the electronics industry by enabling compact, lightweight, and innovative designs across various sectors. As technology continues to evolve, the demand for flexible PCBs
