DIY Digital Analog Converter: The Complete Guide

Introduction to DIY DAC

A Digital Analog Converter (DAC) is an essential component in any audio system that converts digital audio signals into analog signals that can be played through speakers or headphones. Building your own DAC can be a rewarding and cost-effective way to upgrade your audio setup. In this comprehensive guide, we’ll walk you through the process of creating your own DIY DAC, from understanding the basics to assembling the components and fine-tuning your setup.

What is a Digital Analog Converter?

A Digital Analog Converter, or DAC, is a device that converts digital audio data into an analog signal that can be played through speakers or headphones. Digital audio data is stored in binary form, which consists of a series of 1s and 0s. The DAC takes this binary data and converts it into a continuous analog signal that can be amplified and played through speakers or headphones.

Why Build a DIY DAC?

Building your own DAC has several advantages over purchasing a pre-built unit:

1. Cost savings: Building your own DAC can be significantly cheaper than purchasing a high-end commercial unit.
2. Customization: By building your own DAC, you have complete control over the components and design, allowing you to tailor the sound to your preferences.
3. Learning experience: Building a DAC is an excellent way to learn about audio electronics and gain a deeper understanding of how your audio system works.

Understanding the Components of a DAC

Before we dive into the building process, let’s take a closer look at the key components that make up a DAC.

DAC Chip

The heart of any DAC is the DAC chip, which is responsible for converting the digital audio data into an analog signal. There are many different DAC chips available, each with its own unique characteristics and performance capabilities. Some popular DAC chips include:

• TI PCM1794A
• ESS ES9018
• Wolfson WM8741
• Burr-Brown PCM1704

When selecting a DAC chip, consider factors such as the number of channels, bit depth, and sample rate support.

Op-Amp

The op-amp, or operational amplifier, is responsible for amplifying the analog signal from the DAC chip to a level that can drive headphones or speakers. Op-amps come in various types, each with its own unique sound characteristics. Some popular op-amps for audio applications include:

• OPA2134
• NE5532
• LM4562
• AD797

Power Supply

A clean and stable power supply is crucial for optimal DAC performance. There are several options for powering your DAC, including:

• Linear power supply
• Switching power supply
• Battery power

When selecting a power supply, consider factors such as noise, ripple, and voltage regulation.

Other Components

In addition to the DAC chip, op-amp, and power supply, you’ll need various other components to complete your DAC, such as:

• Resistors
• Capacitors
• Inductors
• Connectors
• PCB (Printed Circuit Board)

Designing Your DIY DAC

Now that you have a basic understanding of the components that make up a DAC, it’s time to start designing your own.

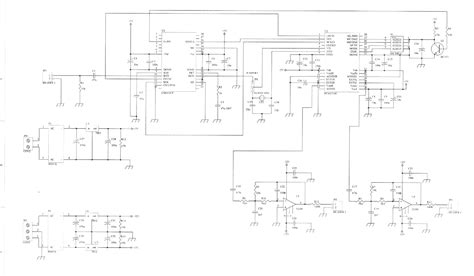

Schematic Design

The first step in designing your DAC is to create a schematic diagram that shows how all the components are connected. There are many free and paid software tools available for schematic design, such as:

• KiCad
• Eagle
• Altium Designer

When designing your schematic, keep in mind the following best practices:

• Use Decoupling Capacitors near the power pins of ICs to minimize noise.
• Use a star ground topology to minimize ground loops.
• Use shielded cables for sensitive analog signals to minimize interference.

PCB Layout

Once you have a complete schematic, the next step is to create a PCB layout. The PCB layout shows the physical placement of components and the routing of traces on the board. When designing your PCB layout, consider the following:

• Component placement: Place components in a logical and organized manner to minimize trace lengths and optimize signal integrity.
• Ground plane: Use a solid ground plane to minimize ground impedance and provide shielding.
• Trace width: Use appropriate trace widths for the current carrying capacity of each signal.
• Trace spacing: Maintain adequate spacing between traces to minimize crosstalk and interference.

Enclosure Design

The final step in the design process is to create an enclosure for your DAC. The enclosure serves several purposes, including:

• Protecting the components from damage.
• Shielding the circuitry from electromagnetic interference (EMI).
• Providing a user interface for controls and connectors.

When designing your enclosure, consider factors such as material choice, ventilation, and ease of assembly.

Building Your DIY DAC

With your design complete, it’s time to start building your DAC.

Gathering Components

The first step is to gather all the necessary components. Use your BOM (Bill of Materials) as a checklist to ensure you have everything you need before you begin.

PCB Assembly

Next, assemble your PCB by soldering the components in place. When soldering, keep the following tips in mind:

• Use a temperature-controlled soldering iron with a fine tip.
• Use high-quality solder with a rosin core.
• Apply heat to both the pad and the component lead simultaneously.
• Avoid bridging adjacent pads with solder.

Wiring and Cabling

Once your PCB is assembled, you’ll need to connect it to the other components in your system, such as the power supply, input, and output connectors. Use high-quality, shielded cables to minimize noise and interference.

Testing and Debugging

Before powering on your DAC for the first time, double-check all your connections and component orientations. Then, power on your DAC and test it with a known good source. If you encounter any issues, use a multimeter or oscilloscope to troubleshoot the problem.

Fine-Tuning Your DIY DAC

Once your DAC is up and running, you can start fine-tuning it to achieve the best possible sound quality.

Burn-In

Many audiophiles believe that electronic components, including DACs, benefit from a “burn-in” period. During burn-in, the components are powered on and left to play music or a test signal for an extended period, typically several days to a week. The idea is that this allows the components to settle and reach their optimal performance.

Upgrading Components

One of the benefits of building your own DAC is the ability to upgrade components over time. As you become more familiar with your DAC and your listening preferences, you may want to experiment with different op-amps, capacitors, or other components to fine-tune the sound.

Room Acoustics

The acoustics of your listening room can have a significant impact on the perceived sound quality of your DAC. Consider using room treatment, such as acoustic panels or diffusers, to optimize the sound in your listening space.

Conclusion

Building your own DAC can be a challenging but rewarding project for any audio enthusiast. By understanding the components, designing your circuit carefully, and taking the time to fine-tune your setup, you can create a high-quality DAC that rivals commercial offerings at a fraction of the cost. Happy building!

Frequently Asked Questions (FAQ)

1. What is the best DAC chip for a DIY project?

The best DAC chip for your project will depend on your specific requirements and budget. Some popular choices include the TI PCM1794A, ESS ES9018, and Wolfson WM8741.

2. Can I use a pre-built power supply for my DIY DAC?

Yes, you can use a pre-built power supply for your DAC, such as a linear power supply or a battery pack. Just make sure it provides the correct voltage and current for your DAC chip and other components.

3. How important is the op-amp in a DAC?

The op-amp plays a critical role in the sound quality of your DAC. It is responsible for amplifying the analog signal from the DAC chip and can have a significant impact on the overall tone and character of the sound.

4. Can I use a Breadboard for my DIY DAC?

While it is possible to prototype your DAC on a breadboard, it is not recommended for the final build. Breadboards can introduce noise and interference that can degrade the sound quality. It is best to use a properly designed PCB for your final DAC.

5. How long does it take to build a DIY DAC?

The time it takes to build a DIY DAC will vary depending on your experience level and the complexity of your design. For a beginner, it can take several weeks to research, design, and assemble a DAC. An experienced builder may be able to complete a project in a weekend.
