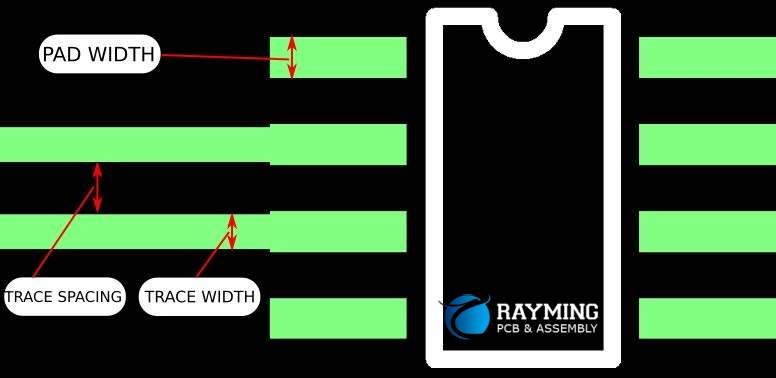

How Do You Calculate Trace Width for PCB?

When designing Printed Circuit Boards (PCBs), one of the critical factors to consider is the appropriate trace width for the copper interconnections. Trace width plays a crucial role in ensuring proper current-carrying capability, signal integrity, and thermal management. Determining the right trace width involves various calculations and considerations, taking into account factors such as current requirements, signal frequencies, and manufacturing constraints. In this comprehensive article, we will explore the methods and formulas used to calculate trace width for PCBs, along with practical examples and guidelines.

Table of Contents

1. Introduction to Trace Width Calculations
2. Current-Carrying Capability and Trace Width
   • 2.1 IPC-2221 Calculation Method
   • 2.2 IPC-2152 Calculation Method
   • 2.3 Example Calculations for Current-Carrying Capability
3. Signal Integrity and Trace Width
   • 3.1 Impedance and Trace Width
   • 3.2 Trace Width and Signal Reflections
   • 3.3 Example Calculations for Signal Integrity
4. Thermal Considerations and Trace Width
   • 4.1 Current Density and Trace Width
   • 4.2 Heat Dissipation and Trace Width
5. Manufacturing Constraints and Trace Width
   • 5.1 Minimum Trace Width
   • 5.2 Maximum Trace Width
6. Trace Width Calculation Tools and Software
7. Frequently Asked Questions (FAQs)

Introduction to Trace Width Calculations

Trace width calculations are essential in PCB design to ensure reliable and efficient operation of electronic circuits. The copper traces on a PCB serve as the interconnections between various components, carrying signals and power throughout the circuit. Choosing the appropriate trace width is critical for several reasons:

1. Current-carrying capability: Wider traces can carry higher currents without excessive heating or voltage drops, which is crucial for power distribution and high-current applications.
2. Signal integrity: Trace width affects the characteristic impedance of the interconnections, which is essential for maintaining signal quality and minimizing reflections in high-speed digital circuits.
3. Thermal management: Traces with higher current densities generate more heat, and proper trace width selection can help dissipate heat efficiently, preventing hotspots and potential component damage.
4. Manufacturing constraints: PCB fabrication processes have limitations on the minimum and maximum trace widths that can be reliably produced, which must be considered during the design phase.

Calculating trace width involves balancing these factors and considering various industry standards and best practices. In the following sections, we will explore the methods and formulas used to determine trace width based on current-carrying capability, signal integrity, thermal considerations, and manufacturing constraints.

Current-Carrying Capability and Trace Width

One of the primary factors influencing trace width is the current-carrying capability required for the circuit. Traces must be wide enough to handle the anticipated current without excessive heating or voltage drops. Two widely used calculation methods for determining trace width based on current-carrying capability are the IPC-2221 and IPC-2152 methods.

IPC-2221 Calculation Method

The IPC-2221 (Association Connecting Electronics Industries) standard provides a calculation method for determining the minimum trace width required to carry a specific current. The formula takes into account factors such as the current, the temperature rise above the ambient temperature, and the copper weight (thickness) of the PCB.

The IPC-2221 formula for calculating the minimum trace width is:

W = k * sqrt(A / (ΔT * 0.048))

Where:

• W is the minimum trace width in inches
• k is a correction factor based on the copper weight (see Table 1)
• A is the cross-sectional area of the trace in circular mils (1 mil = 0.001 inch)
• ΔT is the temperature rise above the ambient temperature in degrees Celsius

Copper Weight (oz/ft²)	k
0.5	0.048
1.0	0.064
2.0	0.094
3.0	0.114

Table 1: Correction factor (k) values for different copper weights.

To use this formula, you need to determine the required cross-sectional area (A) based on the current and the desired temperature rise. The IPC-2221 standard provides tables or equations to calculate the required cross-sectional area based on these parameters.

IPC-2152 Calculation Method

The IPC-2152 (Association Connecting Electronics Industries) standard provides an alternative calculation method for determining the minimum trace width based on current-carrying capability. This method considers the current density (amperes per square mil) as the primary factor.

The IPC-2152 formula for calculating the minimum trace width is:

W = I / (K * 0.0254)

Where:

• W is the minimum trace width in inches
• I is the current in amperes
• K is the current density in amperes per square mil (see Table 2)
• 0.0254 is a conversion factor to convert from mils to inches

Current Density (A/mil²)	Application
0.16	Internal traces, very low current
0.32	External traces, low current
0.48	Internal and external traces, moderate current
0.64	Power distribution traces, high current

Table 2: Current density (K) values for different applications.

The IPC-2152 method is generally considered more conservative than the IPC-2221 method, as it accounts for the current density rather than temperature rise.

Example Calculations for Current-Carrying Capability

Let’s consider an example where we need to determine the minimum trace width for a power trace carrying 5 amperes on a 1-ounce copper PCB, with a maximum temperature rise of 20°C.

Using the IPC-2221 method:

1. Determine the required cross-sectional area (A) from the IPC-2221 tables or equations. For a current of 5 amperes and a temperature rise of 20°C, the required cross-sectional area is approximately 2500 circular mils.
2. Calculate the minimum trace width using the IPC-2221 formula:W = k * sqrt(A / (ΔT * 0.048)) W = 0.064 * sqrt(2500 / (20 * 0.048)) W = 0.064 * 12.91 = 0.826 inchesTherefore, the minimum trace width required for a 5-ampere current on a 1-ounce copper PCB, with a maximum temperature rise of 20°C, is approximately 0.826 inches (20.98 mm) using the IPC-2221 method.

Using the IPC-2152 method:

1. Select the appropriate current density (K) from Table 2. For a power distribution trace carrying a high current, a current density of 0.64 A/mil² can be used.
2. Calculate the minimum trace width using the IPC-2152 formula:W = I / (K * 0.0254) W = 5 / (0.64 * 0.0254) W = 0.309 inchesTherefore, the minimum trace width required for a 5-ampere current, based on the IPC-2152 method with a current density of 0.64 A/mil², is approximately 0.309 inches (7.85 mm).

It’s important to note that these calculations provide a starting point, and additional considerations, such as signal integrity, thermal management, and manufacturing constraints, may require adjustments to the final trace width.

Signal Integrity and Trace Width

In addition to current-carrying capability, trace width plays a crucial role in maintaining signal integrity, especially in high-speed digital circuits. Trace width affects the characteristic impedance of the interconnections, which can impact signal quality and lead to issues such as reflections and signal degradation.

Impedance and Trace Width

The characteristic impedance of a trace is determined by its width, thickness, and the dielectric properties of the PCB material. For a given PCB stack-up and material, the trace width is the primary factor that can be adjusted to achieve the desired impedance.

The formula for calculating the characteristic impedance of a microstrip trace is:

Z0 = (87 / sqrt(εr + 1.41)) * ln(5.98 * h / (0.8 * W + T))

Where:

• Z0 is the characteristic impedance in ohms
• εr is the relative permittivity (dielectric constant) of the PCB material
• h is the height (thickness) of the dielectric material in mils
• W is the trace width in mils
• T is the trace thickness (copper weight) in mils

This formula assumes a microstrip configuration, where the trace is on the outer layer of the PCB, and the reference plane (ground or power plane) is on an adjacent layer.

For high-speed digital signals, such as USB, HDMI, or PCI Express, a controlled impedance of 50 ohms or 100 ohms is typically desired to minimize reflections and signal degradation.

Trace Width and Signal Reflections

When a high-speed signal travels along a trace and encounters an impedance discontinuity, such as a change in trace width or a via transition, a portion of the signal will reflect back towards the source. These reflections can cause signal integrity issues, including ringing, overshoot, and undershoot, which can lead to data errors or electromagnetic interference (EMI) problems.

To minimize signal reflections, it is essential to maintain a consistent trace width throughout the entire signal path, including any bends or corners. Abrupt changes in trace width should be avoided, as they can introduce impedance discontinuities and cause signal reflections.

Example Calculations for Signal Integrity

Let’s consider an example where we need to determine the appropriate trace width for a high-speed digital signal, such as USB 3.0, on a PCB with the following specifications:

• PCB material: FR-4 with a relative permittivity (εr) of 4.2
• Dielectric height (h): 4 mils
• Copper weight (trace thickness, T): 1 ounce (1.4 mils)
• Target impedance: 90 ohms

Using the characteristic impedance formula:

Z0 = (87 / sqrt(εr + 1.41)) * ln(5.98 * h / (0.8 * W + T)) 90 = (87 / sqrt(4.2 + 1.41)) * ln(5.98 * 4 / (0.8 * W + 1.4)) W = 6.45 mils

Therefore, the required trace width for a 90-ohm characteristic impedance on this PCB stack-up is approximately 6.45 mils (0.164 mm).

It’s important to note that these calculations assume a specific PCB stack-up and material properties. If these parameters change, the trace width calculations will need to be adjusted accordingly.

Thermal Considerations and Trace Width

In addition to current-carrying capability and signal integrity, trace width also plays a role in thermal management. Traces carrying high currents generate heat due to resistance, and proper trace width selection can help dissipate this heat efficiently, preventing hotspots and potential component damage.

Current Density and Trace Width

Current density, which is the amount of current per unit cross-sectional area of the trace, is a key factor in determining the heat generated by a trace. Higher current densities result in more heat generation, which can lead to thermal issues if not properly managed.

The formula for calculating current density is:

Current Density (A/mil²) = Current (A) / Cross-sectional Area (mil²)

Where:

• Current Density is expressed in amperes per square mil (A/mil²)
• Current is the amount of current flowing through the trace in amperes (A)
• Cross-sectional Area is the cross-sectional area of the trace in square mils (mil²)

To reduce current density and minimize heat generation, the trace width can be increased, thereby increasing the cross-sectional area of the trace. However, it’s important to balance this with other design considerations, such as signal integrity and manufacturing constraints.

Heat Dissipation and Trace Width

In addition to current density, the ability of a trace to dissipate heat is also influenced by its width. Wider traces have a larger surface area, which can improve heat dissipation through conduction and radiation.

The formula for calculating the heat dissipation of a trace is:

Heat Dissipation (W) = I² * R

Where:

• Heat Dissipation is the amount of heat generated by the trace in watts (W)
• I is the current flowing through the trace in amperes (A)
• R is the resistance of the trace in ohms (Ω)

The resistance of a trace is inversely proportional to its cross-sectional area, which means that wider traces have lower resistance and generate less heat for a given current.

When designing high-current traces or power distribution networks, it is important to consider the heat dissipation capabilities of the traces and ensure proper thermal management through appropriate trace widths, thermal vias, and potential heat sinking or cooling solutions.

Manufacturing Constraints and Trace Width

While calculating trace width based on current-carrying capability, signal integrity, and thermal considerations is essential, it is also crucial to consider the manufacturing constraints and limitations of the PCB fabrication process. PCB manufacturers have specific guidelines and capabilities regarding the minimum and maximum trace widths they can reliably produce.

Minimum Trace Width

PCB fabrication processes have limitations on the minimum trace width that can be reliably produced. These limitations are influenced by factors such as the manufacturing process, the copper weight (thickness), and the PCB material.

Typical minimum trace widths for common PCB manufacturing processes are:

• Standard PCB fabrication: 4 mils (0.1 mm)
• Advanced PCB fabrication: 3 mils (0.076 mm)
• High-density interconnect (HDI) PCBs: 2 mils (0.051 mm)

It’s important to note that these values are general guidelines, and actual minimum trace widths may vary depending on the specific PCB manufacturer and their capabilities.

Maximum Trace Width

While there is typically no hard limit on the maximum trace width that can be produced, excessively wide traces can introduce practical challenges and potential issues:

1. Increased manufacturing complexity: Very wide traces may require special manufacturing processes or additional steps, increasing complexity and cost.
2. Solder bridging: Excessively wide traces can increase the risk of solder bridging, where solder unintentionally connects adjacent pads or traces during assembly.
3. Heat dissipation limitations: While wider traces generally have better heat dissipation capabilities, there is a point of diminishing returns where further increases in trace width provide minimal thermal benefits.
4. Component placement constraints: Extremely wide traces can limit the available space for component placement, leading to routing challenges and potential design rule violations.

Most PCB manufacturers provide guidelines or recommendations for maximum trace widths based on their manufacturing processes and best practices. It’s generally advisable to follow these guidelines and consult with the PCB manufacturer if exceptionally wide traces are required for specific applications.

Trace Width Calculation Tools and Software

While manually calculating trace widths using formulas and tables is possible, it can be time-consuming and prone to errors, especially for complex PCB designs with varying requirements. Fortunately, several software tools and calculators are available to assist in determining appropriate trace widths based on various factors.

1. PCB Design Software: Most professional PCB design software packages, such as Altium Designer, Cadence Allegro, and KiCad, include built-in trace width calculators and design rule checking tools. These tools can automatically calculate trace widths based on user-defined parameters, such as current requirements, target impedances, and manufacturing constraints.
2. Online Calculators: There are various online calculators and tools available that can assist in determining trace widths based on specific formulas and inputs. These calculators often provide a user-friendly interface and can be a convenient option for quick calculations or design exploration.
3. Spreadsheet Calculators: Spreadsheet applications like Microsoft Excel or Google Sheets can be used to create customized trace width calculation tools. Users can implement
