Bed-of-Nails Test in Electrical Testing

What is a Bed-of-Nails Test?

A bed-of-nails test, also known as a bed-of-pins test or a fixture test, is a method used in electrical testing to verify the functionality and connectivity of printed circuit boards (PCBs) and electronic assemblies. This test gets its name from the array of spring-loaded pins or “nails” that make contact with specific points on the device under test (DUT), simulating the connections that would be made by other components or connectors in the final product.

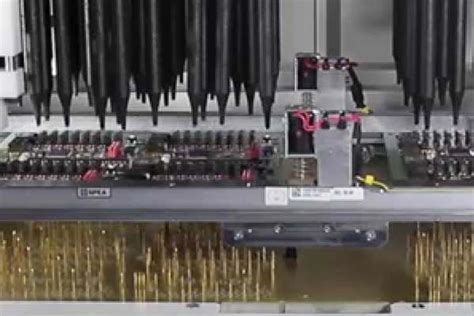

The bed-of-nails test fixture consists of a custom-designed plastic or metal frame that holds the DUT in place, along with the array of pins that make contact with the test points on the PCB. Each pin is connected to a test system, which can include a variety of test instruments such as multimeters, oscilloscopes, and signal generators.

How Does a Bed-of-Nails Test Work?

1. The PCB or electronic assembly is placed onto the bed-of-nails fixture, ensuring proper alignment with the test pins.
2. The fixture is closed, allowing the spring-loaded pins to make contact with the designated test points on the DUT.
3. The test system applies various electrical signals and measurements to the DUT through the pins, verifying the functionality and connectivity of the board.
4. The results of the test are compared to a set of predefined criteria to determine whether the DUT passes or fails the test.

Advantages of Bed-of-Nails Testing

1. High Test Coverage

Bed-of-nails testing allows for a high degree of test coverage, as the pins can be placed at virtually any point on the PCB. This enables thorough testing of all components, traces, and connections on the board, ensuring that any defects or issues are detected early in the manufacturing process.

2. Automated Testing

The bed-of-nails test is typically automated, with the test system controlling the application of electrical signals and the measurement of responses. This automation allows for rapid testing of large numbers of PCBs, reducing the time and labor required for manual testing.

3. Repeatability and Consistency

Because the test pins are fixed in place and the test sequence is automated, bed-of-nails testing provides a high degree of repeatability and consistency. This ensures that all PCBs are tested to the same standard, reducing the likelihood of defective boards reaching the end user.

Disadvantages of Bed-of-Nails Testing

1. Fixture Design and Maintenance

Designing and maintaining bed-of-nails test fixtures can be time-consuming and costly. Each PCB design requires a custom fixture, and any changes to the PCB layout may necessitate modifications to the fixture. Additionally, the test pins can wear out over time, requiring regular maintenance and replacement.

2. Limited Access to Test Points

As PCBs become more complex and densely populated with components, it can be challenging to access all the necessary test points with a bed-of-nails fixture. Some components, such as ball grid array (BGA) devices, may not have exposed test points, making it difficult to test them using this method.

3. Potential for Damage

The spring-loaded pins in a bed-of-nails fixture can exert significant force on the PCB, potentially causing damage to the board or its components if not properly designed and maintained. This risk is particularly high for delicate or high-density PCBs.

Alternative Testing Methods

While bed-of-nails testing is a widely used and effective method for electrical testing, there are alternative approaches that can be used in certain situations:

1. Flying Probe Testing

Flying probe testing uses a set of movable test probes that can be positioned anywhere on the PCB, eliminating the need for a custom fixture. This method is particularly useful for low-volume production or prototype testing, where the cost and time required to develop a bed-of-nails fixture may not be justified.

2. Boundary Scan Testing

Boundary scan testing, also known as JTAG testing, is a method that relies on built-in test circuitry within the components on the PCB. By accessing this circuitry through a standard interface, the test system can verify the functionality and connectivity of the components without the need for physical test points. This method is particularly useful for testing complex, high-density PCBs with limited access to test points.

3. Functional Testing

Functional testing involves testing the PCB or electronic assembly in its final, assembled state, verifying that it performs its intended function correctly. This type of testing can be performed using a variety of methods, such as connecting the DUT to a test system that simulates its operating environment or using automated test equipment (ATE) to apply inputs and measure outputs.

Implementing a Bed-of-Nails Test System

To implement a bed-of-nails test system, follow these steps:

1. Define the test requirements for the PCB or electronic assembly, including the test points, electrical parameters, and pass/fail criteria.
2. Design the bed-of-nails test fixture, considering factors such as pin placement, PCB support, and fixture durability.
3. Fabricate the test fixture, ensuring that all pins are correctly positioned and connected to the test system.
4. Develop the test software, including the test sequence, data acquisition, and analysis routines.
5. Validate the test system, verifying that it accurately and consistently measures the performance of the DUT.
6. Integrate the bed-of-nails test into the manufacturing process, establishing procedures for loading and unloading the DUT, running the test, and handling the results.

Frequently Asked Questions (FAQ)

1. What is the difference between a bed-of-nails test and a flying probe test?

A bed-of-nails test uses a custom fixture with fixed test pins, while a flying probe test uses movable probes that can be positioned anywhere on the PCB. Bed-of-nails testing is better suited for high-volume production, while flying probe testing is more flexible and useful for low-volume or prototype testing.

2. Can bed-of-nails testing be used for all types of PCBs?

While bed-of-nails testing is widely applicable, it may not be suitable for all PCBs. High-density boards or those with components lacking exposed test points (e.g., BGAs) can be challenging to test using this method. In such cases, alternative methods like boundary scan testing may be more appropriate.

3. How often should bed-of-nails test fixtures be maintained?

The maintenance frequency for bed-of-nails test fixtures depends on factors such as the volume of testing, the design of the fixture, and the materials used. Generally, fixtures should be inspected regularly for wear and damage, with pins and other components replaced as needed to ensure consistent and reliable testing.

4. What are the key factors to consider when designing a bed-of-nails test fixture?

When designing a bed-of-nails test fixture, consider the placement of test pins, ensuring that they align with the test points on the PCB. The fixture should also provide adequate support for the PCB to prevent flexing or damage during testing. Durability is another important factor, as the fixture will be subjected to repeated use and stress.

5. How can the results of a bed-of-nails test be used to improve PCB quality?

The results of a bed-of-nails test can be used to identify defects or issues in the PCB design or manufacturing process. By analyzing the test data, engineers can pinpoint the source of the problem and make necessary changes to improve the quality and reliability of the PCBs. This may involve modifications to the PCB layout, component selection, or manufacturing procedures.

Conclusion

Bed-of-nails testing is a widely used and effective method for verifying the functionality and connectivity of PCBs and electronic assemblies. By utilizing a custom fixture with an array of spring-loaded pins, this testing approach provides high test coverage, automation, and repeatability.

However, bed-of-nails testing also has its limitations, such as the need for custom fixture design and maintenance, limited access to certain test points, and the potential for damage to the DUT. In cases where bed-of-nails testing is not suitable, alternative methods like flying probe testing, boundary scan testing, or functional testing may be employed.

Implementing a successful bed-of-nails test system requires careful consideration of test requirements, fixture design, software development, and process integration. By properly designing, validating, and maintaining the test system, manufacturers can ensure the quality and reliability of their PCBs and electronic assemblies, ultimately leading to better products and customer satisfaction.

As PCB technology continues to advance, with increasingly complex and high-density designs, the challenges associated with electrical testing will continue to evolve. By staying informed about the latest testing methods and best practices, engineers and manufacturers can adapt to these challenges and maintain the highest standards of quality and performance in their products.
