Types of Potentiometer: A Complete Guide

What is a Potentiometer?

A potentiometer, often referred to as a “pot,” is a three-terminal variable resistor that allows users to adjust the resistance between two of its terminals by turning a shaft or sliding a control. The third terminal is connected to a fixed point on the resistive element, creating a voltage divider circuit.

How Does a Potentiometer Work?

A potentiometer consists of a resistive element, typically a carbon or cermet track, with a sliding contact called a wiper. As the wiper moves along the resistive element, it changes the resistance between the wiper and the two fixed terminals at either end of the element. This change in resistance can be used to control voltage, current, or other parameters in a circuit.

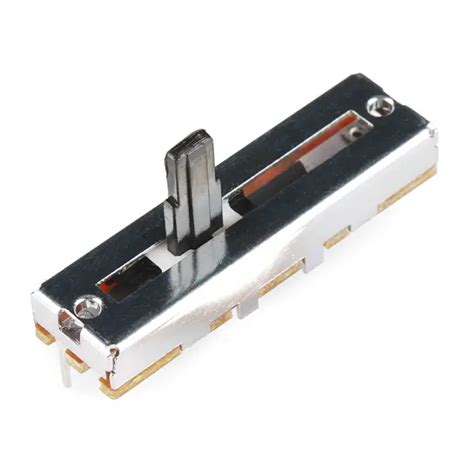

Types of Potentiometers

There are several types of potentiometers, each with its own unique characteristics and applications. The main types include:

1. Carbon Potentiometers

Carbon potentiometers are the most common and affordable type of potentiometer. They feature a carbon-based resistive element and are known for their smooth operation and low noise. However, they have limited precision and are susceptible to wear over time.

Applications:

• Audio equipment (volume controls, tone controls)
• Low-cost consumer electronics
• Non-critical industrial applications

2. Wirewound Potentiometers

Wirewound potentiometers use a resistive element made of a coiled wire, typically nichrome or other alloys. They offer higher precision and power handling capabilities compared to carbon potentiometers but have a higher cost and limited resolution due to the wire’s thickness.

Applications:

• High-power circuits
• Precision measurement devices
• Industrial control systems

3. Cermet Potentiometers

Cermet potentiometers feature a resistive element made of a ceramic and metal mixture. They offer a balance between the affordability of carbon potentiometers and the precision of wirewound potentiometers. Cermet pots have good temperature stability and are more durable than carbon pots.

Applications:

• Professional audio equipment
• Precision instrumentation
• Aerospace and military applications

4. Membrane Potentiometers

Membrane potentiometers are thin, flat devices that use a flexible resistive element printed on a substrate. They are compact, lightweight, and inexpensive, making them ideal for space-constrained applications. However, they have limited precision and are not as durable as other types of potentiometers.

Applications:

• Portable electronic devices
• Automotive controls
• Medical equipment

5. Digital Potentiometers

Digital potentiometers, also known as digipots, are electronically controlled devices that use digital signals to adjust resistance. They offer high precision, excellent temperature stability, and the ability to be controlled remotely. However, they are more expensive than analog potentiometers and require additional circuitry for operation.

Applications:

• Automated test equipment
• Robotics and motion control
• Audio and video signal processing

6. Motorized Potentiometers

Motorized potentiometers combine a standard potentiometer with a small electric motor, allowing for remote or automated control of the potentiometer’s position. They are often used in applications where manual adjustment is impractical or impossible.

Applications:

• Industrial process control
• Automotive systems (e.g., throttle position sensors)
• Robotics and automation

Potentiometer Characteristics

When selecting a potentiometer for a specific application, there are several key characteristics to consider:

1. Resistance Range

Potentiometers are available in a wide range of resistance values, from a few ohms to several megohms. Choose a resistance range that is appropriate for your circuit’s requirements.

2. Taper

Taper refers to the relationship between the potentiometer’s shaft rotation and the change in resistance. The most common tapers are:

• Linear taper: Resistance changes proportionally with shaft rotation
• Logarithmic (audio) taper: Resistance changes logarithmically with shaft rotation, often used in audio applications for volume control

3. Power Rating

The power rating indicates the maximum amount of power a potentiometer can dissipate without damage. Ensure that the selected potentiometer can handle the expected power levels in your circuit.

4. Tolerance

Tolerance refers to the allowable deviation from the specified resistance value. Lower tolerance potentiometers offer higher precision but come at a higher cost.

5. Mechanical Characteristics

Consider the potentiometer’s physical size, mounting style (e.g., panel mount, PCB mount), and shaft type (e.g., knurled, slotted, or D-shaped) to ensure compatibility with your application’s mechanical requirements.

Potentiometer Applications

Potentiometers are used in a wide range of applications across various industries. Some common applications include:

1. Audio Equipment

Potentiometers are extensively used in audio equipment for volume control, tone control, and signal mixing. Audio taper potentiometers are commonly employed to provide a logarithmic response that matches human hearing perception.

2. Sensor Systems

Potentiometers can be used as position sensors, such as in joysticks, throttle controls, and Robotic Arms. They provide a variable resistance that corresponds to the position of the sensor, allowing for accurate position monitoring and control.

3. Instrumentation

In instrumentation applications, potentiometers are used for calibration, offset adjustment, and gain control. Precision wirewound or cermet potentiometers are often employed in these applications to ensure accurate and stable measurements.

4. Motor Speed Control

Potentiometers can be used to control the speed of DC motors by varying the voltage supplied to the motor. This is commonly found in applications such as fan speed control, electric tool speed adjustment, and model train speed regulation.

5. Lighting Control

Potentiometers are used in lighting control systems to adjust the brightness of LED lamps or control the intensity of stage lighting. Logarithmic taper potentiometers are often used in these applications to provide a visually linear response.

Frequently Asked Questions (FAQ)

1. What is the difference between a potentiometer and a rheostat?

A potentiometer has three terminals and is used as a voltage divider, while a rheostat has two terminals and is used as a variable resistor. Rheostats are typically used for high-power applications, such as dimming lights or controlling motor speed.

2. Can a potentiometer be used as a voltage divider?

Yes, a potentiometer is essentially a voltage divider. By connecting the two fixed terminals to a voltage source and the wiper to the load, the output voltage can be varied by adjusting the potentiometer’s position.

3. How do I choose the right taper for my potentiometer?

The choice of taper depends on the application. For audio applications, logarithmic (audio) taper potentiometers are typically used to provide a natural-sounding volume control. For most other applications, linear taper potentiometers are suitable.

4. What is the lifespan of a potentiometer?

The lifespan of a potentiometer depends on factors such as the type of potentiometer, the operating environment, and the frequency of use. Carbon potentiometers typically have a shorter lifespan compared to wirewound or cermet potentiometers due to wear on the carbon track. In general, high-quality potentiometers can last for tens of thousands of cycles or more.

5. Can I replace a potentiometer with a fixed resistor?

In some cases, a potentiometer can be replaced with a fixed resistor if the variable functionality is no longer needed. However, it is essential to choose a resistor value that provides the desired voltage or current in the circuit. If the potentiometer is used for calibration or adjustment purposes, replacing it with a fixed resistor may not be appropriate.

Conclusion

Potentiometers are versatile components that play a crucial role in a wide range of electronic applications. By understanding the different types of potentiometers available and their characteristics, you can select the most suitable device for your specific needs. Whether you are designing audio equipment, sensor systems, or industrial control devices, there is a potentiometer type that can meet your requirements. By considering factors such as resistance range, taper, power rating, and mechanical characteristics, you can ensure optimal performance and reliability in your electronic projects.
