7 Main PCB Colors: How to Select the Best One

What are PCB Colors?

PCB colors refer to the color of the solder mask, which is a protective layer applied to the copper traces on a PCB. The solder mask serves two main purposes:

1. It prevents solder bridges from forming between adjacent traces during the soldering process.
2. It protects the copper traces from oxidation and corrosion.

In addition to its functional role, the solder mask also provides an opportunity to customize the appearance of a PCB. By choosing different colors, designers can create PCBs that are visually appealing and align with their brand identity.

The 7 Main PCB Colors

There are seven main PCB colors that are commonly used in the industry:

1. Green
2. Red
3. Blue
4. Yellow
5. Black
6. White
7. Purple

Let’s take a closer look at each color and its characteristics.

1. Green PCB

Green is the most common PCB color and is considered the industry standard. It is widely used for several reasons:

• Good contrast with white silkscreen, making it easy to read component labels and markings
• Hides dirt and imperfections well
• Provides a professional and classic look

Green PCBs are suitable for a wide range of applications, from consumer electronics to industrial equipment.

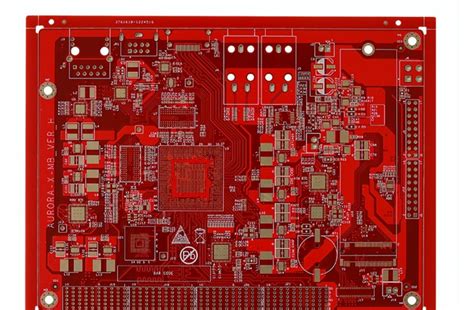

2. Red PCB

Red PCBs are popular for their bold and vibrant appearance. They are often used in applications where visibility is important, such as:

• Automotive electronics
• Medical devices
• Aerospace and defense systems

Red PCBs can also be used to create a striking visual effect in consumer products, such as gaming peripherals or high-end audio equipment.

3. Blue PCB

Blue PCBs offer a cool and modern look, making them a popular choice for consumer electronics. They are often used in:

• Smartphones and tablets
• Laptops and computers
• IoT devices

Blue PCBs can also be used to create a calming or professional appearance in industrial or medical applications.

4. Yellow PCB

Yellow PCBs are less common than other colors but can be used to create a unique and eye-catching look. They are sometimes used in:

• Toys and educational products
• Novelty electronics
• Prototypes and test boards

Yellow PCBs can be challenging to work with, as the color may not provide sufficient contrast with some component markings or silkscreen labels.

5. Black PCB

Black PCBs have a sleek and sophisticated appearance, making them popular for high-end consumer electronics and luxury products. They are often used in:

• Smartwatches and fitness trackers
• Premium smartphones and tablets
• High-end audio equipment

Black PCBs can be more difficult to inspect and debug, as the dark color may obscure some features or imperfections.

6. White PCB

White PCBs have a clean and modern look, making them a popular choice for IoT devices and wearable technology. They are often used in:

• Smart home devices
• Medical wearables
• Automotive interior electronics

White PCBs can be challenging to keep clean during the manufacturing process and may show dirt or imperfections more easily than other colors.

7. Purple PCB

Purple PCBs are relatively rare but can be used to create a unique and memorable look. They are sometimes used in:

• Gaming peripherals
• Novelty electronics
• Limited edition products

Purple PCBs may be more expensive than other colors due to the lower demand and specialized manufacturing processes required.

How to Select the Best PCB Color

When selecting a PCB color for your project, there are several factors to consider:

1. Application: Consider the end-use of your product and choose a color that aligns with its purpose and target audience. For example, a medical device may benefit from a blue or white PCB for a clean and professional look, while a gaming peripheral may opt for a bold red or purple PCB.

2. Branding: If your product has a strong brand identity, choose a PCB color that complements your brand colors and aesthetic. This can help create a cohesive and memorable user experience.

3. Visibility: Some PCB colors, such as black or yellow, may not provide sufficient contrast with component markings or silkscreen labels. If ease of inspection and debugging is a priority, choose a color that offers good visibility, such as green or blue.

4. Manufacturing: Some PCB colors may require specialized manufacturing processes or materials, which can impact lead times and costs. Work with your PCB manufacturer to understand the implications of your color choice and ensure it aligns with your project’s budget and timeline.

5. Environment: Consider the operating environment of your product and choose a PCB color that can withstand the expected conditions. For example, a white PCB may not be ideal for a product that will be exposed to dirt or grease, while a red PCB may fade or discolor if exposed to prolonged sunlight.

PCB Color Selection Table

FAQ

1. Q: Can I mix and match PCB colors in a single product?
   A: Yes, you can use different PCB colors for different boards within a product. However, keep in mind that this may increase manufacturing complexity and costs.

2. Q: Are there any limitations on the number of PCB colors available?
   A: While the seven colors discussed in this article are the most common, some PCB Manufacturers may offer additional colors or even custom color matching. Check with your manufacturer for specific options.

3. Q: Do PCB colors affect the performance of the circuit?
   A: No, the color of the solder mask does not directly impact the electrical performance of the PCB. However, some colors may be more susceptible to fading or discoloration over time, which could affect the appearance of the product.

4. Q: Are there any industry standards or regulations regarding PCB colors?
   A: There are no strict industry standards or regulations dictating PCB colors. However, some industries may have de facto standards or preferences based on common practices or customer expectations.

5. Q: Can I change the PCB color after the board has been manufactured?
   A: No, once the solder mask has been applied and cured, the PCB color cannot be easily changed. If you need to modify the color, you would need to manufacture new boards with the desired color.

Conclusion

PCB colors play an important role in the appearance and branding of electronic products. By understanding the characteristics and applications of the seven main PCB colors, designers can make informed decisions when selecting the best color for their project. Consider factors such as application, branding, visibility, manufacturing, and environment to ensure your PCB color aligns with your project’s goals and constraints. With the right color choice, your PCB can not only function flawlessly but also make a lasting impression on your users.
