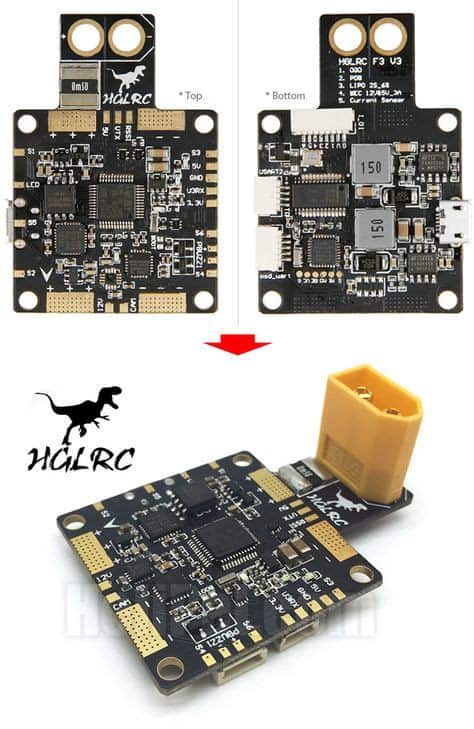

What is a Drone Board?
A drone board, also known as a flight controller, is the central processing unit of a drone. It is responsible for controlling the drone’s movements, managing its sensors, and communicating with the remote control. The drone board receives input from various sensors, such as accelerometers, gyroscopes, and GPS modules, and uses this information to control the drone’s motors and maintain stable flight.
Types of Drone Boards
There are several types of drone boards available on the market, each with its own set of features and capabilities. Some of the most common types of drone boards include:
| Type | Description |
|---|---|
| All-in-one Boards | These boards integrate all the necessary components, such as the flight controller, ESCs, and power distribution, into a single board. They are easy to set up and ideal for beginners. |
| Modular Boards | These boards allow users to customize their drone by adding or removing components as needed. They offer more flexibility but require more technical knowledge to set up. |
| Open-source Boards | These boards are based on open-source hardware and software, allowing users to modify and improve upon the design. They are popular among hobbyists and researchers. |
Core Components of a Custom Drone Board
A custom drone board consists of several core components that work together to enable the drone’s functionality. These components include:
1. Microcontroller
The microcontroller is the brain of the drone board. It is responsible for processing the data from the sensors and controlling the drone’s motors. The most common microcontrollers used in drone boards are based on the ARM architecture, such as the STM32 and the Atmel AVR.
2. Inertial Measurement Unit (IMU)
The IMU is a sensor that measures the drone’s acceleration and angular velocity. It consists of an accelerometer, which measures linear acceleration, and a gyroscope, which measures angular velocity. The IMU provides the drone board with information about the drone’s orientation and movement, allowing it to maintain stable flight.
3. Barometer
The barometer is a sensor that measures air pressure. It is used to determine the drone’s altitude and to maintain a consistent height during flight. The barometer works by measuring the change in air pressure as the drone ascends or descends.
4. GPS Module
The GPS module is used to determine the drone’s location and to enable autonomous flight. It receives signals from GPS satellites and uses this information to calculate the drone’s latitude, longitude, and altitude. The GPS module can also be used to program waypoints for the drone to follow.
5. Electronic Speed Controllers (ESCs)
ESCs are responsible for controlling the speed and direction of the drone’s motors. They receive signals from the drone board and convert them into electrical pulses that drive the motors. Each motor requires its own ESC, and the number of ESCs needed depends on the number of motors on the drone.
6. Radio Receiver
The radio receiver is used to communicate with the drone’s remote control. It receives signals from the remote control and sends them to the drone board for processing. The most common types of radio receivers used in drones are based on the 2.4GHz frequency band.
How the Components Work Together
The core components of a custom drone board work together to enable the drone’s functionality. Here’s a simplified overview of how they interact:
- The IMU and barometer provide the drone board with information about the drone’s orientation, movement, and altitude.
- The GPS module provides the drone board with information about the drone’s location and enables autonomous flight.
- The radio receiver receives signals from the remote control and sends them to the drone board for processing.
- The microcontroller processes the data from the sensors and the remote control and uses it to control the drone’s motors via the ESCs.
- The ESCs convert the signals from the drone board into electrical pulses that drive the motors, allowing the drone to move and maintain stable flight.
Choosing the Right Drone Board
When choosing a custom drone board, there are several factors to consider, such as:
- The size and weight of the drone
- The number and type of sensors needed
- The desired flight capabilities (e.g. autonomous flight, acrobatics, etc.)
- The level of customization and flexibility required
- The budget and technical expertise of the user
Here are some popular drone boards and their key features:
| Board | Key Features |
|---|---|
| Pixhawk | Open-source, modular design, supports a wide range of sensors and peripherals |
| Naze32 | All-in-one design, easy to set up, ideal for beginners |
| CC3D | Open-source, supports a wide range of firmware, ideal for hobbyists |
| DJI Naza-M V2 | Proprietary design, easy to set up, ideal for aerial photography |
Frequently Asked Questions (FAQ)
1. Can I build my own custom drone board?
Yes, it is possible to build your own custom drone board, but it requires a significant amount of technical knowledge and expertise. There are many open-source designs available online, such as the Pixhawk and the ArduPilot, which can be used as a starting point for building your own board.
2. How much does a custom drone board cost?
The cost of a custom drone board varies depending on the components used and the level of customization required. A basic all-in-one board can cost as little as $50, while a high-end modular board with advanced sensors and peripherals can cost several hundred dollars.
3. What is the difference between a drone board and a flight controller?
A drone board and a flight controller are essentially the same thing. The term “drone board” is often used to refer to the entire board, including the microcontroller, sensors, and peripherals, while “flight controller” refers specifically to the microcontroller and its associated software.
4. Can I use a custom drone board for commercial purposes?
Yes, custom drone boards can be used for commercial purposes, such as aerial photography, surveying, and inspection. However, it is important to ensure that the drone complies with all relevant regulations and safety standards.
5. How do I choose the right sensors for my custom drone board?
The choice of sensors depends on the specific application and desired flight capabilities of the drone. Some common sensors used in drone boards include:
- Accelerometer and gyroscope for measuring orientation and movement
- Barometer for measuring altitude
- GPS for determining location and enabling autonomous flight
- Magnetometer for measuring heading and enabling navigation
- Ultrasonic sensors for obstacle avoidance and precision landing
It is important to choose sensors that are compatible with the microcontroller and the firmware being used, and to ensure that they are properly calibrated and integrated with the drone board.
Conclusion
A custom drone board is the core component of any drone, responsible for controlling its movements, managing its sensors, and communicating with the remote control. It consists of several core components, including a microcontroller, IMU, barometer, GPS module, ESCs, and radio receiver, which work together to enable the drone’s functionality.
When choosing a custom drone board, it is important to consider factors such as the size and weight of the drone, the desired flight capabilities, and the level of customization and flexibility required. There are many open-source and proprietary designs available on the market, each with its own set of features and capabilities.
Building a custom drone board requires a significant amount of technical knowledge and expertise, but it can be a rewarding and educational experience for hobbyists and researchers alike. With the right components and firmware, a custom drone board can enable a wide range of applications, from aerial photography to precision agriculture to search and rescue operations.
