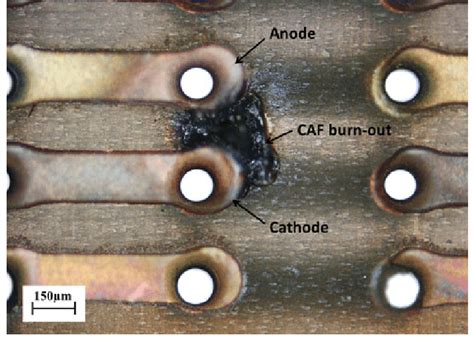

Why Are PCB Test Coupons Important?
PCB test coupons play a crucial role in ensuring the quality and reliability of the final PCB product. By including test coupons in the manufacturing process, PCB fabricators can:
-
Monitor Process Consistency: Test coupons help manufacturers ensure that their production processes remain consistent and within acceptable tolerances. This is especially important when dealing with high-volume production runs or complex PCB designs.
-
Identify Issues Early: By testing the coupons at various stages of the manufacturing process, potential issues can be identified and addressed early on, preventing costly rework or scrap.
-
Verify Material Properties: Test coupons allow manufacturers to verify the properties of the materials used in the PCB, such as the dielectric constant, loss tangent, and copper weight.
-
Comply with Industry Standards: Many industry standards, such as IPC-6012 and IPC-A-600, require the use of test coupons to ensure that PCBs meet the specified quality requirements.
Types of PCB Test Coupons
There are several types of PCB test coupons, each designed to test specific aspects of the manufacturing process. Some of the most common types include:
A. Impedance Test Coupons
Impedance test coupons are used to verify the impedance of the PCB’s controlled impedance traces. These coupons typically include a series of traces with varying widths and spacing, allowing manufacturers to measure the actual impedance values and compare them to the design specifications.
| Trace Width (mil) | Trace Spacing (mil) | Target Impedance (Ω) |
|---|---|---|
| 5 | 10 | 50 |
| 6 | 12 | 45 |
| 7 | 14 | 40 |
B. Solder Mask Test Coupons
Solder mask test coupons are used to evaluate the quality and accuracy of the solder mask application. These coupons include features such as Solder mask dams, solder mask-defined pads, and various aperture sizes to ensure that the solder mask meets the required specifications.
C. Plating Thickness Test Coupons
Plating thickness test coupons are designed to measure the thickness of the copper plating on the PCB. These coupons typically include a series of pads or traces with specific dimensions, allowing manufacturers to use techniques such as X-ray fluorescence (XRF) or cross-sectioning to measure the plating thickness.
| Copper Weight (oz) | Target Thickness (μm) |
|---|---|
| 0.5 | 17.5 |
| 1 | 35 |
| 2 | 70 |
D. Hole Size and Placement Test Coupons
Hole size and placement test coupons are used to verify the accuracy of drilled holes on the PCB. These coupons include a series of holes with varying diameters and pitch, allowing manufacturers to measure the actual hole sizes and positions and compare them to the design specifications.
| Hole Diameter (mm) | Hole Pitch (mm) |
|---|---|
| 0.2 | 0.5 |
| 0.3 | 0.75 |
| 0.4 | 1.0 |
Designing PCB Test Coupons
When designing PCB test coupons, there are several factors to consider to ensure that they provide accurate and reliable results:
-
Coupon Size: Test coupons should be small enough to fit within the available space on the production panel but large enough to accommodate the necessary test features.
-
Feature Placement: Test features should be placed in a manner that minimizes the impact on the production PCBs and allows for easy access during testing.
-
Material Selection: Test coupons should be made from the same materials as the production PCBs to ensure that the results are representative of the actual product.
-
Industry Standards: When applicable, test coupons should be designed in accordance with relevant industry standards, such as IPC-2221 and IPC-7351.
Incorporating Test Coupons into the Manufacturing Process
To effectively use PCB test coupons, manufacturers must incorporate them into their production process. This typically involves the following steps:
-
Panelization: Test coupons are typically placed on the same panel as the production PCBs, either in dedicated areas or in the space between individual boards.
-
Fabrication: The test coupons are fabricated alongside the production PCBs, using the same processes and materials.
-
Testing: At various stages of the manufacturing process, the test coupons are removed from the panel and subjected to the appropriate tests.
-
Documentation: The results of the tests are documented and used to verify that the production PCBs meet the required specifications.
Benefits of Using PCB Test Coupons
Implementing PCB test coupons in the manufacturing process offers several benefits for both PCB manufacturers and their customers:
-
Improved Quality: By regularly monitoring and testing the production process, manufacturers can identify and address issues early on, resulting in higher-quality PCBs.
-
Reduced Costs: Catching problems early in the manufacturing process helps minimize the need for rework or scrap, ultimately reducing production costs.
-
Increased Reliability: PCBs that have been thoroughly tested and verified using test coupons are more likely to perform reliably in their intended applications.
-
Better Communication: Test coupon results provide a common language for manufacturers and customers to discuss PCB performance and quality requirements.
FAQs
1. Are PCB test coupons required for all PCB manufacturing projects?
While not all PCB projects require test coupons, they are strongly recommended for any project that demands high reliability, tight tolerances, or compliance with industry standards. In some cases, customers may specifically request the use of test coupons to ensure that their PCBs meet their quality requirements.
2. How many test coupons should be included on a production panel?
The number of test coupons included on a production panel can vary depending on factors such as the panel size, the complexity of the PCB design, and the specific tests being performed. As a general rule, there should be enough test coupons to provide a representative sample of the production run without significantly impacting the panel utilization.
3. Can test coupons be reused for multiple production runs?
In most cases, test coupons are designed to be single-use items. Once they have been subjected to testing, they are typically discarded. This ensures that each production run is evaluated based on its own merits and that the results are not influenced by previous testing.
4. How do PCB manufacturers choose which types of test coupons to use?
The choice of test coupons depends on several factors, including the specific requirements of the PCB design, the manufacturing processes being used, and the applicable industry standards. Manufacturers will typically work with their customers to determine which types of test coupons are most appropriate for a given project.
5. Can customers request custom test coupons for their PCB projects?
Yes, customers can work with their PCB manufacturers to design custom test coupons that address specific quality or performance concerns. This often involves close collaboration between the customer’s engineering team and the manufacturer’s quality control and fabrication experts to ensure that the test coupons provide the necessary data and insights.
Conclusion
PCB test coupons are an essential tool for ensuring the quality, reliability, and consistency of printed circuit boards. By providing a means to monitor and verify various aspects of the manufacturing process, test coupons help PCB manufacturers identify and address issues early, reduce costs, and improve overall product quality.
As PCB designs continue to become more complex and demanding, the use of test coupons will remain a crucial part of the fabrication process. By working closely with their PCB manufacturers and leveraging the data provided by test coupons, customers can have greater confidence in the performance and reliability of their final products.
