Variable Power Supply: Everything You Need to Know

What is a Variable Power Supply?

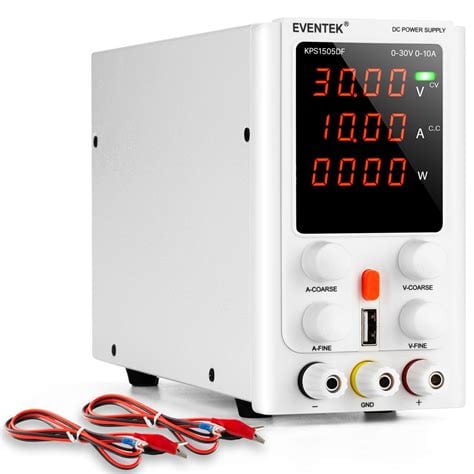

A variable power supply is a type of power supply that allows you to adjust its output voltage and current within a specified range. Unlike fixed power supplies that provide a constant output, a VPS gives you the flexibility to set the desired voltage and current limit according to your project requirements.

Key Components of a Variable Power Supply

A typical variable power supply consists of the following main components:

1. Transformer: Steps down the high-voltage AC input to a lower AC voltage suitable for rectification.
2. Rectifier: Converts the stepped-down AC voltage into pulsating DC voltage.
3. Filter: Smoothens the pulsating DC voltage by reducing the ripple.
4. Voltage Regulator: Maintains a constant output voltage despite fluctuations in the input voltage or load current.
5. Current Limiter: Protects the connected load by limiting the maximum current that can be drawn.
6. Voltage and Current Meters: Displays the output voltage and current for monitoring purposes.

Types of Variable Power Supplies

Variable power supplies come in different types, each with its own characteristics and applications. Let’s explore the most common types:

Linear Variable Power Supplies

Linear VPSs use a transformer, rectifier, and linear voltage regulator to provide a smooth and precise output. They are known for their low noise and ripple, making them suitable for sensitive analog circuits and audio applications. However, linear VPSs tend to be bulky, heavy, and less efficient compared to switching power supplies.

Switching Variable Power Supplies

Switching VPSs employ high-frequency switching techniques to regulate the output voltage. They are more compact, lightweight, and efficient than linear VPSs. Switching VPSs are commonly used in modern electronics due to their higher power density and wide input voltage range. However, they may introduce some high-frequency noise that needs to be filtered out for sensitive applications.

Programmable Variable Power Supplies

Programmable VPSs offer the ability to control and automate the output voltage and current through a computer interface or built-in programming capabilities. They are ideal for automated testing, data logging, and remote control applications. Programmable VPSs often come with features like memory presets, sequencing, and protection functions.

Specifications and Features to Consider

When selecting a variable power supply, it’s important to consider the following specifications and features:

Output Voltage and Current Range

Choose a VPS with an output voltage and current range that covers your project requirements. Consider the maximum voltage and current you need, as well as any specific voltage steps or current resolution required.

Load Regulation and Line Regulation

Load regulation refers to the ability of the VPS to maintain a constant output voltage when the load current changes. Line regulation, on the other hand, is the ability to maintain a constant output voltage when the input voltage varies. Good load and line regulation ensure stable and accurate output under varying conditions.

Ripple and Noise

Ripple and noise refer to the unwanted AC components present in the DC output. Low ripple and noise are crucial for powering sensitive circuits or devices. Look for VPSs with well-designed filters and specified ripple and noise ratings.

Protection Features

Safety is paramount when working with power supplies. Look for VPSs with built-in protection features such as overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP). These features safeguard your connected devices and the power supply itself from damage due to accidental misuse or faults.

Metering and Display

Accurate metering and clear displays are essential for monitoring the output voltage and current. Some VPSs offer digital displays with high resolution and accuracy, while others have analog meters. Consider the readability and precision of the meters based on your application needs.

Remote Sensing

Remote sensing is a feature that compensates for voltage drops in the load cables by measuring the voltage directly at the load terminals. This ensures accurate voltage regulation at the load, especially when using long cables or dealing with high currents.

Programmability and Interfaces

If you require automated control or data logging, look for VPSs with programmable features and appropriate interfaces such as USB, GPIB, or Ethernet. Programmable VPSs allow you to control the output, store and recall settings, and integrate the power supply into automated test systems.

Applications of Variable Power Supplies

Variable power supplies find applications in various fields, including:

1. Electronics Design and Prototyping: VPSs are invaluable for powering and testing electronic circuits during the design and prototyping stages.
2. Laboratory and Research: VPSs are used in research laboratories for powering experimental setups, testing devices, and conducting measurements.
3. Manufacturing and Quality Control: VPSs are employed in production lines for powering and testing manufactured products to ensure they meet specifications.
4. Battery Charging and Testing: VPSs with current limiting capabilities are used for charging and testing various types of batteries.
5. Automotive and Aerospace: VPSs are used in the development and testing of automotive and aerospace electronics, including ECUs, sensors, and communication systems.
6. Audio and Video Equipment: Linear VPSs with low noise and ripple are preferred for powering sensitive audio and video equipment to ensure optimal signal quality.

Safety Precautions and Best Practices

When working with variable power supplies, it’s crucial to follow safety precautions and best practices to prevent accidents and ensure reliable operation:

1. Always read and follow the manufacturer’s instructions and safety guidelines provided with the VPS.
2. Ensure proper grounding of the power supply and connected devices to prevent electric shock hazards.
3. Use appropriate cables and connectors rated for the expected voltage and current levels.
4. Do not exceed the maximum voltage and current ratings specified for the VPS and the connected devices.
5. Avoid touching exposed terminals or connections when the power supply is powered on.
6. Disconnect the power supply from the mains and discharge any capacitors before making any changes to the connections or settings.
7. Use proper ventilation and cooling to prevent overheating of the VPS and connected devices.
8. Regularly inspect the power supply and cables for any signs of damage or wear, and replace them if necessary.

Frequently Asked Questions (FAQ)

1. What is the difference between a variable power supply and a fixed power supply?

A variable power supply allows you to adjust its output voltage and current within a specified range, while a fixed power supply provides a constant output voltage and current that cannot be changed.

2. Can I use a variable power supply to charge batteries?

Yes, a variable power supply with current limiting capability can be used to charge batteries. However, ensure that the voltage and current settings are appropriate for the specific battery type and follow the battery manufacturer’s charging guidelines.

3. How do I choose the right variable power supply for my project?

When selecting a variable power supply, consider factors such as the required voltage and current range, load and line regulation, ripple and noise specifications, protection features, metering accuracy, and any specific features like remote sensing or programmability that your project demands.

4. Can I connect multiple devices to a single variable power supply?

Yes, you can connect multiple devices to a single variable power supply as long as the total current drawn by all the devices does not exceed the maximum current rating of the power supply. However, be cautious of any ground loops or interference that may arise when connecting multiple devices.

5. What should I do if my variable power supply is not providing the expected output voltage or current?

If your variable power supply is not providing the expected output, first check the settings and ensure they are correctly configured. Verify that the connected load is within the power supply’s rated capacity. If the issue persists, refer to the Troubleshooting Guide provided by the manufacturer or seek assistance from a qualified technician.

Conclusion

Variable power supplies are indispensable tools for anyone working with electronics. They provide precise control over voltage and current, enabling you to power and test a wide range of circuits and devices. Understanding the types, specifications, and features of variable power supplies will help you make an informed choice when selecting one for your projects.

Remember to prioritize safety and follow best practices when working with variable power supplies. By doing so, you can harness the full potential of these versatile instruments while minimizing risks.

As you delve deeper into the world of electronics, a reliable and well-chosen variable power supply will be your trusted companion, empowering you to explore, experiment, and innovate with confidence.
