Through-hole Technology in PCB Fabrication

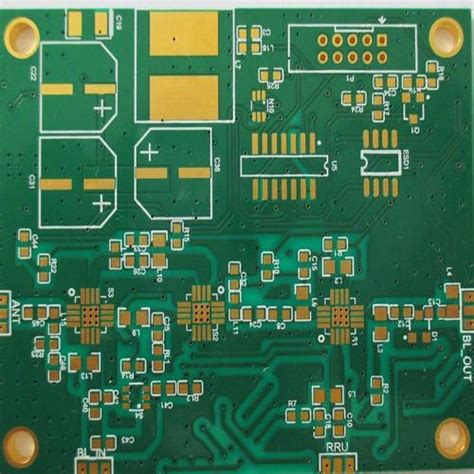

Introduction to Through-hole PCB Technology

Through-hole technology (THT) is a method used in printed circuit board (PCB) fabrication where electronic components are mounted on the board using leads that are inserted into drilled holes and soldered onto copper pads on the opposite side of the board. This technology has been a fundamental part of PCB manufacturing for decades, despite the increasing popularity of surface mount technology (SMT).

Advantages of Through-hole PCB Technology

1. Stronger mechanical bonds: Through-hole components provide a stronger mechanical connection to the PCB compared to SMT components, making them more suitable for applications that require high reliability and durability.
2. Easier manual assembly: Through-hole components are easier to handle and manually solder onto the PCB, making them ideal for prototyping and low-volume production.
3. Better thermal management: The leads of through-hole components extend through the board, allowing for better heat dissipation compared to SMT components.
4. Compatibility with high-power components: Some high-power components, such as transformers and large capacitors, are only available in through-hole packages.

Disadvantages of Through-hole PCB Technology

1. Larger footprint: Through-hole components require more space on the PCB compared to SMT components, limiting the board’s component density.
2. Higher manufacturing costs: Drilling holes and manual soldering of through-hole components increase the manufacturing costs compared to SMT assembly.
3. Limited design flexibility: The need for drilled holes restricts the routing options and layer count of the PCB, limiting design flexibility.
4. Slower assembly process: Manual insertion and soldering of through-hole components are slower than automated SMT assembly processes.

Through-hole PCB Manufacturing Process

The manufacturing process for through-hole PCBs involves several key steps:

1. PCB Design and Layout

The first step in through-hole PCB manufacturing is designing the circuit and creating the PCB layout using electronic design automation (EDA) software. The layout must consider the component placement, hole sizes, and pad dimensions for through-hole components.

2. PCB Fabrication

Once the design is finalized, the PCB fabrication process begins. This involves the following sub-steps:

a. Substrate preparation: The PCB substrate, typically made of FR-4 material, is cut to the required size and shape.
b. Copper cladding: Copper foil is laminated onto the substrate using heat and pressure.
c. Drilling: Holes are drilled into the PCB using CNC machines according to the design specifications.
d. Plating: The drilled holes are plated with copper to create electrical connections between layers and provide a surface for soldering.
e. Etching: Unwanted copper is removed from the board using a chemical etching process, leaving only the desired traces and pads.
f. Solder mask application: A solder mask layer is applied to the board to protect the copper traces and prevent solder bridging.
g. Silkscreen printing: Component labels, logos, and other markings are printed onto the board using silkscreen printing.

3. Component Insertion

After the PCB fabrication is complete, the through-hole components are inserted into the drilled holes. This process can be done manually or using automated insertion machines for high-volume production.

4. Soldering

The inserted components are then soldered onto the PCB. Soldering methods for through-hole PCBs include:

a. Wave soldering: The PCB is passed over a molten solder wave, which solders the components onto the board.
b. Selective soldering: Individual components are soldered using a focused solder fountain or mini-wave.
c. Hand soldering: Components are manually soldered using a soldering iron, typically for prototyping or low-volume production.

5. Inspection and Testing

After soldering, the assembled PCB undergoes visual inspection and electrical testing to ensure proper functionality and adherence to quality standards. Common inspection and testing methods include:

a. Automated optical inspection (AOI): An automated system captures images of the PCB and compares them to a reference to detect soldering defects and component placement issues.
b. X-ray inspection: X-ray imaging is used to inspect solder joints and internal connections that are not visible from the surface.
c. In-circuit testing (ICT): The PCB is connected to a test fixture that checks the functionality of individual components and circuits.
d. Functional testing: The assembled PCB is powered on and tested for overall functionality and performance.

Through-hole PCB Components

Through-hole PCB components come in various packages and sizes. Some common through-hole component packages include:

1. Axial-lead components: These components, such as resistors and diodes, have leads extending from opposite ends of the component body.
2. Radial-lead components: Components like capacitors and inductors have leads extending from the same side of the component body.
3. DIP (Dual Inline Package): Integrated circuits (ICs) with two parallel rows of leads are available in DIP packages.
4. SIP (Single Inline Package): Similar to DIP, but with a single row of leads.
5. Connectors: Various types of connectors, such as pin headers and terminal blocks, are available in through-hole packages.

Through-hole PCB Design Considerations

When designing a through-hole PCB, several factors must be considered to ensure optimal performance and manufacturability:

1. Hole Size and Pad Diameter

The hole size and pad diameter should be selected based on the lead diameter of the through-hole components. The hole size should be slightly larger than the lead diameter to allow for easy insertion and proper soldering. The pad diameter should be large enough to accommodate the hole and provide sufficient space for soldering.

2. Component Spacing

Adequate spacing between components is essential to ensure proper soldering and avoid interference. The spacing should account for the component size, lead length, and soldering requirements.

3. Trace Width and Spacing

The trace width and spacing should be designed according to the PCB’s electrical requirements and manufacturing capabilities. Wider traces can carry higher currents and provide better signal integrity, while narrower traces allow for higher component density.

4. Layer Count and Routing

Through-hole PCBs can have multiple layers to accommodate complex routing and signal requirements. However, the number of layers should be minimized to reduce manufacturing costs. Proper routing techniques, such as avoiding sharp angles and minimizing trace lengths, should be employed to improve signal integrity and manufacturability.

5. Solder Mask and Silkscreen

The solder mask and silkscreen layers should be designed to provide adequate protection and clear labeling for the through-hole components. Solder mask openings should be slightly larger than the pads to ensure proper solder coverage, while silkscreen markings should be legible and aligned with the components.

Comparing Through-hole and Surface Mount Technology

While through-hole technology remains relevant in certain applications, surface mount technology (SMT) has become increasingly popular in PCB manufacturing. Here’s a comparison of the two technologies:

In modern PCB design, it is common to use a combination of through-hole and surface mount components to leverage the advantages of both technologies. This approach, known as mixed technology or hybrid assembly, allows for optimal performance, cost, and manufacturability.

Frequently Asked Questions (FAQ)

1. What is through-hole technology in PCB fabrication?
   Through-hole technology is a method of mounting electronic components on a PCB by inserting their leads through drilled holes and soldering them onto pads on the opposite side of the board.

2. What are the advantages of using through-hole components?
   Through-hole components offer stronger mechanical bonds, easier manual assembly, better thermal management, and compatibility with high-power components compared to surface mount components.

3. What are the disadvantages of through-hole technology?
   Through-hole technology requires more board space, has higher manufacturing costs, limits design flexibility, and has a slower assembly process compared to surface mount technology.

4. What are the common through-hole component packages?
   Common through-hole component packages include axial-lead, radial-lead, DIP (Dual Inline Package), SIP (Single Inline Package), and various types of connectors.

5. Can through-hole and surface mount components be used together on the same PCB?
   Yes, modern PCB designs often use a combination of through-hole and surface mount components, known as mixed technology or hybrid assembly, to leverage the advantages of both technologies.

Conclusion

Through-hole technology remains an essential part of PCB fabrication, offering unique advantages in terms of mechanical strength, thermal management, and compatibility with certain component types. Despite the growing popularity of surface mount technology, through-hole PCBs continue to be used in applications that require high reliability, manual assembly, or the use of high-power components.

Understanding the through-hole PCB manufacturing process, component packages, and design considerations is crucial for engineers and designers working on projects that involve through-hole technology. By carefully considering the advantages and limitations of through-hole PCBs and leveraging mixed technology assembly when appropriate, designers can create efficient, reliable, and cost-effective electronic products.

As PCB manufacturing technologies continue to evolve, it is essential for professionals in the electronics industry to stay informed about the latest advancements and best practices in through-hole and surface mount technologies. This knowledge will enable them to make informed decisions and create innovative solutions that meet the ever-changing demands of the market.
