SMD Component Welding

Introduction to SMD Welding

Surface-mount device (SMD) welding, also known as surface-mount technology (SMT) welding, is a critical process in the manufacturing of electronic devices. SMD components are small, leadless components that are soldered directly onto the surface of a printed circuit board (PCB). This technology has revolutionized the electronics industry by enabling the production of smaller, more compact, and more reliable electronic devices.

Benefits of SMD Welding

1. Miniaturization: SMD components are much smaller than through-hole components, allowing for more compact PCB designs and smaller electronic devices.
2. Increased Functionality: With the ability to place more components on a PCB, SMD welding enables the creation of more complex and feature-rich electronic devices.
3. Improved Reliability: SMD components have shorter leads and are soldered directly to the PCB surface, reducing the risk of mechanical stress and improving overall device reliability.
4. Cost-Effective: SMD welding is a highly automated process, which reduces labor costs and increases production efficiency.

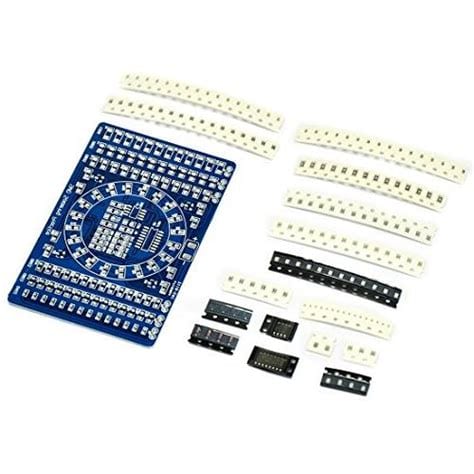

SMD Component Types and Packages

SMD components come in various types and packages, each with its own characteristics and welding requirements. Some common SMD component types include:

Resistors

SMD resistors are available in various package sizes, such as 0402, 0603, 0805, and 1206. The package size refers to the component’s dimensions in inches, with 0402 being the smallest and 1206 being the largest.

Capacitors

SMD capacitors are also available in various package sizes, similar to resistors. Common types of SMD capacitors include ceramic, tantalum, and aluminum electrolytic capacitors.

Inductors

SMD inductors are used for filtering, energy storage, and impedance matching. They are available in various package sizes and inductance values.

Integrated Circuits (ICs)

SMD ICs come in a wide range of packages, such as:

• Small Outline Package (SOP)
• Quad Flat Package (QFP)
• Ball Grid Array (BGA)
• Chip Scale Package (CSP)

Each package type has its own unique characteristics and welding requirements.

SMD Welding Process

The SMD welding process typically involves the following steps:

1. PCB Preparation

Before welding SMD components, the PCB must be cleaned and inspected for any defects. Solder paste is then applied to the PCB pads using a stencil or screen printing process.

2. Component Placement

SMD components are placed onto the PCB using a pick-and-place machine or by hand using tweezers. The components must be accurately positioned on the solder paste-covered pads.

3. Reflow Soldering

The PCB with the placed components is then subjected to a reflow soldering process. The assembly passes through a reflow oven, which heats the solder paste to its melting point, forming a permanent electrical and mechanical connection between the components and the PCB.

A typical reflow soldering temperature profile consists of four stages:

1. Preheat: The assembly is gradually heated to activate the flux and remove any moisture.
2. Thermal Soak: The temperature is maintained to ensure even heat distribution across the PCB.
3. Reflow: The temperature is raised above the solder paste’s melting point, allowing the solder to flow and form a connection.
4. Cooling: The assembly is cooled to solidify the solder joints.

4. Inspection and Testing

After the reflow soldering process, the PCB assembly is inspected for any defects, such as bridging, tombstoning, or insufficient solder joints. Various inspection methods can be used, including visual inspection, automated optical inspection (AOI), and X-ray inspection.

Finally, the assembled PCB undergoes functional testing to ensure that all components are working correctly and the device meets its specified performance requirements.

SMD Welding Equipment

To perform SMD welding effectively, several key pieces of equipment are required:

1. Stencil Printer

A stencil printer is used to apply solder paste to the PCB pads. The stencil is a thin metal sheet with apertures that match the PCB pad layout. Solder paste is dispensed onto the stencil and then transferred to the PCB using a squeegee.

2. Pick-and-Place Machine

A pick-and-place machine is an automated system that places SMD components onto the PCB. These machines use vacuum nozzles to pick up components from feeders and place them accurately on the solder paste-covered pads.

3. Reflow Oven

A reflow oven is used to melt the solder paste and form a permanent connection between the SMD components and the PCB. Reflow ovens can be convection-based, infrared-based, or a combination of both.

4. Inspection Equipment

Various inspection tools are used to ensure the quality of the SMD welding process, such as:

• Microscopes for visual inspection
• AOI machines for automated inspection
• X-ray machines for inspecting hidden solder joints (e.g., BGA packages)

5. Rework and Repair Equipment

In case of defects or repairs, specialized rework and repair equipment is used, such as:

• Soldering irons
• Hot air rework stations
• Desoldering pumps

SMD Welding Challenges and Solutions

SMD welding can present several challenges that must be addressed to ensure a reliable and high-quality soldering process.

1. Tombstoning

Tombstoning occurs when one end of an SMD component lifts off the PCB pad during the reflow soldering process. This can be caused by uneven heating, improper solder paste application, or component misalignment.

To prevent tombstoning, ensure that:

• The PCB pads are designed with the correct dimensions and spacing
• The solder paste is applied evenly and in the correct amount
• The components are placed accurately on the pads
• The reflow temperature profile is optimized

2. Bridging

Bridging occurs when solder inadvertently connects two adjacent pads or components, creating a short circuit.

To prevent bridging, consider:

• Adjusting the solder paste stencil aperture size and shape
• Optimizing the reflow temperature profile
• Ensuring proper component placement and spacing

3. Insufficient or Excessive Solder

Insufficient solder can lead to weak or open connections, while excessive solder can cause bridging or short circuits.

To address these issues:

• Ensure the stencil aperture size and shape are appropriate for the PCB pads
• Optimize the solder paste printing process
• Monitor the reflow temperature profile to ensure proper solder melting and flow

4. Thermal Damage

Excessive heat during the reflow soldering process can damage sensitive SMD components.

To prevent thermal damage:

• Follow the component manufacturer’s recommended reflow temperature profile
• Use thermal shielding for sensitive components
• Minimize the PCB’s exposure to high temperatures

Best Practices for SMD Welding

To achieve optimal SMD welding results, consider the following best practices:

1. Design for Manufacturability (DFM): Ensure that the PCB layout and component selection are optimized for SMD welding. Follow guidelines for pad size, spacing, and component placement.

2. Use high-quality materials: Select high-quality solder paste, stencils, and SMD components to ensure consistent and reliable welding results.

3. Implement process controls: Establish and maintain process controls for solder paste printing, component placement, and reflow soldering to ensure consistency and repeatability.

4. Regularly maintain equipment: Perform regular maintenance on SMD welding equipment, such as stencil printers, pick-and-place machines, and reflow ovens, to ensure optimal performance and minimize defects.

5. Provide operator training: Train operators on SMD welding best practices, equipment operation, and defect identification to ensure a high-quality welding process.

Frequently Asked Questions (FAQ)

1. What is the difference between SMD and through-hole welding?

SMD welding involves soldering components directly onto the surface of a PCB, while through-hole welding involves inserting component leads through holes in the PCB and soldering them on the opposite side.

2. Can SMD components be soldered by hand?

Yes, SMD components can be soldered by hand using a fine-tipped soldering iron and tweezers. However, hand soldering is more time-consuming and less precise than using automated equipment like pick-and-place machines and reflow ovens.

3. What is the purpose of solder paste in SMD welding?

Solder paste is a mixture of tiny solder particles suspended in flux. It is applied to the PCB pads to temporarily hold the SMD components in place and to provide the solder material for the welding process during reflow soldering.

4. How can I prevent tombstoning during SMD welding?

To prevent tombstoning, ensure that the PCB pads are designed correctly, the solder paste is applied evenly, the components are placed accurately, and the reflow temperature profile is optimized.

5. What inspection methods are used to ensure the quality of SMD welding?

Various inspection methods can be used, including visual inspection using microscopes, automated optical inspection (AOI) using cameras and image processing software, and X-ray inspection for hidden solder joints like those in BGA packages.

Conclusion

SMD welding is a crucial process in the production of modern electronic devices. By understanding the different types of SMD components, the welding process, equipment, challenges, and best practices, manufacturers can ensure a high-quality and reliable welding process.

As electronic devices continue to become smaller, more complex, and more integrated, the importance of SMD welding will only continue to grow. By staying up-to-date with the latest technologies, techniques, and best practices, manufacturers can remain competitive and meet the ever-increasing demands of the electronics industry.
