Introduction to PCB Assembly
Printed Circuit Board (PCB) assembly is the process of soldering electronic components onto a PCB to create a functional electronic device. The PCB serves as the foundation for the electronic circuit, providing mechanical support and electrical connections between the various components. Prototype PCB assembly is a crucial step in the development of new electronic products, allowing engineers and designers to test and refine their designs before moving to full-scale production.
The Importance of Prototype PCB Assembly
Prototype PCB assembly is essential for several reasons:
-
Design validation: Assembling a prototype PCB allows engineers to test the functionality and performance of their design in a real-world setting. This helps identify any issues or areas for improvement before finalizing the design.
-
Cost-effective iteration: Prototyping enables designers to make changes and refinements to their PCB design without incurring the high costs associated with full-scale production runs.
-
Proof of concept: A working prototype serves as a tangible demonstration of the product’s feasibility, which can be valuable when seeking funding or approval for further development.
The PCB Assembly Process
The PCB assembly process typically involves the following steps:
1. PCB Design and Fabrication
Before assembly can begin, the PCB must be designed using specialized software such as Altium Designer, Eagle, or KiCad. The design includes the placement of components, routing of traces, and creation of solder pads. Once the design is complete, the PCB is fabricated using a combination of chemical etching, drilling, and plating processes.
2. Solder Paste Application
Solder paste, a mixture of tiny solder particles suspended in flux, is applied to the PCB’s solder pads using a stencil or syringe. The solder paste helps to temporarily hold the components in place during the reflow soldering process.
3. Component Placement
The electronic components are placed onto the PCB, either manually or using automated pick-and-place machines. Precise placement is crucial to ensure proper electrical connections and avoid short circuits.
4. Reflow Soldering
The PCB with the placed components is passed through a reflow oven, which heats the board to a specific temperature profile. This melts the solder paste, creating permanent electrical and mechanical connections between the components and the PCB.
5. Inspection and Testing
After the reflow soldering process, the assembled PCB undergoes visual inspection and electrical testing to ensure proper functionality and identify any defects. Common testing methods include automated optical inspection (AOI), in-circuit testing (ICT), and functional testing.
Prototype PCB Assembly Techniques
There are several techniques used for prototype PCB assembly, each with its own advantages and limitations.

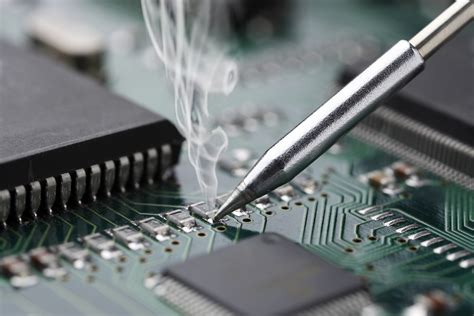

Hand Soldering
For low-volume prototypes or complex designs, hand soldering can be a practical choice. This method involves manually soldering each component onto the PCB using a soldering iron and solder wire. While hand soldering offers flexibility and control, it can be time-consuming and requires a skilled technician.
Reflow Soldering
Reflow soldering is the most common method for prototype PCB assembly, as it offers a good balance of speed, accuracy, and scalability. This technique involves applying solder paste to the PCB, placing components using pick-and-place machines or by hand, and then passing the board through a reflow oven to melt the solder and create connections.
Wave Soldering
Wave soldering is primarily used for through-hole components and is less common in prototype PCB assembly. In this method, the PCB is passed over a molten solder wave, which creates connections between the component leads and the PCB’s plated through-holes. Wave soldering is generally more suited for high-volume production runs.
Choosing the Right Components for Prototype PCB Assembly
Selecting the appropriate components for your prototype PCB is crucial for ensuring the success of your project. Consider the following factors when choosing components:
-
Functionality: Ensure that the chosen components meet the functional requirements of your design, such as voltage ratings, current handling capabilities, and operating frequencies.
-
Availability: When prototyping, it’s essential to choose components that are readily available to avoid delays in the assembly process. Consider lead times and minimum order quantities when selecting components.
-
Package type: Components come in various package types, such as through-hole, surface mount, and ball grid array (BGA). Choose package types that are compatible with your PCB design and assembly process.
-
Cost: While cost is an important consideration, it should be balanced against the other factors mentioned above. In some cases, it may be worth investing in higher-quality components to ensure better performance and reliability.
Tips for Successful Prototype PCB Assembly
To ensure a smooth and successful prototype PCB assembly process, consider the following tips:
-
Design for manufacturability (DFM): Incorporate DFM principles into your PCB design to minimize the risk of assembly issues. This includes maintaining appropriate component spacing, avoiding sharp angles in traces, and providing clear markings for component orientation.
-
Use a reliable PCB fabrication service: Choose a reputable PCB fabrication service with experience in producing high-quality prototypes. Look for a service that offers quick turnaround times and can accommodate your specific design requirements.
-
Work with an experienced assembly partner: Partnering with a skilled and experienced PCB assembly provider can help ensure the success of your prototype. Look for a partner with expertise in your specific industry or application and a track record of delivering high-quality prototypes.
-
Test early and often: Regularly test your prototype throughout the assembly process to identify and address any issues as early as possible. This can help minimize the impact of design or assembly flaws on your project timeline and budget.
Common Challenges in Prototype PCB Assembly
While prototype PCB assembly is a critical step in the product development process, it can also present several challenges. Some common challenges include:
-
Component availability: Sourcing hard-to-find or obsolete components can lead to delays in the assembly process. It’s important to identify potential availability issues early and work with your assembly partner to find suitable alternatives if necessary.
-
Design errors: Errors in the PCB design, such as incorrect component footprints or improperly sized solder pads, can cause assembly issues. Thorough design reviews and adherence to DFM principles can help minimize the risk of design errors.
-
Assembly defects: Prototype PCB assembly can be prone to defects such as solder bridges, cold solder joints, or missing components. Working with an experienced assembly partner and implementing rigorous quality control processes can help reduce the occurrence of assembly defects.
-
Time and cost constraints: Prototype development often operates under tight time and budget constraints. Balancing the need for a high-quality prototype with these constraints can be challenging. Effective project management and clear communication with your assembly partner can help keep your project on track.
The Future of Prototype PCB Assembly
As electronic devices continue to become smaller, more complex, and more prevalent in our daily lives, the demand for efficient and reliable prototype PCB assembly processes will only continue to grow. Several trends and developments are shaping the future of prototype PCB assembly:
-
Increased automation: Advances in automation technology, such as more sophisticated pick-and-place machines and robotic assembly systems, are making prototype PCB assembly faster, more accurate, and more cost-effective.
-
Additive manufacturing: The integration of additive manufacturing techniques, such as 3D printing, into the PCB assembly process is opening up new possibilities for rapid prototyping and customization.
-
Advanced materials: The development of new materials, such as flexible and stretchable PCBs, is enabling the creation of innovative electronic devices with unique form factors and applications.
-
Cloud-based collaboration: Cloud-based design and collaboration tools are making it easier for geographically dispersed teams to work together on prototype development, streamlining the process and reducing time-to-market.
Frequently Asked Questions (FAQ)
1. How long does prototype PCB assembly typically take?
The time required for prototype PCB assembly varies depending on factors such as the complexity of the design, the availability of components, and the chosen assembly method. In general, prototype assembly can take anywhere from a few days to several weeks. Working with an experienced assembly partner and providing clear, accurate design files can help expedite the process.
2. What is the minimum order quantity for prototype PCB assembly?
Minimum order quantities (MOQs) for prototype PCB assembly vary among service providers. Some providers specialize in low-volume prototyping and may have no MOQ, while others may require a minimum order of 5, 10, or more boards. It’s important to discuss your specific needs with potential assembly partners to ensure they can accommodate your requirements.
3. How much does prototype PCB assembly cost?
The cost of prototype PCB assembly depends on several factors, including the size and complexity of the board, the number of components, the chosen assembly method, and the volume of the order. In general, prototype assembly is more expensive per unit than high-volume production due to the lower economies of scale. However, many assembly providers offer competitive pricing for prototype quantities to help make the process more accessible to developers and startups.
4. What files are needed for prototype PCB assembly?
To begin the prototype PCB assembly process, you will typically need to provide your assembly partner with a set of design files. These files may include:
- Gerber files: These files contain the PCB layout information, including the copper layers, solder mask, and silkscreen.
- Drill files: These files specify the location and size of holes to be drilled in the PCB.
- Bill of Materials (BOM): The BOM is a list of all the components required for the assembly, including part numbers, quantities, and reference designators.
- Pick and place files: These files provide the location and orientation information for each component on the PCB.
5. What should I look for in a prototype PCB assembly partner?
When choosing a prototype PCB assembly partner, consider the following factors:
- Experience: Look for a partner with a track record of successfully delivering high-quality prototypes in your industry or application area.
- Capabilities: Ensure that the partner has the necessary equipment, expertise, and processes in place to handle your specific prototype requirements.
- Communication: Choose a partner that values clear, transparent communication and is responsive to your questions and concerns throughout the assembly process.
- Pricing: While cost is an important consideration, it should be balanced against the other factors mentioned above. Look for a partner that offers competitive pricing without compromising on quality or service.
Factor | Importance | Description |
---|---|---|
Experience | High | Look for a partner with a proven track record in your industry or application area. |
Capabilities | High | Ensure the partner has the necessary equipment, expertise, and processes to handle your specific requirements. |
Communication | Medium | Choose a partner that values clear, transparent communication and is responsive to your needs. |
Pricing | Medium | Look for competitive pricing without compromising on quality or service. |
Conclusion
Prototype PCB assembly is a critical step in the development of new electronic products, enabling designers and engineers to test and refine their designs before moving to full-scale production. By understanding the assembly process, choosing the right components and assembly techniques, and working with experienced partners, developers can successfully navigate the challenges of prototype PCB assembly and bring their innovative ideas to life.
As the electronics industry continues to evolve, the future of prototype PCB assembly looks bright, with advances in automation, materials, and collaboration tools driving new possibilities for rapid prototyping and customization. By staying at the forefront of these developments and continually refining their processes, prototype PCB assembly providers will play an increasingly important role in shaping the electronic devices of tomorrow.
