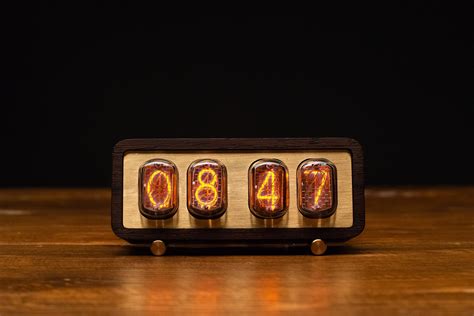

Introduction to Nixie Clocks
Nixie tubes, the iconic cold cathode displays from the 1950s and 60s, have experienced a resurgence in popularity among electronics enthusiasts and retro technology aficionados. These mesmerizing displays, with their warm, orange glow and distinct numerals, have found a special place in the hearts of many makers and hobbyists. One of the most popular projects incorporating Nixie tubes is the Nixie clock, a timepiece that combines the vintage charm of Nixie tubes with modern electronics.
What are Nixie Tubes?
Nixie tubes are gas-filled cold cathode displays that were widely used in electronic equipment before the advent of LED and LCD displays. Each Nixie tube contains a wire-mesh anode and multiple cathodes shaped like numerals or symbols. When a high voltage is applied to one of the cathodes, it ionizes the gas around it, causing it to glow with a warm, orange light.
The Allure of Nixie Clocks
Nixie clocks have gained popularity among electronics enthusiasts for several reasons:
- Nostalgic Appeal: Nixie tubes evoke a sense of nostalgia, reminding us of the early days of electronic displays.
- Unique Aesthetic: The warm, orange glow and the distinct shape of the numerals give Nixie clocks a unique and attractive appearance.
- DIY Friendly: Building a Nixie clock is a challenging yet rewarding project that allows makers to showcase their skills and creativity.
Building a Nixie Clock Without a PCB
While many Nixie clock projects rely on printed circuit boards (PCBs) to simplify the construction process, it is entirely possible to build a Nixie clock without a PCB. This approach offers several advantages, such as greater flexibility in layout and design, and the satisfaction of creating a truly unique timepiece.
Components Required
To build a Nixie clock without a PCB, you will need the following components:
| Component | Quantity | Description |
|---|---|---|
| Nixie Tubes | 4 | IN-14 or IN-12 Nixie tubes |
| Arduino Nano | 1 | Microcontroller to drive the Nixie tubes |
| High Voltage Power Supply | 1 | 170V DC power supply for Nixie tubes |
| Shift Registers | 2 | 74HC595 shift registers for controlling the Nixie tubes |
| Transistors | 4 | MPSA42 high-voltage transistors |
| Resistors | 8 | 10kΩ resistors for current limiting |
| Capacitors | 4 | 0.1μF capacitors for noise suppression |
| Real-Time Clock Module | 1 | DS3231 or similar RTC module |
| Wires and Connectors | As needed | For connecting components |
Circuit Design
The circuit design for a Nixie clock without a PCB involves the following main components:
- Arduino Nano: The microcontroller that controls the Nixie tubes and keeps track of time.
- High Voltage Power Supply: Provides the necessary 170V DC for driving the Nixie tubes.
- Shift Registers: Used to control the individual cathodes of the Nixie tubes.
- Transistors: Act as switches to control the high voltage supplied to the Nixie tubes.
- Real-Time Clock Module: Keeps accurate time and provides a backup power source.
The basic circuit diagram for a Nixie clock without a PCB is as follows:
“`
+—–+
+————| VCC |————+
| +—–+ |
| | |
| +—–+ |
+————| GND |————+
+—–+
|
|
+—–+
| RTC |
+—–+
|
|
+—–+ +—–+ +—-+
| VCC |—+ +—| VCC |—+ +–| HV |
+—–+ | | +—–+ | | +—-+
| | | | | | |
| | | | | | |
+—–+ | | +—–+ | | +—-+
| GND |—+ +—| GND |—+ +–| GN
