What is In-Circuit Test (ICT)?

In-Circuit Test, or ICT, is a widely used method for testing electronic board assemblies. It involves using a bed-of-nails fixture that makes contact with specific test points on the board. The fixture consists of a grid of spring-loaded pins that are carefully aligned with the test points on the board. Once the board is placed on the fixture, the pins make contact with the test points, and the testing process begins.

Advantages of ICT

  1. High Throughput: ICT is known for its high throughput, as it can test multiple points on the board simultaneously. This means that a large number of boards can be tested in a relatively short amount of time, making it ideal for high-volume production.

  2. Comprehensive Testing: ICT can perform a wide range of tests, including component presence, orientation, and value verification, as well as testing for shorts, opens, and other manufacturing defects. This comprehensive testing ensures that the board is functioning as intended and meets the required specifications.

  3. Early Defect Detection: Since ICT is typically performed early in the production process, it can detect defects before the board moves on to the next stage of assembly. This early detection helps reduce the overall cost of manufacturing by preventing defective boards from progressing further down the line.

Disadvantages of ICT

  1. High Setup Cost: One of the main drawbacks of ICT is the high setup cost associated with creating the bed-of-nails fixture. The fixture needs to be custom-designed for each board layout, which can be time-consuming and expensive.

  2. Limited Access: As the density of electronic components on boards continues to increase, it becomes more challenging to access all the necessary test points with a bed-of-nails fixture. Some components may be too small or too close together to allow for proper contact with the test pins.

  3. Potential for Damage: The spring-loaded pins in the bed-of-nails fixture can potentially damage the board or its components if not properly aligned or if excessive force is applied. This risk is particularly high for delicate or miniaturized components.

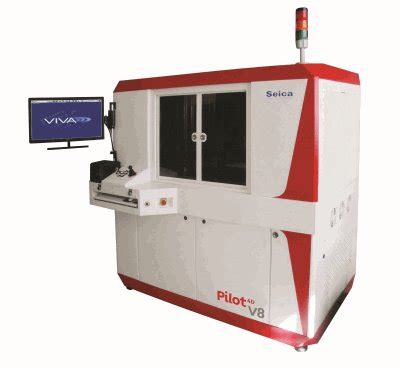

What is Flying Probe Test?

Flying Probe Test is an alternative method for testing electronic board assemblies that addresses some of the limitations of ICT. Instead of using a fixed bed-of-nails fixture, Flying Probe Test employs movable test probes that can be positioned precisely over any point on the board. These probes are mounted on a robotic arm that moves them around the board, making contact with the desired test points.

Advantages of Flying Probe Test

  1. Flexibility: One of the main advantages of Flying Probe Test is its flexibility. Since the test probes can be positioned anywhere on the board, it can easily adapt to different board layouts and component placements. This eliminates the need for custom fixtures and allows for faster setup times.

  2. No Custom Fixtures: Unlike ICT, Flying Probe Test does not require custom bed-of-nails fixtures. This significantly reduces the setup cost and lead time associated with testing new board designs.

  3. Improved Accessibility: Flying Probe Test can access test points that may be difficult or impossible to reach with a bed-of-nails fixture. The movable probes can navigate around tall components and test points located in tight spaces, ensuring thorough coverage of the board.

Disadvantages of Flying Probe Test

  1. Lower Throughput: Since Flying Probe Test moves the probes sequentially from one test point to another, it generally has a lower throughput compared to ICT. Testing a single board can take longer, making it less suitable for high-volume production.

  2. Limited Simultaneous Testing: Flying Probe Test typically has a limited number of probes that can test points simultaneously. This means that it may not be able to perform certain tests that require multiple points to be tested at the same time, such as impedance or capacitance measurements.

  3. Potential for Probe Wear: The constant movement and contact of the flying probes with the board can lead to probe wear over time. This wear can affect the accuracy and reliability of the tests, requiring regular maintenance and replacement of the probes.

Comparison Table: ICT vs. Flying Probe Test

Feature In-Circuit Test (ICT) Flying Probe Test
Test Coverage Comprehensive Comprehensive
Throughput High Lower
Setup Cost High (custom fixtures) Low (no custom fixtures)
Flexibility Limited by fixture High (adaptable)
Accessibility Limited by fixture Improved
Simultaneous Testing Multiple points Limited points
Risk of Damage Potential for damage Lower risk
Suitable Production Volume High volume Low to medium volume

Frequently Asked Questions (FAQ)

  1. Q: Which test method is better for prototyping and low-volume production?
    A: Flying Probe Test is generally better suited for prototyping and low-volume production due to its flexibility and lower setup costs. It allows for quicker testing of new board designs without the need for custom fixtures.

  2. Q: Can ICT and Flying Probe Test be used together?
    A: Yes, ICT and Flying Probe Test can be used together in a complementary manner. ICT can be used for high-volume production and early defect detection, while Flying Probe Test can be used for prototyping, low-volume runs, and testing hard-to-reach points.

  3. Q: How do I choose between ICT and Flying Probe Test for my electronic board assembly?
    A: The choice between ICT and Flying Probe Test depends on several factors, including the complexity of your board design, the production volume, the required test coverage, and your budget. Consider the advantages and disadvantages of each method and consult with a testing expert to determine the best approach for your specific needs.

  4. Q: Are there any other testing methods besides ICT and Flying Probe Test?
    A: Yes, there are other testing methods available, such as boundary scan testing, functional testing, and automated optical inspection (AOI). Each method has its own strengths and weaknesses and may be used in combination with ICT or Flying Probe Test to ensure comprehensive coverage.

  5. Q: How can I ensure the reliability and accuracy of my electronic board testing?
    A: To ensure the reliability and accuracy of your electronic board testing, it is important to follow best practices such as properly maintaining test equipment, regularly calibrating probes and fixtures, and establishing clear testing protocols. Working with experienced testing providers and staying up-to-date with industry standards can also help ensure the quality of your testing process.

Conclusion

In-Circuit Test (ICT) and Flying Probe Test are both valuable methods for testing electronic board assemblies, each with its own strengths and weaknesses. ICT offers high throughput and comprehensive testing but requires custom fixtures and has limited accessibility. Flying Probe Test provides flexibility and improved accessibility but has lower throughput and limited simultaneous testing capabilities.

When deciding between ICT and Flying Probe Test, it is essential to consider factors such as the complexity of your board design, production volume, required test coverage, and budget. In some cases, a combination of both methods may be the best approach to ensure thorough testing and high-quality results.

By understanding the differences between ICT and Flying Probe Test and carefully evaluating your specific needs, you can choose the testing method that is best suited for your electronic board assembly. Implementing a robust testing strategy will help you detect defects early, improve the reliability of your products, and ultimately save time and costs in the long run.
