How to Identify Resistors

Understanding Resistor Identification

Resistors are essential components in electronic circuits, used to control the flow of electric current and regulate voltage levels. Knowing how to accurately identify resistors is crucial for anyone working with electronics, whether you’re a hobbyist, student, or professional. In this comprehensive guide, we’ll explore the various methods and techniques used to identify resistors, including color coding, numerical values, and physical characteristics.

The Importance of Resistor Identification

Accurate resistor identification is essential for several reasons:

1. Ensuring proper circuit functioning
2. Avoiding component damage due to incorrect resistance values
3. Facilitating troubleshooting and repairs
4. Enabling precise circuit design and modification

By mastering the art of resistor identification, you’ll be well-equipped to tackle any electronic project with confidence.

Resistor Color Coding

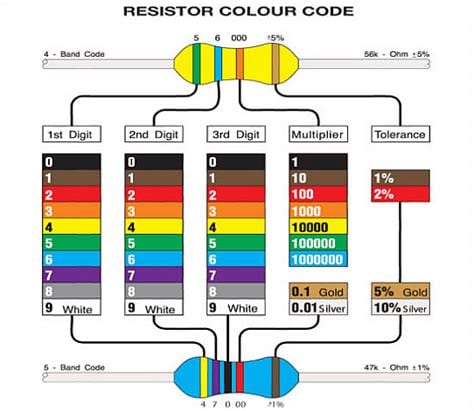

The Color Code System

The most common method for identifying resistors is through the use of color codes. The color code system consists of four or five colored bands printed on the resistor’s body, which indicate the resistor’s resistance value and tolerance.

Four-Band Color Code

In the four-band color code system, the first two bands represent the first two digits of the resistor’s value, the third band indicates the multiplier (number of zeros), and the fourth band represents the tolerance.

For example, a resistor with the color code Yellow, Violet, Orange, Gold would have a value of 47,000 ohms (47 kΩ) with a tolerance of ± 5%.

Five-Band Color Code

The five-band color code system is similar to the four-band system, but with an additional band that represents the resistor’s temperature coefficient (ppm/°C).

For example, a resistor with the color code Red, Yellow, Violet, Orange, Brown would have a value of 247,000 ohms (247 kΩ) with a tolerance of ± 1%.

Reading Color Codes

To read a resistor’s color code:

1. Orient the resistor so that the tolerance band (usually gold or silver) is on the right.
2. Read the color bands from left to right.
3. Use the color code chart to determine the values represented by each color.
4. Combine the values to determine the resistor’s resistance and tolerance.

Numerical Value Identification

Printed Numerical Values

Some resistors, particularly surface-mount devices (SMDs), have their resistance values printed directly on the component body. These values are typically expressed in ohms (Ω), kilohms (kΩ), or megohms (MΩ).

For example, a resistor with “4.7K” printed on its body has a resistance of 4.7 kilohms (4,700 ohms).

E-Series Standard Values

Resistors are manufactured in standard values according to the E-series, which defines preferred resistance values. The most common E-series include:

• E6 (20% tolerance): 10, 15, 22, 33, 47, 68
• E12 (10% tolerance): 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82
• E24 (5% tolerance): 10, 11, 12, 13, 15, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 43, 47, 51, 56, 62, 68, 75, 82, 91
• E48 (2% tolerance): 100, 105, 110, 115, 121, 127, 133, 140, 147, 154, 162, 169, 178, 187, 196, 205, 215, 226, 237, 249, 261, 274, 287, 301, 316, 332, 348, 365, 383, 402, 422, 442, 464, 487, 511, 536, 562, 590, 619, 649, 681, 715, 750, 787, 825, 866, 909, 953
• E96 (1% tolerance): 100, 102, 105, 107, 110, 113, 115, 118, 121, 124, 127, 130, 133, 137, 140, 143, 147, 150, 154, 158, 162, 165, 169, 174, 178, 182, 187, 191, 196, 200, 205, 210, 215, 221, 226, 232, 237, 243, 249, 255, 261, 267, 274, 280, 287, 294, 301, 309, 316, 324, 332, 340, 348, 357, 365, 374, 383, 392, 402, 412, 422, 432, 442, 453, 464, 475, 487, 499, 511, 523, 536, 549, 562, 576, 590, 604, 619, 634, 649, 665, 681, 698, 715, 732, 750, 768, 787, 806, 825, 845, 866, 887, 909, 931, 953, 976

Understanding these standard values can help you identify resistors based on their numerical markings.

Physical Characteristics

Size and Package Type

Resistors come in various sizes and package types, which can provide clues to their identity and application. Some common package types include:

• Through-hole (axial and radial leads)
• Surface-mount (SMD)
• 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512

Larger resistors generally have higher power ratings and can dissipate more heat.

Power Rating

A resistor’s power rating indicates the maximum amount of power it can safely dissipate without damage. Common power ratings include:

• 1/8 W
• 1/4 W
• 1/2 W
• 1 W
• 2 W
• 5 W

The power rating is often related to the resistor’s size, with larger resistors typically having higher power ratings.

Composition and Construction

Resistors can be made from various materials and constructed using different methods, which can affect their performance and application. Some common resistor types include:

• Carbon composition
• Carbon film
• Metal film
• Wirewound
• Thick film
• Thin film
• Foil

Understanding the characteristics and benefits of each type can help you select the most appropriate resistor for your project.

Frequently Asked Questions (FAQ)

1. Q: What do I do if a resistor doesn’t have a color code or numerical value printed on it?
   A: If a resistor lacks identifying markings, you can use a multimeter to measure its resistance directly. Set the multimeter to the appropriate resistance range, and connect the probes to the resistor’s leads. The multimeter will display the measured resistance value.

2. Q: Can I use a resistor with a different tolerance than the one specified in my project?
   A: In most cases, using a resistor with a tighter tolerance than specified is acceptable and will not adversely affect circuit performance. However, using a resistor with a looser tolerance than required may lead to inaccurate or inconsistent results. It’s generally best to use resistors with the specified tolerance or better.

3. Q: What happens if I use a resistor with the wrong power rating?
   A: Using a resistor with a power rating lower than required can cause the resistor to overheat and fail prematurely. This can lead to circuit malfunction and potentially damage other components. Always use resistors with power ratings equal to or greater than the expected power dissipation in your circuit.

4. Q: Are there any tools that can help me identify resistors more easily?
   A: Yes, there are several tools available to assist with resistor identification. Some popular options include:

5. Color code calculators (online and mobile apps)
6. Resistance value charts and reference guides
7. Multimeters with built-in resistance measurement functions

8. Smartphone apps that use the camera to read color codes or numerical values

9. Q: How do I identify the polarity of a resistor?
   A: Unlike some other electronic components, such as diodes and electrolytic capacitors, resistors do not have polarity. They can be connected in either direction within a circuit without affecting their performance or the circuit’s functionality.

By understanding the various methods and techniques for resistor identification, you’ll be well-prepared to tackle any electronic project with confidence. Whether you’re working with through-hole or surface-mount components, color codes, or numerical values, this comprehensive guide will serve as a valuable reference for your resistor identification needs.
